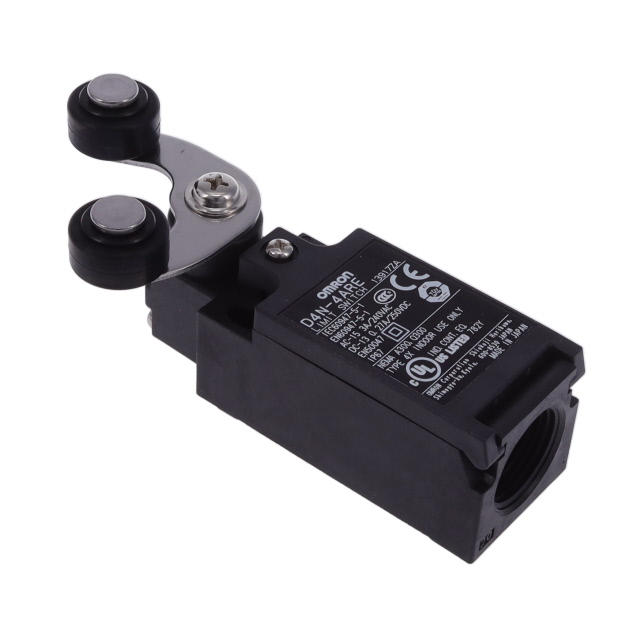

D4N-4AR Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
SWITCH SNAP ACTION DPST 3A 240V
| Part | Ingress Protection | Mounting Type | Termination Style | Voltage Rating - DC | Current Rating (Amps) | Voltage Rating - AC | Operating Position | Switch Function | Mechanical Life | Features | Electrical Life | Operating Temperature [Max] | Operating Temperature [Min] | Circuit | Actuator Type | Operating Force |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | IP67 - Dust Tight Waterproof | Chassis Mount | Screw Terminal | 250 V | 3 A 270 mA | 240 V | 6.5 ° | Off-Mom On-Mom | 10000000 Cycles | Right Operation Rubber Rollers | 300000 Cycles | 70 °C | -30 ░C | DPST-NO/NC | Side Rotary Fork Lever Lock (Yoke) | 653 gf |
