5076C Series
Manufacturer: ALPHA WIRE
Beta
⌘K

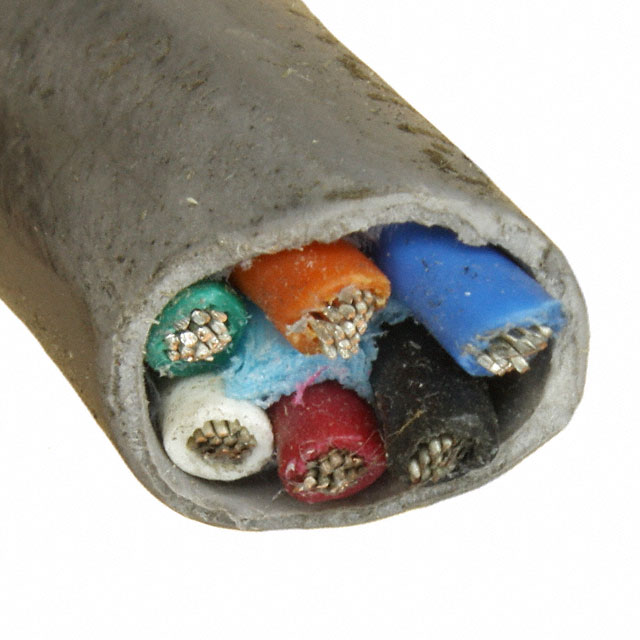

CBL 6COND 16AWG SLATE 1000=1000'
| Part | Features | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Cable Type | Jacket Color | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Wire Gauge | Voltage | Operating Temperature [Min] | Operating Temperature [Max] | Usage | Conductor Strand [custom] | Conductor Strand [diameter] | Ratings | Conductor Material | Jacket (Insulation) Material | Conductor Insulation | Number of Conductors | Length | Length | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Biological Compatibility Rip Cord | 8.71 mm | 0.343 in | Multi-Conductor | Slate | 0.813 mm | 0.032 in | 16 AWG | 300 VDC | -35 °C | 105 ░C | Communication Control | 19 | 0.0117 in | ISO 10993 UL Style 2464 | Copper Tinned | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) | 6 | ||||
ALPHA WIRE | Biological Compatibility Rip Cord | 8.71 mm | 0.343 in | Multi-Conductor | Slate | 0.813 mm | 0.032 in | 16 AWG | 300 VDC | -35 °C | 105 ░C | Communication Control | 19 | 0.0117 in | ISO 10993 UL Style 2464 | Copper Tinned | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) | 6 | 152.4 m | 500 ft | ||
ALPHA WIRE | Biological Compatibility Rip Cord | 8.71 mm | 0.343 in | Multi-Conductor | Slate | 0.813 mm | 0.032 in | 16 AWG | 300 VDC | -35 °C | 105 ░C | Communication Control | 19 | 0.0117 in | ISO 10993 UL Style 2464 | Copper Tinned | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) | 6 | 100 ft | 30.5 m |
