75000 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

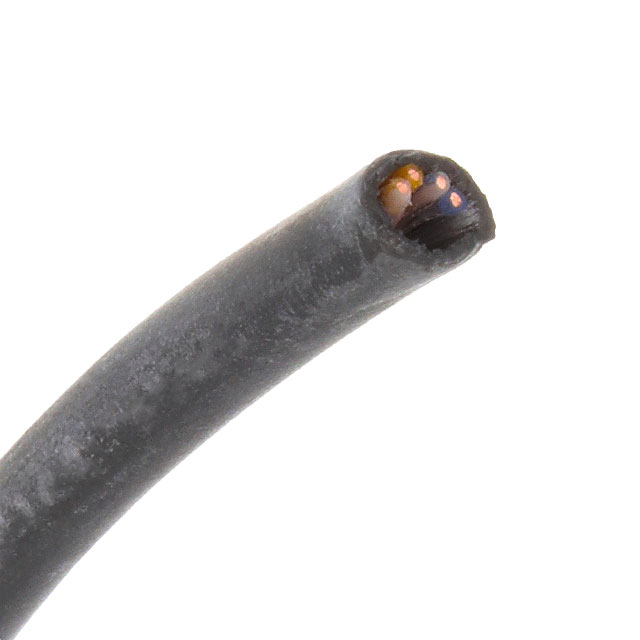

CABLE CAT5E 4COND 24AWG BLK 500'
| Part | Wire Gauge | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Length | Length | Operating Temperature [Min] | Operating Temperature [Max] | Features | Jacket Color | Jacket (Insulation) Material | Usage | Conductor Insulation | Conductor Strand | Number of Conductors | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Ratings | Cable Type | Conductor Material | Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 24 AWG | 6.53 mm | 0.257 in | 152.4 m | 500 ft | -50 °C | 105 ░C | Biological Compatibility Rip Cord | Black | Thermoplastic Elastomer (TPE) | Communication | Fluorinated Ethylene-Propylene (FEP) | Solid | 4 | 0.035 in | 0.889 mm | ISO 10993 | Multi-Pair Cat5e | Copper Bare | 300 VDC |
