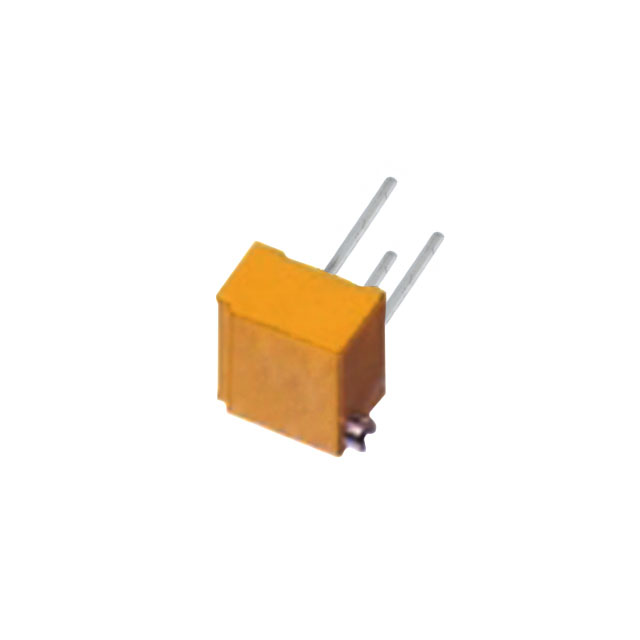

RJ5EP Series

Manufacturer: Nidec Components Corporation

Catalog

TRIMMER 10 OHM 0.25W PC PIN SIDE

Part	Tolerance	Adjustment Type	Power (Watts)	Power (Watts)	Resistance	Temperature Coefficient	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Resistive Material	Termination Style	Number of Turns	Mounting Type
Nidec Components Corporation RJ-5EP100	10 %	Side Adjustment	0.25 W	0.25 W	10 Ohms	250 ppm/°C	6.4 mm	0.252 "	6.75 mm	0.266 "	Cermet	PC Pins	14	Through Hole
Nidec Components Corporation RJ-5EP503	10 %	Side Adjustment	0.25 W	0.25 W	50000 Ohms	100 ppm/°C	6.4 mm	0.252 "	6.75 mm	0.266 "	Cermet	PC Pins	14	Through Hole
Nidec Components Corporation RJ-5EP104	10 %	Side Adjustment	0.25 W	0.25 W	100 kOhms	100 ppm/°C	6.4 mm	0.252 "	6.75 mm	0.266 "	Cermet	PC Pins	14	Through Hole
Nidec Components Corporation RJ-5EP103	10 %	Side Adjustment	0.25 W	0.25 W	10000 Ohms	100 ppm/°C	6.4 mm	0.252 "	6.75 mm	0.266 "	Cermet	PC Pins	14	Through Hole
Nidec Components Corporation RJ-5EP205	10 %	Side Adjustment	0.25 W	0.25 W	2 MOhms	100 ppm/°C	6.4 mm	0.252 "	6.75 mm	0.266 "	Cermet	PC Pins	14	Through Hole
Nidec Components Corporation RJ-5EP201	10 %	Side Adjustment	0.25 W	0.25 W	200 Ohms	100 ppm/°C	6.4 mm	0.252 "	6.75 mm	0.266 "	Cermet	PC Pins	14	Through Hole
Nidec Components Corporation RJ-5EP203	10 %	Side Adjustment	0.25 W	0.25 W	20 kOhms	100 ppm/°C	6.4 mm	0.252 "	6.75 mm	0.266 "	Cermet	PC Pins	14	Through Hole
Nidec Components Corporation RJ-5EP500	10 %	Side Adjustment	0.25 W	0.25 W	50 Ohms	250 ppm/°C	6.4 mm	0.252 "	6.75 mm	0.266 "	Cermet	PC Pins	14	Through Hole
Nidec Components Corporation RJ-5EP102	10 %	Side Adjustment	0.25 W	0.25 W	1000 Ohms	100 ppm/°C	6.4 mm	0.252 "	6.75 mm	0.266 "	Cermet	PC Pins	14	Through Hole
Nidec Components Corporation RJ-5EP502	10 %	Side Adjustment	0.25 W	0.25 W	5 kOhms	100 ppm/°C	6.4 mm	0.252 "	6.75 mm	0.266 "	Cermet	PC Pins	14	Through Hole
