8200 Series

Terminals 22-18AWG VINYL JACK

Manufacturer: Keystone Electronics

Catalog

Terminals 22-18AWG VINYL JACK

Catalog

Terminals 22-18AWG VINYL JACK

Part	Color	Terminal Type	Tab Thickness	Tab Thickness	Wire Gauge [Min]	Wire Gauge [Max]	Gender	Length - Overall [x]	Length - Overall [x]	Tab Width [x]	Tab Width [x]	Mounting Type	Insulation	Contact Finish	Termination	Contact Material	Length - Ring Center to Termination [custom]	Length - Ring Center to Termination [custom]	Insulation Diameter	Insulation Diameter	Length - Termination [x]	Length - Termination [x]	Material - Insulation	Stud/Tab Size	Width - Outer Edges [x]	Width - Outer Edges [x]	Insulation Diameter [diameter]	Insulation Diameter [diameter]

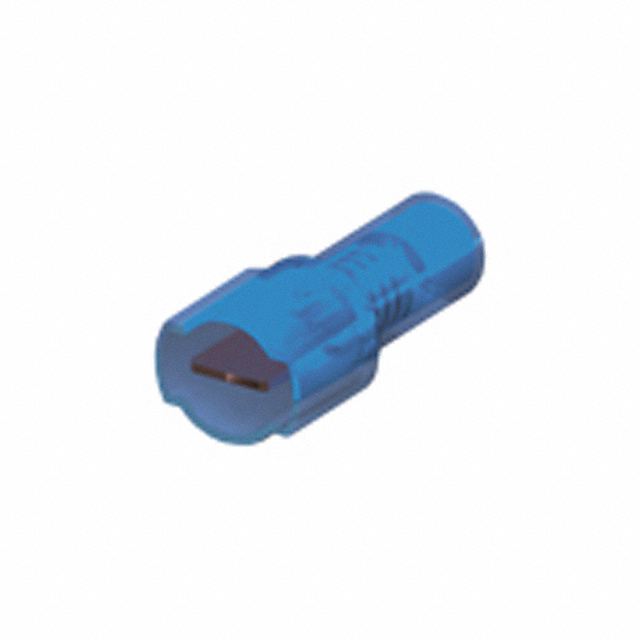

Keystone Electronics 8298	Blue	Standard	0.02 in	0.51 mm	14 AWG	16 AWG	Male	0.87 in	22.1 mm	0.187 in	4.75 mm	Free Hanging (In-Line)	Fully Insulated	Tin	Crimp	Copper

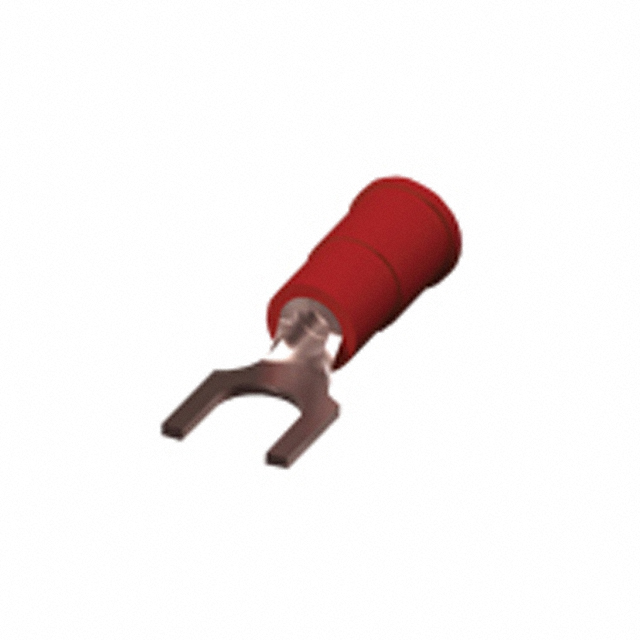

Keystone Electronics 8228	Red	Standard			17.5 AWG	22 AWG		0.85 in	21.59 mm			Free Hanging (In-Line)	Insulated	Tin	Crimp	Copper ETP	6.35 mm	0.25 "	0.145 in	3.68 mm	0.25 in	6.35 mm	Vinyl	8 Stud
Keystone Electronics 8263	Red	Snap Spring			17.5 AWG	22 AWG		0.7 in	17.78 mm			Free Hanging (In-Line)	Insulated	Tin	Crimp	Copper ETP								6 Stud	6.35 mm	0.25 "

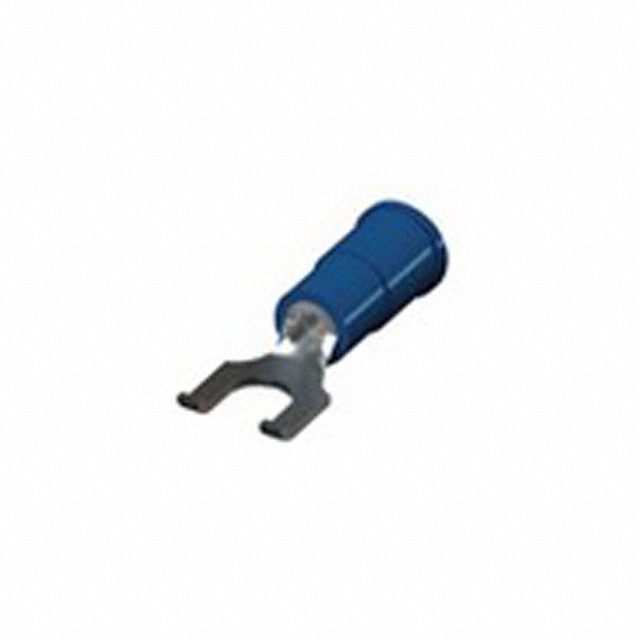

Keystone Electronics 8250	Blue	Flanged			14 AWG	16 AWG		0.85 in	21.59 mm			Free Hanging (In-Line)	Insulated	Tin	Crimp	Copper ETP	6.35 mm	0.25 "			0.25 in	6.35 mm	Vinyl	10 Stud			0.175 in	4.45 mm

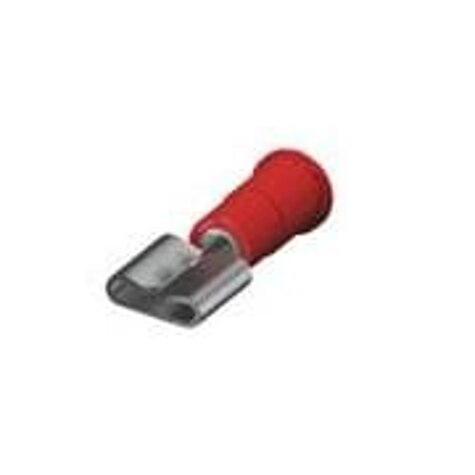

Keystone Electronics 8277	Red	Standard	0.032 in	0.81 mm	17.5 AWG	22 AWG	Female	0.87 in	22.1 mm	0.25 in	6.35 mm	Free Hanging (In-Line)	Non-Mating End Insulated	Tin	Crimp	Copper
Keystone Electronics 8231	Blue	Standard			14 AWG	16 AWG		0.7 in	17.78 mm			Free Hanging (In-Line)	Insulated	Tin	Crimp	Copper ETP	6.35 mm	0.25 "			0.45 in	11.43 mm	Vinyl	8 Stud			0.175 in	4.45 mm
