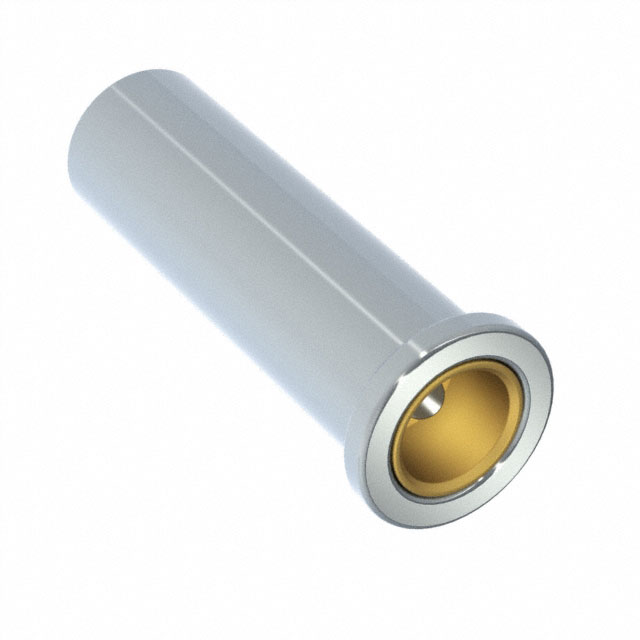

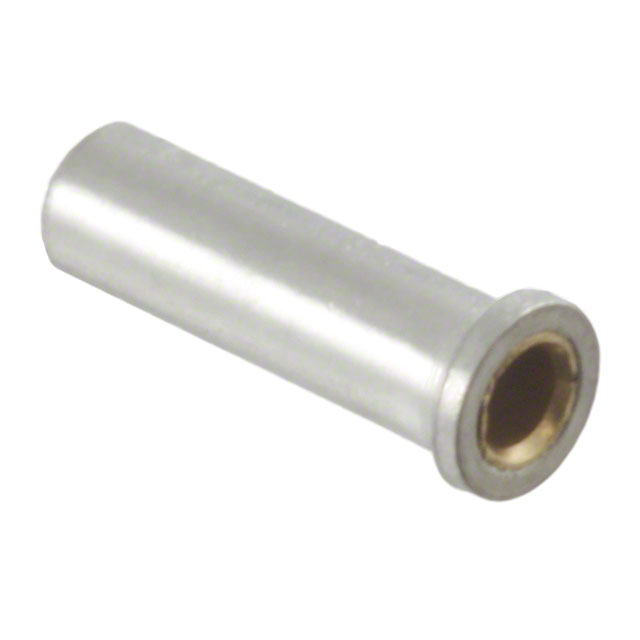

0339-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K
CONN PIN RCPT .020-.032 SOLDER
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Flange Diameter [diameter] | Flange Diameter [diameter] | Contact Finish Thickness | Contact Finish Thickness | Tail Type | Pin Hole Diameter [diameter] | Pin Hole Diameter [diameter] | Contact Finish | Length - Overall | Length - Overall | Termination | Accepts Pin Diameter [Min] | Accepts Pin Diameter [Min] | Accepts Pin Diameter [Max] | Accepts Pin Diameter [Max] | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | 1.45 mm | 0.057 in | 0.068 in | 1.73 mm | 30 Áin | 0.76 Ám | No Tail | 0.047 in | 1.19 mm | Gold | 0.19 in | 4.83 mm | Solder | 0.51 mm | 0.02 in | 0.81 mm | 0.032 " | Beryllium Copper |
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | 1.45 mm | 0.057 in | 0.068 in | 1.73 mm | 30 Áin | 0.76 Ám | No Tail | 0.047 in | 1.19 mm | Gold | 0.19 in | 4.83 mm | Solder | 0.51 mm | 0.02 in | 0.81 mm | 0.032 " | Beryllium Copper |
