03DB Series
Manufacturer: JST Sales America Inc.
Beta
⌘K
CONN WIRE IDC 3POS 24-28AWG PCB
| Part | Number of Positions Loaded | Contact Finish | Board-Side Pitch | Board-Side Pitch | Cable Termination | Connector Type | Number of Rows | Cable Pitch | Cable Pitch | Mounting Type | Wire Gauge [Min] | Wire Gauge [Max] | Wire Gauge | Features | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

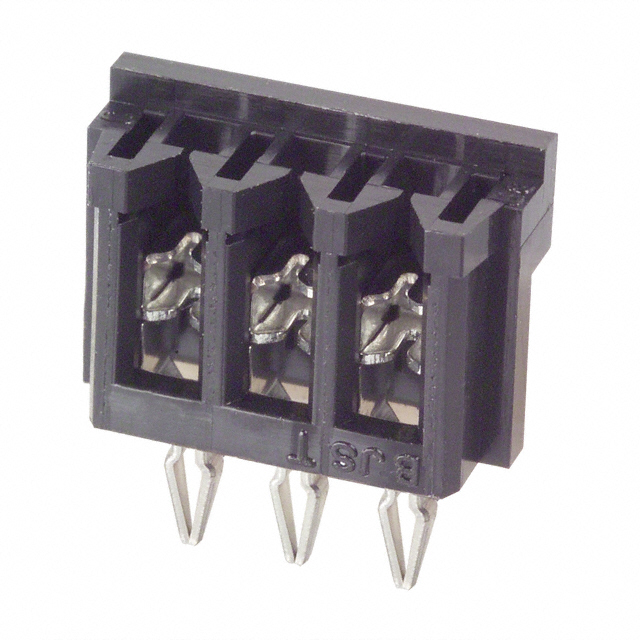

 JST Sales America Inc. | All | Tin-Lead | 2.5 mm | 0.098 in | IDC | Individual Wires | 1 | 0.098 in | 2.5 mm | Press-Fit Through Hole | 24 AWG | 28 AWG | Stranded | Closed End | Black |

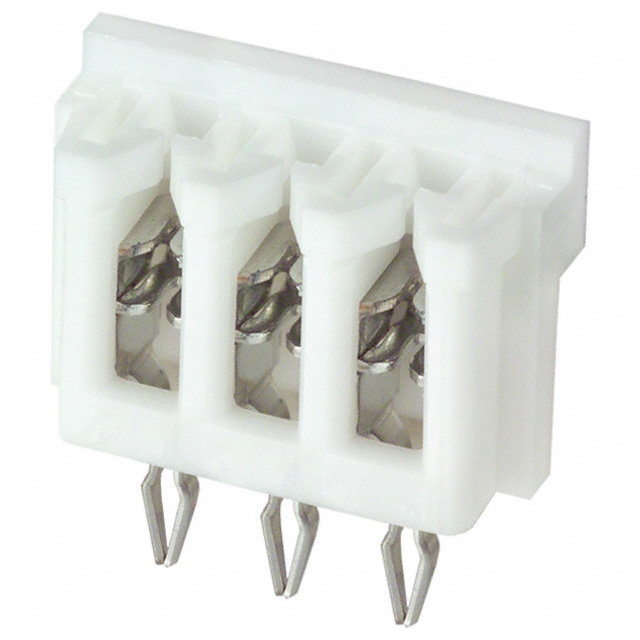

 JST Sales America Inc. | All | Tin-Lead | 2.5 mm | 0.098 in | IDC | Individual Wires | 1 | 0.098 in | 2.5 mm | Press-Fit Through Hole | 24 AWG | 28 AWG | Stranded | Closed End | White |

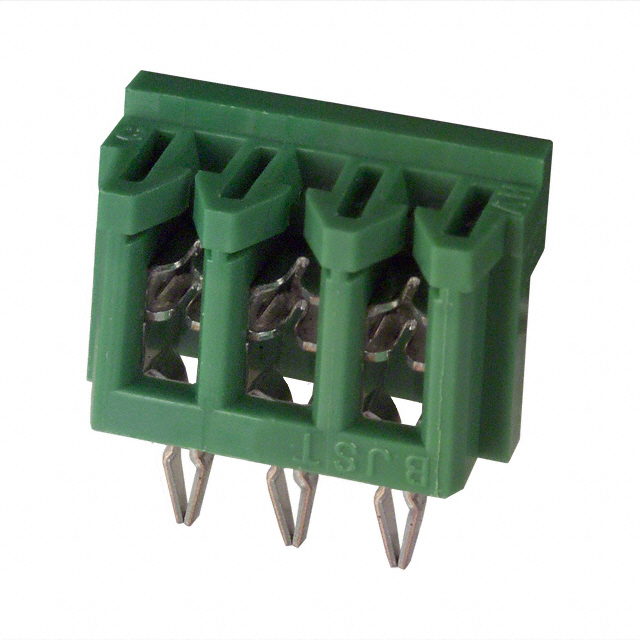

 JST Sales America Inc. | All | Tin-Lead | 2.5 mm | 0.098 in | IDC | Individual Wires | 1 | 0.098 in | 2.5 mm | Press-Fit Through Hole | 24 AWG | 28 AWG | Stranded | Closed End | Green |
