TR9CE13330 Series

Catalog

AC/DC DESKTOP ADAPTER 12V 160W

Part	Standard Number	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Current - Output (Max) [Max]	Power (Watts)	Cord Length	Cord Length	Input Connector	Form	No Load Power Consumption	Operating Temperature [Max]	Operating Temperature [Min]	Efficiency	Voltage - Input [Max]	Voltage - Input [Min]	Applications	Region Utilized	Output Connector	Voltage - Output	Input Type	Cord Length
GlobTek, Inc. TR9CE13330YL4IMR6B	60335-1 60601-1-11 60601-1-2 60950-1 62368-1	6.95 in	176.5 mm	74 mm	2.91 in	40 mm	1.58 in	13.33 A	160 W	1 m	39.4 in	IEC 320-C14	Desktop (Class I)	150 mW	40 °C	-10 °C	CoC Tier 2 Level VI	264 VAC	90 VAC	Household Appliances ITE (Commercial) Medical	International	Power DIN 4 Pin	12 V	Cord (Sold Separately)
GlobTek, Inc. TR9CE13330A04CIMR6B		6.93 "	176 mm	74 mm	2.91 in	40 mm	1.58 in	13.33 A	160 W		0.3 m	IEC 320-C14	Desktop (Class I)	150 mW	40 °C	-10 °C	CoC Tier 2 Level VI	264 VAC	90 VAC	Household Appliances ITE (Commercial) Medical	International	Stripped Tinned Wire Leads	12 V	Cord (Sold Separately)	11.8 "

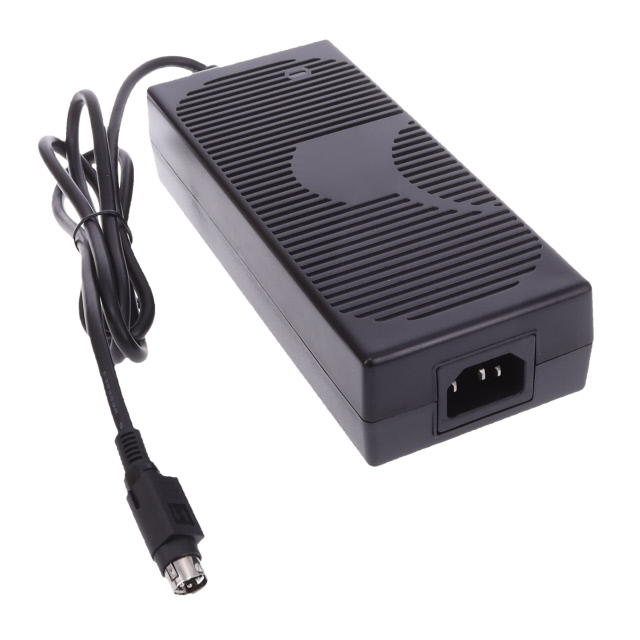

GlobTek, Inc. TR9CE13330YL4IMCFR6B	60335-1 60601-1 60950-1 62368-1	6.93 "	176 mm	74 mm	2.91 in	40 mm	1.58 in	13.33 A	160 W	1 m	39.4 in	IEC 320-C14	Desktop (Class I)	150 mW	40 °C	-10 °C	CoC Tier 1 Level VI	264 VAC	90 VAC	Household Appliances ITE (Commercial) Medical	International	Power DIN 4 Pin	12 V	Cord (Sold Separately)
