19S141 Series
Manufacturer: Rosenberger
Beta
⌘K

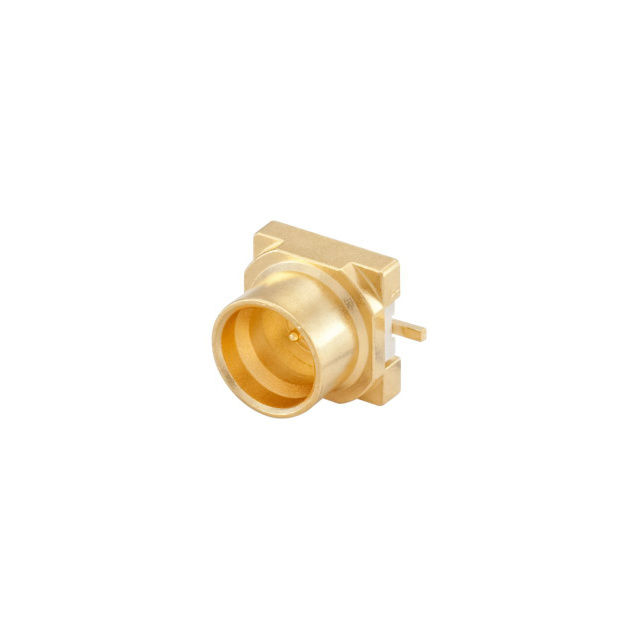

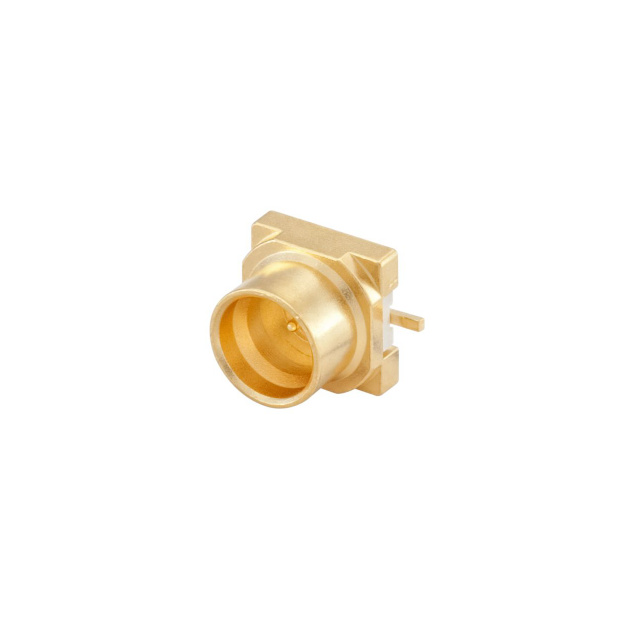

CONN SMP PLUG STR 50OHM SMD
| Part | Body Material | Body Finish | Dielectric Material | Voltage Rating | Operating Temperature [Max] | Operating Temperature [Min] | Mating Cycles | Center Contact Plating | Shield Termination | Contact Termination | Center Contact Material | Housing Color | Features | Fastening Type | Mounting Type | Number of Ports | Frequency - Max [Max] | Impedance | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rosenberger | Brass | Gold | Liquid Crystal Polymer (LCP) | 335 V | 155 C | -65 ░C | 1000 | Gold | Solder | Solder | Brass | Gold | Smooth Bore | Snap-On | Surface Mount | 1 | 26.5 GHz | 50 Ohms | Plug Male Pin |
 Rosenberger | Bronze | Gold | Liquid Crystal Polymer (LCP) | 335 V | 155 C | -65 ░C | 1000 | Gold | Solder | Solder | Bronze | Gold | Snap-On | Surface Mount | 1 | 26.5 GHz | 50 Ohms | Plug Male Pin |
