ADS6149 Series
Manufacturer: Texas Instruments
Beta
⌘K
14-BIT, 250-MSPS ANALOG-TO-DIGITAL CONVERTER (ADC)
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Number of Bits | Supplier Device Package | Voltage - Supply, Analog [Max] | Voltage - Supply, Analog [Min] | Reference Type | Architecture | Sampling Rate (Per Second) | Configuration | Number of Inputs | Number of A/D Converters | Voltage - Supply, Digital [Min] | Voltage - Supply, Digital [Max] | Package / Case | Input Type | Data Interface | Supplied Contents | Input Range | Utilized IC / Part | Power (Typ) @ Conditions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

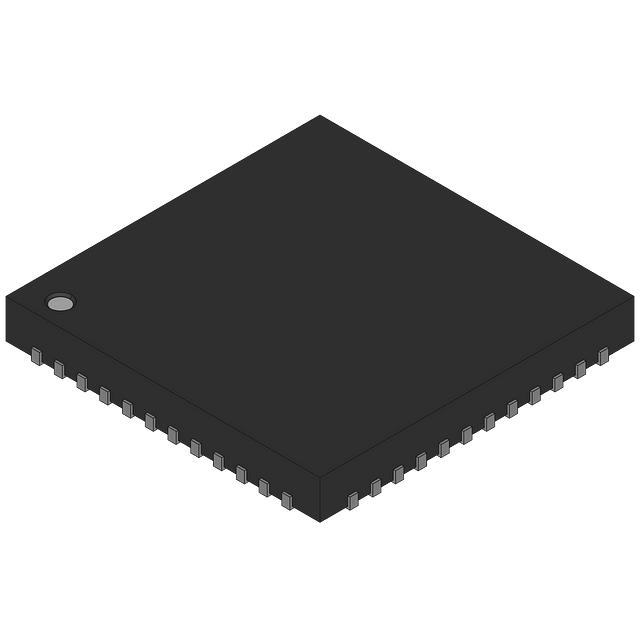

 Texas Instruments | 85 °C | -40 °C | Surface Mount | 14 | 48-VQFN (7x7) | 3.6 V | 3 V | External Internal | Pipelined | 250 M | S/H-ADC | 1 | 1 | 1.7 V | 1.9 V | 48-VFQFN Exposed Pad | Differential | LVDS - Parallel Parallel | ||||

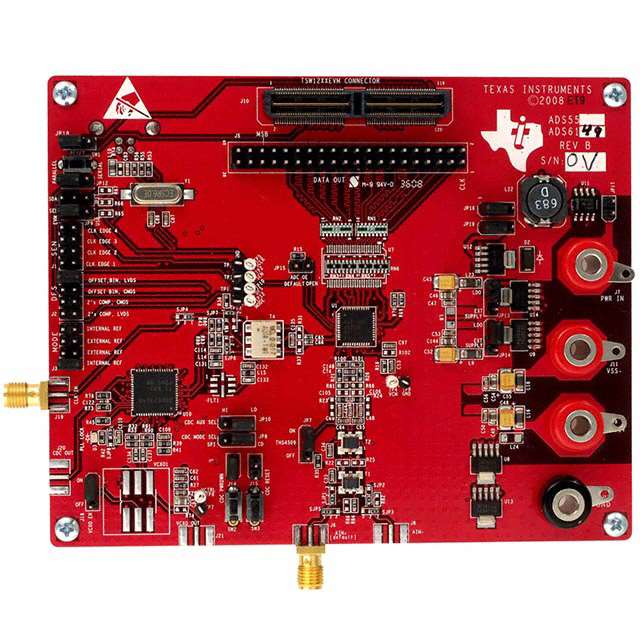

 Texas Instruments | 14 | 250 M | 1 | Parallel Serial | Board(s) | 2 Vpp | ADS6149 | 561 mW |
