9WV1224 Series

Catalog

120X38MM, DC, 24V,SPLASH PROOF,R

Part	Current Rating (Amps)	Material - Blade	Material - Frame	RPM	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension	Fan Type	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Rated	Bearing Type	Ingress Protection	Noise	Width [y]	Air Flow	Air Flow	Features	Approval Agency	Power (Watts)	Weight [custom]	Weight [custom]	Static Pressure	Static Pressure	Weight	Weight

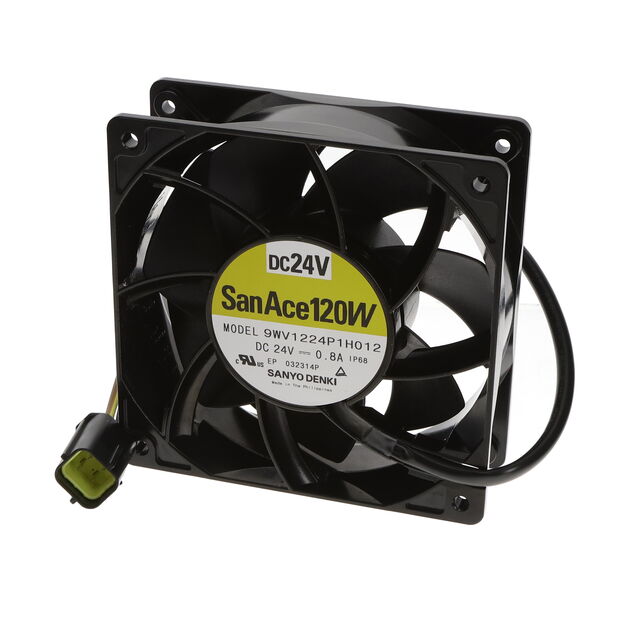

Sanyo Denki America Inc. 9WV1224P1H012	800 mA	Plastic	Aluminum	5200 RPM	120.1 mm	120.1 mm	Square	Tubeaxial	4 Position Rectangular Connector	-20 ░C	70 °C	24 VDC	Ball	IP68 - Dust Tight Waterproof	58.5 dB	38 mm
Sanyo Denki America Inc. 9WV1224H1D001	800 mA	Plastic	Aluminum	5200 RPM	120 mm	120 mm		Tubeaxial	3 Wire Leads	-20 ░C	70 °C	24 VDC	Ball	IP68 - Dust Tight Waterproof	58 dB(A)	38 mm	5.1 m³/min	182.3 CFM	Locked Rotor Sensor	CSA TUV UL	19.2 W	0.97 lb	440 g	237 Pa	0.95 in H2O
Sanyo Denki America Inc. 9WV1224P1H001	800 mA	Plastic	Aluminum	5200 RPM	120 mm	120 mm		Tubeaxial	4 Wire Leads	-20 ░C	70 °C	24 VDC	Ball	IP68 - Dust Tight Waterproof	58 dB(A)	38 mm	5.11 m³/min	182.4 CFM	PWM Control Speed Sensor (Tach)	CSA TUV UL	19.2 W			237 Pa	0.95 in H2O	439.98 g	0.97 lb
Sanyo Denki America Inc. 9WV1224J1001	1.5 A	Plastic	Aluminum	6400 RPM	120 mm	120 mm		Tubeaxial	3 Wire Leads	-20 ░C	70 °C	24 VDC	Ball	IP68 - Dust Tight Waterproof	64 dB(A)	38 mm	6.27 mł/min	224 CFM	Locked Rotor Protection Speed Sensor (Tach)	CSA TUV UL	36 W	0.97 lb	440 g	361.2 Pa	1.45 in H2O
Sanyo Denki America Inc. 9WV1224H101	800 mA	Plastic	Aluminum	5200 RPM	120 mm	120 mm		Tubeaxial	3 Wire Leads	-20 ░C	70 °C	24 VDC	Ball	IP68 - Dust Tight Waterproof	58 dB(A)	38 mm	5.1 m³/min	182.3 CFM	Locked Rotor Protection Speed Sensor (Tach)	CSA TUV UL	19.2 W	0.97 lb	440 g	237 Pa	0.95 in H2O
