FI-S5 Series
Manufacturer: JAE Electronics
Beta
⌘K
CONN HEADER SMD R/A 5POS 1.25MM
| Part | Mounting Type | Style | Number of Rows | Current Rating (Amps) | Material Flammability Rating | Shrouding | Contact Finish - Mating | Number of Positions | Contact Material | Number of Positions Loaded | Pitch - Mating | Pitch - Mating | Contact Finish - Post | Fastening Type | Features | Contact Shape | Voltage Rating | Operating Temperature [Max] | Operating Temperature [Min] | Insulation Height | Insulation Height | Termination | Connector Type | Insulation Color | Contact Type | Note | Color | Insulation Material | Contact Termination | Pitch | Pitch |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
JAE Electronics | Right Angle Surface Mount | Board to Cable/Wire | 1 | 1 A | UL94 V-0 | Shrouded - 4 Wall | Gold | 5 | Copper Alloy | All | 0.049 in | 1.25 mm | Tin Tin-Alloy | Friction Lock | Solder Retention | Square | 200 V | 80 °C | -40 C | 1.8 mm | 0.071 in | Solder | Receptacle | Beige | Male Pin | ||||||

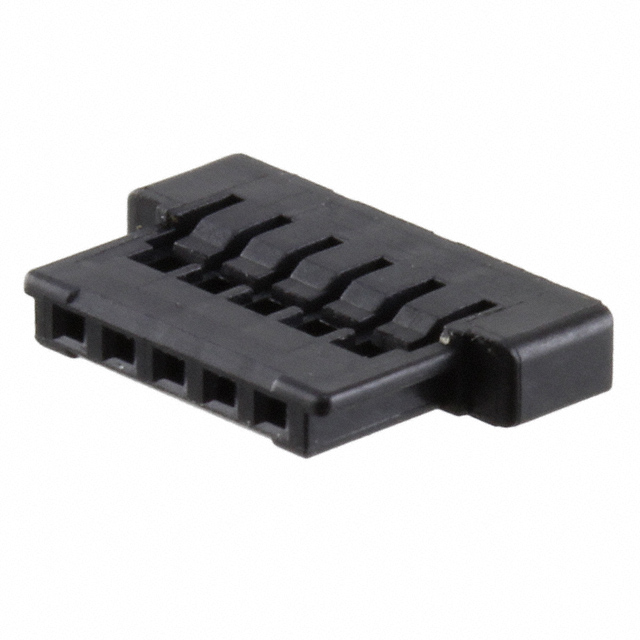

 JAE Electronics | Free Hanging (In-Line) | 1 | 5 | Friction Lock | Plug | Female Socket | Contacts Not Included | Black | Glass Filled Nylon 6/6 Polyamide (PA66) | Crimp | 0.049 in | 1.25 mm |
