3130-1 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN PC PIN CIRC .025DIA GOLD

Part	Length - Overall	Length - Overall	Contact Material	Terminal Type	Termination	Insulation	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Terminal Style	Mounting Type	Length - Above Flange [x]	Length - Above Flange [x]	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Length - Below Flange [x]	Length - Below Flange [x]	Pin Size - Above Flange [diameter]	Pin Size - Above Flange [diameter]	Flange Diameter [diameter]	Flange Diameter [diameter]	Board Thickness	Board Thickness

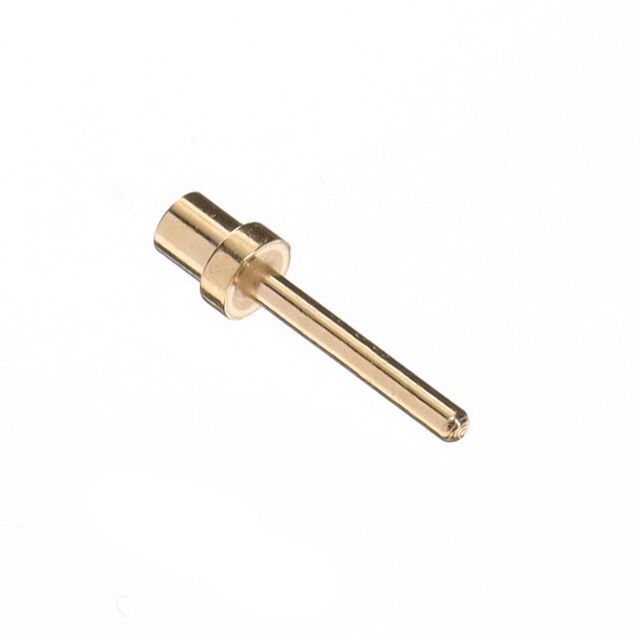

Mill-Max Manufacturing Corp. 3130-1-00-15-00-00-08-0	0.251 in	6.38 mm	Brass Alloy	PC Pin	Swage	Non-Insulated	1.32 mm	0.052 in	Single End	Through Hole	4.55 mm	0.179 in	0.25 Ám	10 Áin	Gold	0.051 "	1.3 mm	0.64 mm	0.025 in	1.57 mm	0.062 in	0.79 mm	0.031 in
Mill-Max Manufacturing Corp. 3130-1-00-34-00-00-08-0	0.251 in	6.38 mm	Brass Alloy	PC Pin	Swage	Non-Insulated	1.32 mm	0.052 in	Single End	Through Hole	4.55 mm	0.179 in	1.27 µm	50 µin	Gold	0.051 "	1.3 mm	0.64 mm	0.025 in	1.57 mm	0.062 in	0.79 mm	0.031 in
Mill-Max Manufacturing Corp. 3130-1-00-21-00-00-08-0	0.251 in	6.38 mm	Brass Alloy	PC Pin	Swage	Non-Insulated	1.32 mm	0.052 in	Single End	Through Hole	4.55 mm	0.179 in	0.51 µm	20 µin	Gold	0.051 "	1.3 mm	0.64 mm	0.025 in	1.57 mm	0.062 in	0.79 mm	0.031 in
Mill-Max Manufacturing Corp. 3130-1-00-01-00-00-08-0	0.251 in	6.38 mm	Brass Alloy	PC Pin	Swage	Non-Insulated	1.32 mm	0.052 in	Single End	Through Hole	4.55 mm	0.179 in	5.08 Ám	200 Áin	Tin-Lead	0.051 "	1.3 mm	0.64 mm	0.025 in	1.57 mm	0.062 in	0.79 mm	0.031 in
Mill-Max Manufacturing Corp. 3130-1-00-80-00-00-08-0	0.251 in	6.38 mm	Brass Alloy	PC Pin	Swage	Non-Insulated	1.32 mm	0.052 in	Single End	Through Hole	4.55 mm	0.179 in	5.08 Ám	200 Áin	Tin	0.051 "	1.3 mm	0.64 mm	0.025 in	1.57 mm	0.062 in	0.79 mm	0.031 in
