PM3-PRDW12.0 Series
Manufacturer: Bivar Inc.
Beta
⌘K

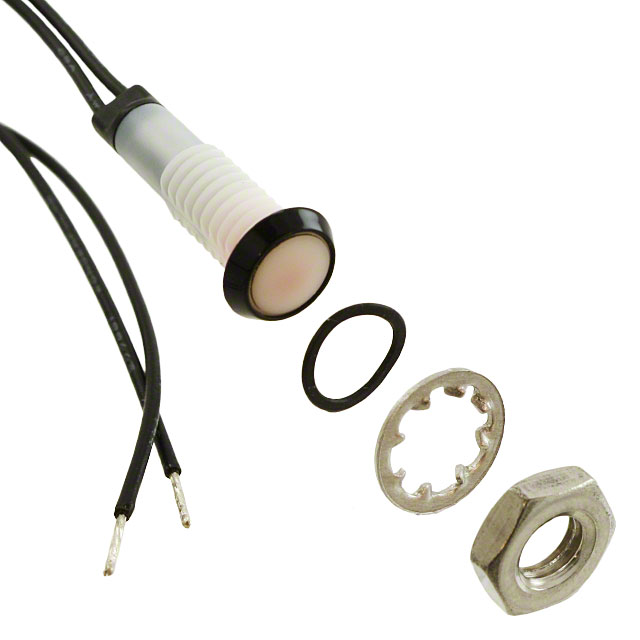

LED PANEL MOUNT INDICATOR, RED, 48 V, 5.943 MM, 20 MA, 40 MCD, IP67
| Part | Lamp Color | Millicandela Rating | Current | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [x] | Ratings | Voltage [Max] | Voltage [Min] | Panel Cutout Shape | Lens Size [diameter] | Lens Color | Wavelength - Peak | Ingress Protection | Viewing Angle | Termination Style | Lens Transparency | Type | Lens Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bivar Inc. | Red | 40 mcd | 20 mA | 4.83 mm | 0.19 in | AC/DC | 48 V | 8 V | Round | 5.9 mm | White | 645 nm | IP67 | 120 ° | Wire Leads - 12" (304.80mm) | Diffused | LED | Round with Flat Top |
