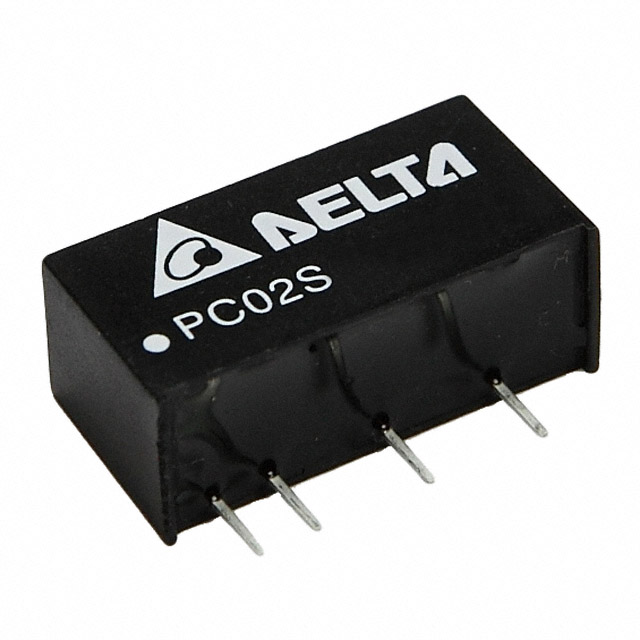

PC02S Series

Catalog

DC DC CONVERTER 15V 2W

Part	Efficiency	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Min) [Min]	Current - Output (Max) [Max]	Applications	Number of Outputs	Features	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Type	Voltage - Isolation	Power (Watts)	Voltage - Input (Max) [Max]	Package / Case	Voltage - Output 1	Mounting Type
Delta Electronics PC02S1215A	83 %	85 °C	-40 C	10.8 V	133 mA	Medical	1	SCP	19.6 mm	0.4 "	10.2 mm	0.3 "	0.77 in	7.6 mm	Isolated Module	1000 V	2 W	13.2 V	6-SIP Module 5 Leads	15 V	Through Hole
Delta Electronics PC02S1212A		85 °C	-40 C	10.8 V	165 mA	Medical	1	SCP	19.6 mm	0.4 "	10.2 mm	0.3 "	0.77 in	7.6 mm	Isolated Module	1000 V	2 W	13.2 V	6-SIP Module 5 Leads	12 V	Through Hole
Delta Electronics PC02S0503A	73 %	85 °C	-40 C	4.5 V	500 mA	Medical	1	SCP	19.6 mm	0.4 "	10.2 mm	0.3 "	0.77 in	7.6 mm	Isolated Module	1000 V	2 W	5.5 V	6-SIP Module 5 Leads	3.3 V	Through Hole
