DG200 Series
Manufacturer: Tri-Mag, LLC
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
AC/DC CONVERTER 48V 200W
| Part | Minimum Load Required | Operating Temperature (Max) | Operating Temperature (Min) | Power (Watts) | Voltage - Isolation | Voltage - Output 1 | Current - Output 1 | Features | Applications | Voltage - Input (AC) Minimum | Voltage - Input (AC) Maximum | Number of Outputs | Efficiency | Size / Dimension Length | Size / Dimension Width | Size / Dimension Height | Type | Approval Agency | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

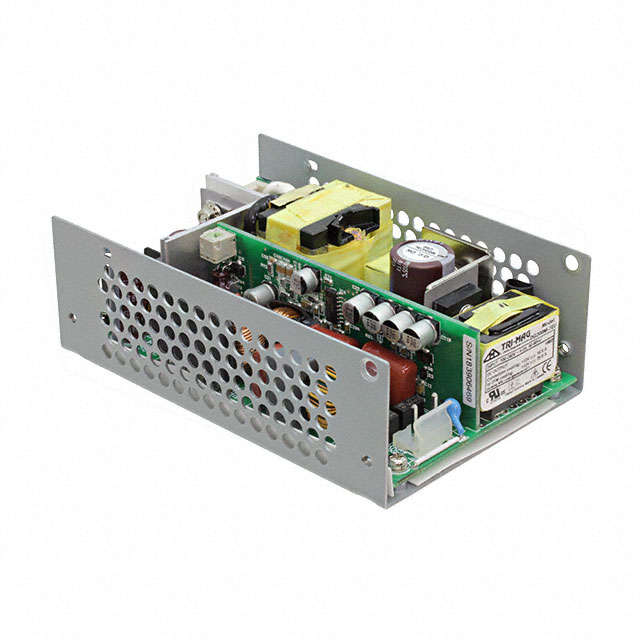

 Tri-Mag, LLC | No | 65 °C | -20 °C | 200 W 300 W | 4000 Vpk | 48 V | 4.2 A | PFC Standby Output Universal Input | Medical | 90 V | 264 V | 1 | 90 % | 5 in | 3 in | 1.42 in | Open Frame | CB CE | Chassis Mount |
Tri-Mag, LLC | No | 65 °C | -20 °C | 200 W 300 W | 4000 Vpk | 48 V | 4.2 A | PFC Standby Output Universal Input | ITE (Commercial) | 90 V | 264 V | 1 | 90 % | 5 in | 3 in | 1.42 in | Enclosed | CB CE | Chassis Mount |
Tri-Mag, LLC | No | 65 °C | -20 °C | 200 W 300 W | 4000 Vpk | 48 V | 4.2 A | PFC Standby Output Universal Input | ITE (Commercial) | 90 V | 264 V | 1 | 90 % | 5 in | 3 in | 1.42 in | Open Frame | CB CE | Chassis Mount |
Tri-Mag, LLC | No | 65 °C | -20 °C | 200 W 300 W | 4000 Vpk | 18 V | 11.1 A | PFC Standby Output Universal Input | Medical | 90 V | 264 V | 1 | 90 % | 5 in | 3 in | 1.42 in | Open Frame | CB CE | Chassis Mount |

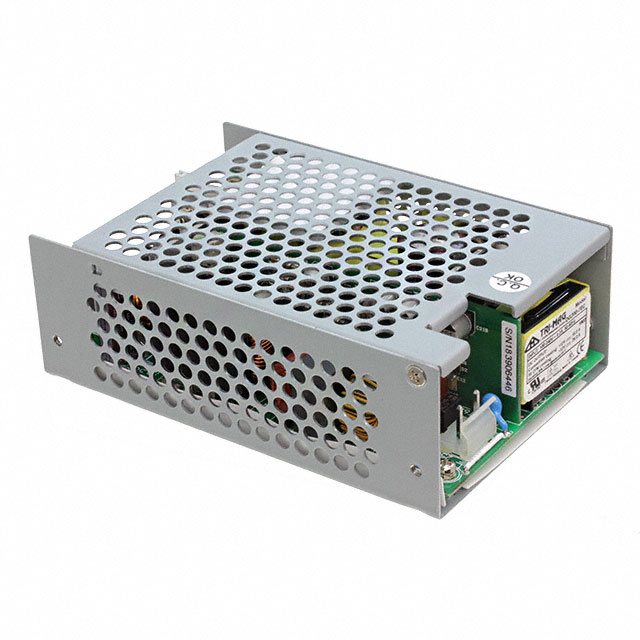

Tri-Mag, LLC | No | 65 °C | -20 °C | 200 W 300 W | 4000 Vpk | 24 V | 8.4 A | PFC Standby Output Universal Input | ITE (Commercial) | 90 V | 264 V | 1 | 90 % | 5 in | 3 in | 1.42 in | Enclosed | CB CE | Chassis Mount |
Tri-Mag, LLC | No | 65 °C | -20 °C | 200 W 300 W | 4000 Vpk | 18 V | 11.1 A | PFC Standby Output Universal Input | Medical | 90 V | 264 V | 1 | 90 % | 5 in | 3 in | 1.42 in | Enclosed | CB CE | Chassis Mount |
 Tri-Mag, LLC | No | 65 °C | -20 °C | 200 W 300 W | 4000 Vpk | 12 V | 16.5 A | PFC Standby Output Universal Input | Medical | 90 V | 264 V | 1 | 90 % | 5 in | 3 in | 1.42 in | Open Frame | CB CE | Chassis Mount |
Tri-Mag, LLC | No | 65 °C | -20 °C | 200 W 300 W | 4000 Vpk | 28 V | 7.2 A | PFC Standby Output Universal Input | Medical | 90 V | 264 V | 1 | 90 % | 5 in | 3 in | 1.42 in | Open Frame | CB CE | Chassis Mount |
Tri-Mag, LLC | No | 65 °C | -20 °C | 200 W 300 W | 4000 Vpk | 28 V | 7.2 A | PFC Standby Output Universal Input | Medical | 90 V | 264 V | 1 | 90 % | 5 in | 3 in | 1.42 in | Open Frame | CB CE | Chassis Mount |
Tri-Mag, LLC | No | 65 °C | -20 °C | 200 W 300 W | 4000 Vpk | 15 V | 12 A | PFC Standby Output Universal Input | ITE (Commercial) | 90 V | 264 V | 1 | 90 % | 5 in | 3 in | 1.42 in | Open Frame | CB CE | Chassis Mount |
