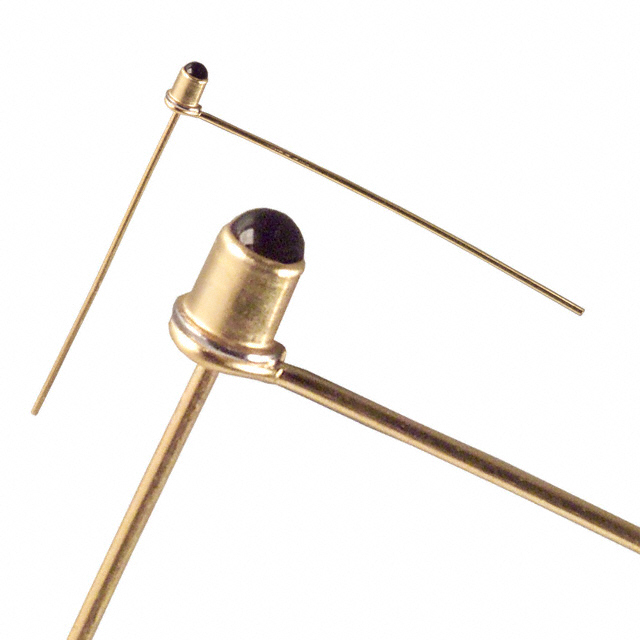

SE1470 Series
Manufacturer: Honeywell Sensing and Productivity Solutions
Beta
⌘K
EMITTER IR 880NM 50MA COAXIAL
| Part | Mounting Type | Package / Case | Viewing Angle | Operating Temperature [Max] | Operating Temperature [Min] | Orientation | Current - DC Forward (If) (Max) [Max] | Wavelength | Radiant Intensity (Ie) Min @ If | Voltage - Forward (Vf) (Typ) | Type | Radiant Intensity (Ie) Min @ If [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
Honeywell Sensing and Productivity Solutions | Through Hole | Coaxial Metal Can | 24 ° | 125 °C | -55 °C | Top View | 50 mA | 880 nm | 1.1 mW/cm² | 1.8 V | Infrared (IR) | |
Honeywell Sensing and Productivity Solutions | Through Hole | Coaxial Metal Can | 24 ° | 125 °C | -55 °C | Top View | 50 mA | 880 nm | 1.65 mW/cm² | 1.8 V | Infrared (IR) | |
 Honeywell Sensing and Productivity Solutions | Through Hole | Coaxial Metal Can | 24 ° | 125 °C | -55 °C | Top View | 50 mA | 880 nm | 1.8 V | Infrared (IR) | 0.65 mW/cm² |
