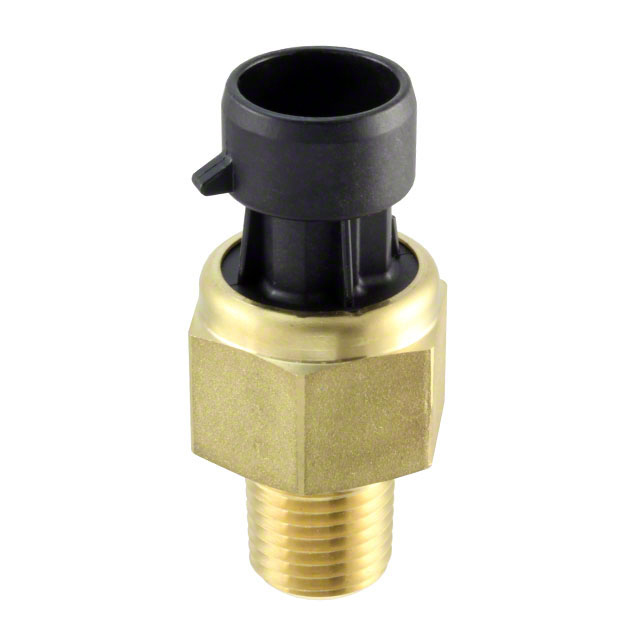

PX3AN1 Series

Manufacturer: Honeywell Sensing and Productivity Solutions

Catalog

SENSOR 250PSIS 1/4"NPT 4.5V

Part	Operating Pressure	Operating Pressure	Voltage - Supply [Min]	Voltage - Supply [Max]	Accuracy	Features	Maximum Pressure [Max]	Maximum Pressure [Max]	Port Size [custom]	Port Size [x]	Port Size [x]	Port Size [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Port Style	Output [Min]	Output [Max]	Pressure Type	Termination Style	Output Type	Applications	Port Size	Port Size	Operating Pressure [custom]	Operating Pressure [custom]	Maximum Pressure	Maximum Pressure
Honeywell Sensing and Productivity Solutions PX3AN1BH250PSAAX	250 PSI	1723.69 kPa	4.75 V	5.25 V	1 %	Temperature Compensated	450 PSI	3102.64 kPa	NPT	0.25 "	6.35 mm	Male	125 °C	-30 ░C	Cylinder Threaded	Threaded	0.5 V	4.5 V	Sealed Gauge	Connector	Analog Voltage
Honeywell Sensing and Productivity Solutions PX3AN1BS010BSCHX	145.04 PSI	10 bar	8 V	30 VDC	1 %	Temperature Compensated	449.62 PSI	3100 kPa	NPT	0.25 "	6.35 mm	Male	125 °C	-40 °C	Cylinder Threaded	Threaded	4 mA	20 mA	Sealed Gauge	Connector	Analog Current
Honeywell Sensing and Productivity Solutions PX3AN1BS150PSAAX	150 PSI	1034.21 kPa	4.75 V	5.25 V	1 %	Temperature Compensated	450 PSI	3102.64 kPa	NPT	0.25 "	6.35 mm	Male	125 °C	-40 °C	Cylinder Threaded	Threaded	0.5 V	4.5 V	Sealed Gauge	Connector	Analog Voltage
Honeywell Sensing and Productivity Solutions PX3AN1BH100PSAAX	100 PSI	689.48 kPa	4.75 V	5.25 V	1 %	Temperature Compensated	450 PSI	3102.64 kPa	NPT	0.25 "	6.35 mm	Male	125 °C	-40 °C	Cylinder	Threaded	0.5 V	4.5 V	Sealed Gauge	Connector	Analog Voltage	Industrial Automation
Honeywell Sensing and Productivity Solutions PX3AN1BH010BSCHX	145.04 PSI	10 bar	8 V	30 VDC	1 %	Temperature Compensated	449.62 PSI	3100 kPa	NPT	0.25 "	6.35 mm	Male	125 °C	-30 ░C	Cylinder Threaded	Threaded	4 mA	20 mA	Sealed Gauge	Connector	Analog Current
Honeywell Sensing and Productivity Solutions PX3AN1BH010BSAAX	145.04 PSI	10 bar	4.75 V	5.25 V	1 %	Temperature Compensated	449.62 PSI	3100 kPa					125 °C	-40 °C	Cylinder	Threaded	0.5 V	4.5 V	Sealed Gauge	Connector	Analog Voltage	Industrial Automation	BSPP Male	6.35 mm
Honeywell Sensing and Productivity Solutions PX3AN1BH030PAAAX	30 PSI	206.84 kPa	4.75 V	5.25 V	1 %	Temperature Compensated	150 PSI	1034.21 kPa	NPT	0.25 "	6.35 mm	Male	125 °C	-30 ░C	Cylinder Threaded	Threaded	0.5 V	4.5 V		Connector	Analog Voltage
Honeywell Sensing and Productivity Solutions PX3AN1BS045BSCHX			8 V	30 VDC	1 %	Temperature Compensated			NPT	0.25 "	6.35 mm	Male	125 °C	-40 °C	Cylinder Threaded	Threaded	4 mA	20 mA	Sealed Gauge	Connector	Analog Current				652.67 PSI	4500 kPa
Honeywell Sensing and Productivity Solutions PX3AN1BH500PSAAX	500 PSI	3447.38 kPa	4.75 V	5.25 V	1 %	Temperature Compensated	1000 PSI	6894.76 kPa	NPT	0.25 "	6.35 mm	Male	125 °C	-30 ░C	Cylinder Threaded	Threaded	0.5 V	4.5 V	Sealed Gauge	Connector	Analog Voltage
Honeywell Sensing and Productivity Solutions PX3AN1BS046BSCHX			8 V	30 VDC	1 %	Temperature Compensated			NPT	0.25 "	6.35 mm	Male	125 °C	-40 °C	Cylinder Threaded	Threaded	4 mA	20 mA	Sealed Gauge	Connector	Analog Current						6900 kPa	1000.76 PSI
