T530X Series

Manufacturer: KEMET

Catalog

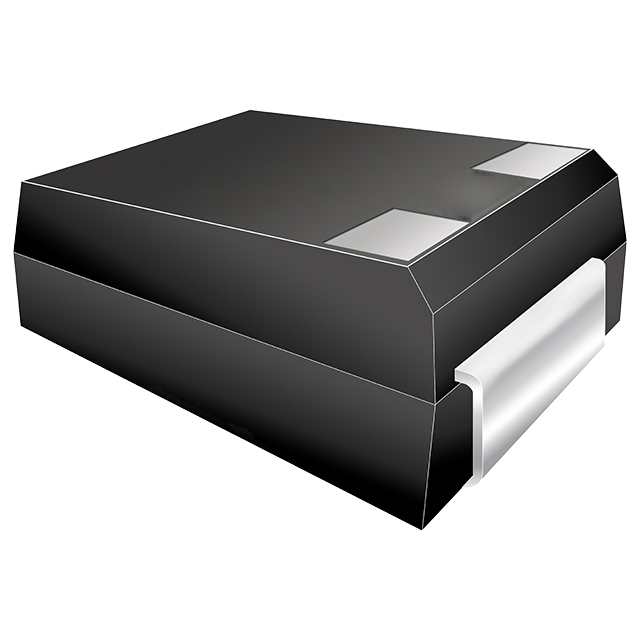

TANTALUM POLYMER CAPACITOR, 330 ΜF, ± 20%, 10 V, X, 0.01 OHM, 2917 [7343 METRIC]

Part	Features	Capacitance	Type	Operating Temperature [Min]	Operating Temperature [Max]	Tolerance	Manufacturer Size Code	Voltage - Rated	Package / Case	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Lifetime @ Temp.	Mounting Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	ESR (Equivalent Series Resistance)
KEMET T530X337M010AHE010	General Purpose	330 µF	Molded	-55 C	125 °C	20 %	X	10 V	2917 (7343 Metric)	0.169 in	4.3 mm	2000 Hrs	Surface Mount	0.169 "	7.3 mm	0.287 "	4.3 mm	10 mOhm
KEMET T530X108M2R5ATE006	General Purpose	1000 µF	Molded	-55 C	125 °C	20 %	X	2.5 V	2917 (7343 Metric)	0.169 in	4.3 mm	2000 Hrs	Surface Mount	0.169 "	7.3 mm	0.287 "	4.3 mm	6 mOhm
KEMET T530X477M006ATE006	General Purpose	470 µF	Molded	-55 C	125 °C	20 %	X	6.3 VDC	2917 (7343 Metric)	0.169 in	4.3 mm	2000 Hrs	Surface Mount	0.169 "	7.3 mm	0.287 "	4.3 mm	6 mOhm
KEMET T530X687M004ATE010	General Purpose	680 µF	Molded	-55 C	125 °C	20 %	X	4 V	2917 (7343 Metric)	0.169 in	4.3 mm	2000 Hrs	Surface Mount	0.169 "	7.3 mm	0.287 "	4.3 mm	10 mOhm
KEMET T530X687M2R5ATE006	General Purpose	680 µF	Molded	-55 C	125 °C	20 %	X	2.5 V	2917 (7343 Metric)	0.169 in	4.3 mm	2000 Hrs	Surface Mount	0.169 "	7.3 mm	0.287 "	4.3 mm	6 mOhm
KEMET T530X477M006ATE005	General Purpose	470 µF	Molded	-55 C	125 °C	20 %	X	6.3 VDC	2917 (7343 Metric)	0.169 in	4.3 mm	2000 Hrs	Surface Mount	0.169 "	7.3 mm	0.287 "	4.3 mm	5 mOhm
KEMET T530X108M2R5ATE004	General Purpose	1000 µF	Molded	-55 C	125 °C	20 %	X	2.5 V	2917 (7343 Metric)	0.169 in	4.3 mm	2000 Hrs	Surface Mount	0.169 "	7.3 mm	0.287 "	4.3 mm	4 mOhm
KEMET T530X687M006ATE010	General Purpose	680 µF	Molded	-55 C	125 °C	20 %	X	6.3 VDC	2917 (7343 Metric)	0.169 in	4.3 mm	2000 Hrs	Surface Mount	0.169 "	7.3 mm	0.287 "	4.3 mm	10 mOhm
KEMET T530X337M010ATE010	General Purpose	330 µF	Molded	-55 C	125 °C	20 %	X	10 V	2917 (7343 Metric)	0.169 in	4.3 mm	2000 Hrs	Surface Mount	0.169 "	7.3 mm	0.287 "	4.3 mm	10 mOhm
KEMET T530X687M006AHE010	General Purpose	680 µF	Molded	-55 C	125 °C	20 %	X	6.3 VDC	2917 (7343 Metric)	0.169 in	4.3 mm	2000 Hrs	Surface Mount	0.169 "	7.3 mm	0.287 "	4.3 mm	10 mOhm
