725-106 Series

Manufacturer: EDAC Inc.

Catalog

725 SERIES (.100" (2.54MM) CONTA

Part	Termination Rows [custom]	Material - Insulation	Color	Contact Material	Number of Rows [custom]	Mounting Type	Card Type	Read Out	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Card Thickness [Max]	Card Thickness [Min]	Pitch	Pitch	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Contact Type	Termination	Gender	Number of Positions/Bay/Row
EDAC Inc. 725-106-545-201	2	Polyester Thermoplastic	Black	Copper Alloy	2	Through Hole	Non Specified - Dual Edge	Dual	Gold	30 Áin	0.76 Ám	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	-40 C	105 ░C	106	Cantilever	Press-Fit Wire Wrap	Female	53

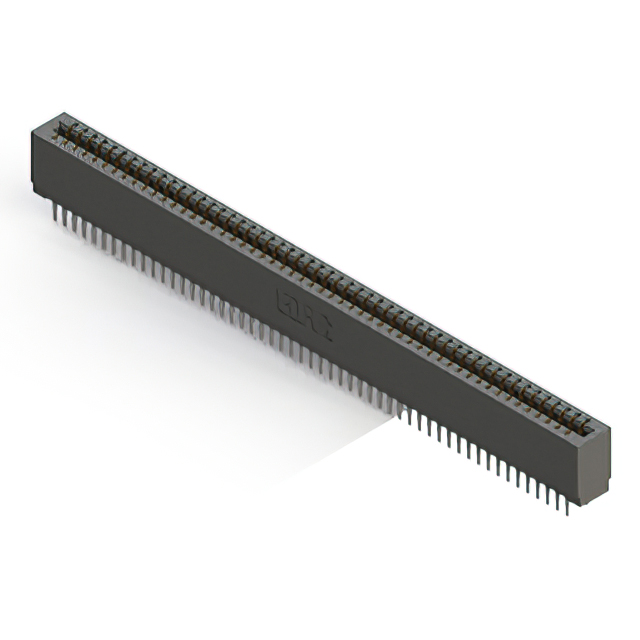

EDAC Inc. 725-106-560-201	2	Polyester Thermoplastic	Black	Copper Alloy	2	Through Hole	Non Specified - Dual Edge	Dual	Gold	30 Áin	0.76 Ám	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	-40 C	105 ░C	106	Cantilever Make Before Break	Press-Fit	Female	53
EDAC Inc. 725-106-540-201	2	Polyester Thermoplastic	Black	Copper Alloy	2	Through Hole	Non Specified - Dual Edge	Dual	Gold	30 Áin	0.76 Ám	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	-40 C	105 ░C	106	Cantilever	Press-Fit Wire Wrap	Female	53

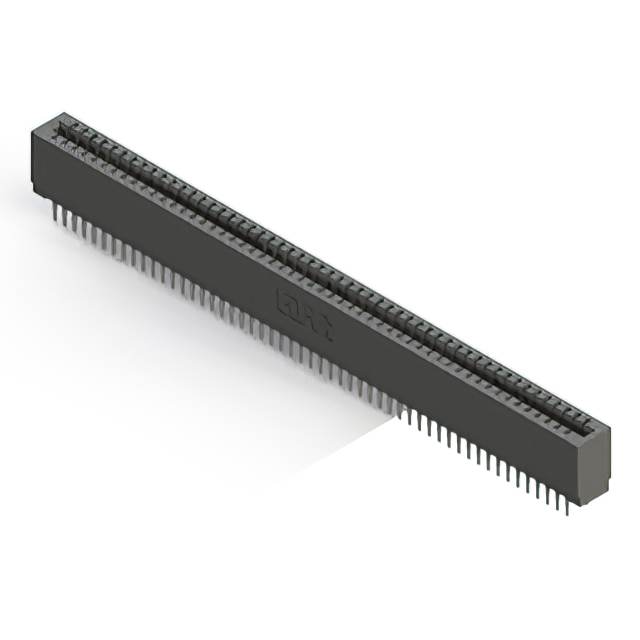

EDAC Inc. 725-106-520-201	2	Polyester Thermoplastic	Black	Copper Alloy	2	Through Hole	Non Specified - Dual Edge	Dual	Gold	30 Áin	0.76 Ám	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	-40 C	105 ░C	106	Cantilever	Press-Fit	Female	53
EDAC Inc. 725-106-541-201	2	Polyester Thermoplastic	Black	Copper Alloy	2	Through Hole	Non Specified - Dual Edge	Dual	Gold	30 Áin	0.76 Ám	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	-40 C	105 ░C	106	Cantilever	Press-Fit Wire Wrap	Female	53
