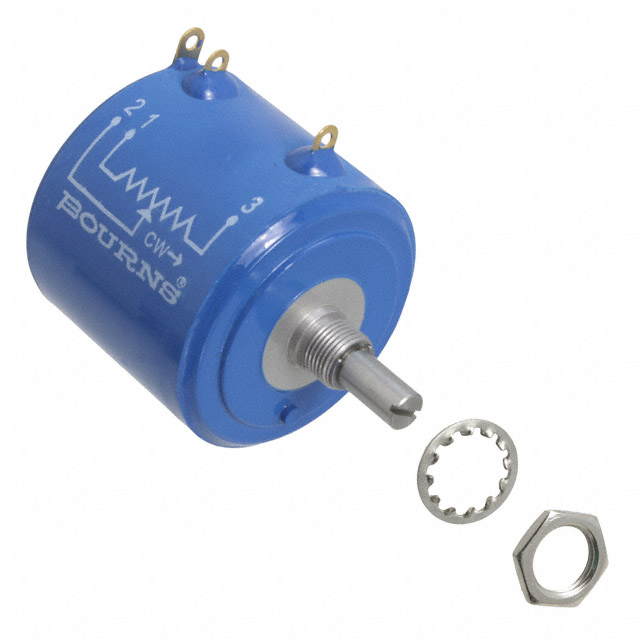

3400S Series
Manufacturer: Bourns Inc.
Beta
⌘K
RES POT 5K OHM 3% 5W 10(ELEC)/10(MECH)TURNS 6.34MM (65.09 X 46.04 X 52.39MM) SOLDER LUG PANEL MOUNT
| Part | Size - Body [diameter] | Size - Body [diameter] | Number of Gangs | Adjustment Type | Bushing Thread | Actuator Type | Built in Switch | Mounting Type | Tolerance | Actuator Length [x] | Actuator Length [x] | Power (Watts) | Temperature Coefficient | Taper | Resistance (Ohms) | Actuator Diameter [diameter] | Actuator Diameter [diameter] | Number of Turns | Termination Style | Resistive Material | Rotation | Resistance (Ohms) [custom] | Resistance (Ohms) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | 1.813 " | 46.04 mm | 1 | User Defined | 3/8-32 | Slotted | None | Panel Mount | 3 % | 20.64 mm | 0.813 in | 5 W | 20 ppm/°C | Linear | 5 kOhms | 0.2497 in | 6.34 mm | 10 | Solder Lug | Wirewound | 3600 ° | ||
Bourns Inc. | 1.813 " | 46.04 mm | 1 | User Defined | 3/8-32 | Slotted | None | Panel Mount | 3 % | 20.64 mm | 0.813 in | 5 W | 20 ppm/°C | Linear | 2 kOhms | 0.2497 in | 6.34 mm | 10 | Solder Lug | Wirewound | 3600 ° | ||
Bourns Inc. | 1.813 " | 46.04 mm | 1 | User Defined | 3/8-32 | Slotted | None | Panel Mount | 3 % | 20.64 mm | 0.813 in | 5 W | 20 ppm/°C | Linear | 250000 Ohms | 0.2497 in | 6.34 mm | 10 | Solder Lug | Wirewound | 3600 ° | ||
Bourns Inc. | 1.813 " | 46.04 mm | 1 | User Defined | 3/8-32 | Slotted | None | Panel Mount | 3 % | 20.64 mm | 0.813 in | 5 W | 20 ppm/°C | Linear | 500 kOhms | 0.2497 in | 6.34 mm | 10 | Solder Lug | Wirewound | 3600 ° | ||
Bourns Inc. | 1.813 " | 46.04 mm | 1 | User Defined | 3/8-32 | Slotted | None | Panel Mount | 3 % | 20.64 mm | 0.813 in | 5 W | 20 ppm/°C | Linear | 0.2497 in | 6.34 mm | 10 | Solder Lug | Wirewound | 3600 ° | 200 Ohms | ||
Bourns Inc. | 1.813 " | 46.04 mm | 1 | User Defined | 3/8-32 | Slotted | None | Panel Mount | 3 % | 20.64 mm | 0.813 in | 5 W | 20 ppm/°C | Linear | 0.2497 in | 6.34 mm | 10 | Solder Lug | Wirewound | 3600 ° | 50 kOhms | ||
Bourns Inc. | 1.813 " | 46.04 mm | 1 | User Defined | 3/8-32 | Slotted | None | Panel Mount | 3 % | 20.64 mm | 0.813 in | 5 W | 20 ppm/°C | Linear | 0.2497 in | 6.34 mm | 10 | Solder Lug | Wirewound | 3600 ° | 10k | ||
Bourns Inc. | 1.813 " | 46.04 mm | 1 | User Defined | 3/8-32 | Slotted | None | Panel Mount | 3 % | 20.64 mm | 0.813 in | 5 W | 20 ppm/°C | Linear | 0.2497 in | 6.34 mm | 10 | Solder Lug | Wirewound | 3600 ° | 1k | ||
Bourns Inc. | 1.813 " | 46.04 mm | 1 | User Defined | 3/8-32 | Slotted | None | Panel Mount | 3 % | 20.64 mm | 0.813 in | 5 W | 20 ppm/°C | Linear | 0.2497 in | 6.34 mm | 10 | Solder Lug | Wirewound | 3600 ° | 500 Ohms | ||
Bourns Inc. | 1.813 " | 46.04 mm | 1 | User Defined | 3/8-32 | Slotted | None | Panel Mount | 3 % | 20.64 mm | 0.813 in | 5 W | 20 ppm/°C | Linear | 0.2497 in | 6.34 mm | 10 | Solder Lug | Wirewound | 3600 ° | 100k |
