1219/10C Series
Manufacturer: ALPHA WIRE
Beta
⌘K

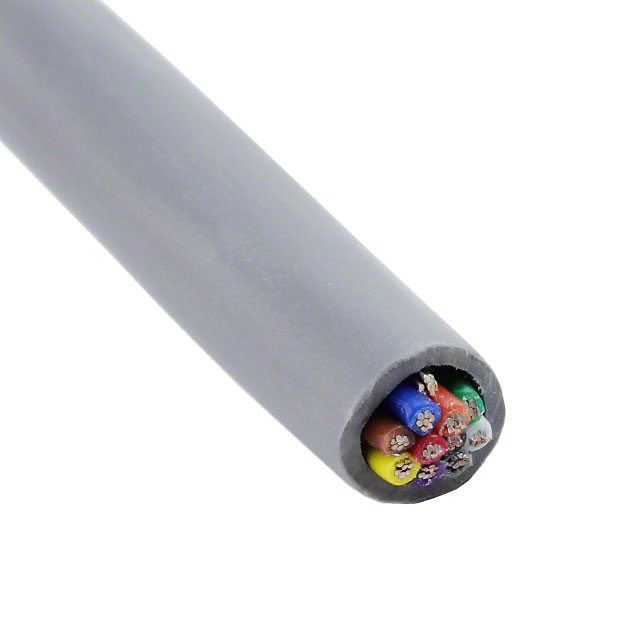

CABLE 10COND 24AWG SHLD 500'
| Part | Shield Coverage | Shield Material | Jacket (Insulation) Material | Wire Gauge | Number of Conductors [custom] | Jacket Color | Conductor Strand [custom] | Conductor Strand [custom] | Features | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Voltage | Operating Temperature [Max] | Operating Temperature [Min] | Conductor Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Length | Length | Shield Type | Usage | Conductor Insulation | Cable Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 100 % | Aluminum | Poly-Vinyl Chloride (PVC) | 24 AWG | 10 | Slate | 7 | 32 AWG | Drain Wire | 0.813 mm | 0.032 in | 300 VDC | 80 °C | -20 ░C | Copper Tinned | 0.244 in | 6.2 mm | 152.4 m | 500 ft | Foil | Communication Control | Poly-Vinyl Chloride (PVC) | Multi-Conductor |
ALPHA WIRE | 100 % | Aluminum | Poly-Vinyl Chloride (PVC) | 24 AWG | 10 | Slate | 7 | 32 AWG | Drain Wire | 0.813 mm | 0.032 in | 300 VDC | 80 °C | -20 ░C | Copper Tinned | 0.244 in | 6.2 mm | 304.8 m | 1000 ft | Foil | Communication Control | Poly-Vinyl Chloride (PVC) | Multi-Conductor |
