504187 Series

Micro-Lock 1.25mm Pitch Dual-Row Vertical Header, Beige, 38 Circuits

Manufacturer: Molex

Catalog

Micro-Lock 1.25mm Pitch Dual-Row Vertical Header, Beige, 38 Circuits

Catalog

Micro-Lock 1.25mm Pitch Dual-Row Vertical Header, Beige, 38 Circuits

Part	Mated Stacking Heights	Number of Positions Loaded	Termination	Contact Material	Fastening Type	Connector Type	Shrouding	Insulation Height	Insulation Height	Contact Type	Contact Finish - Post	Material Flammability Rating	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Insulation Color	Contact Shape	Number of Rows [custom]	Mounting Type	Number of Positions [custom]	Insulation Material	Pitch - Mating	Pitch - Mating	Style	Number of Positions

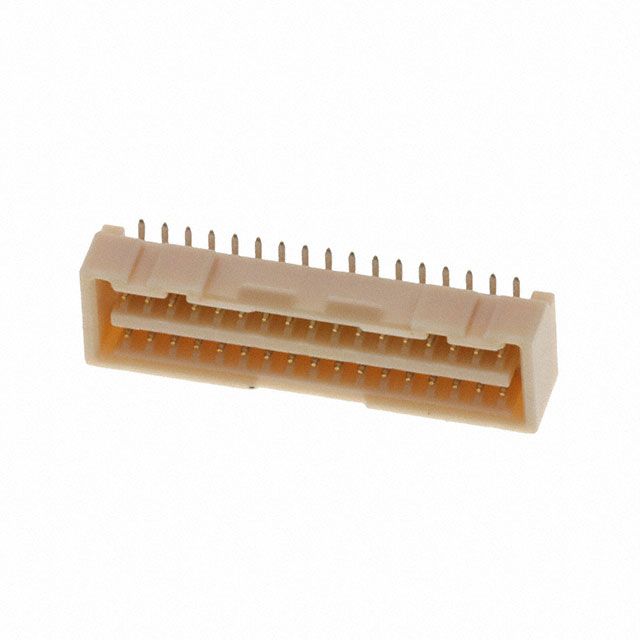

Molex 5041873470	7.95 mm	All	Solder	Brass	Latch Lock	Header	Shrouded - 4 Wall	4.8 mm	0.189 in	Male Pin	Tin	UL94 V-0	39.4 µin	1 µm	Natural	Square	2	Surface Mount	34	Glass Filled Nylon Polyamide (PA)	0.049 in	1.25 mm	Board to Cable/Wire
Molex 5041873870	7.95 mm	All	Solder	Brass	Latch Lock	Header	Shrouded - 4 Wall	4.8 mm	0.189 in	Male Pin	Tin	UL94 V-0	39.4 µin	1 µm	Natural	Square	2	Surface Mount		Glass Filled Nylon Polyamide (PA)	0.049 in	1.25 mm	Board to Cable/Wire	38
Molex 5041873670	7.95 mm	All	Solder	Brass	Latch Lock	Header	Shrouded - 4 Wall	4.8 mm	0.189 in	Male Pin	Tin	UL94 V-0	39.4 µin	1 µm	Natural	Square	2	Surface Mount		Glass Filled Nylon Polyamide (PA)	0.049 in	1.25 mm	Board to Cable/Wire	36

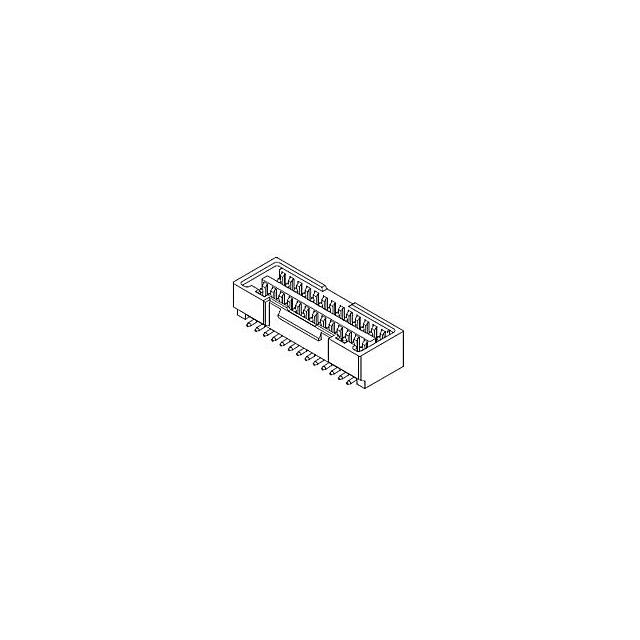

Molex 5041873070	7.95 mm	All	Solder	Brass	Latch Lock	Header	Shrouded - 4 Wall	4.8 mm	0.189 in	Male Pin	Tin	UL94 V-0	39.4 µin	1 µm	Natural	Square	2	Surface Mount		Glass Filled Nylon Polyamide (PA)	0.049 in	1.25 mm	Board to Cable/Wire	30

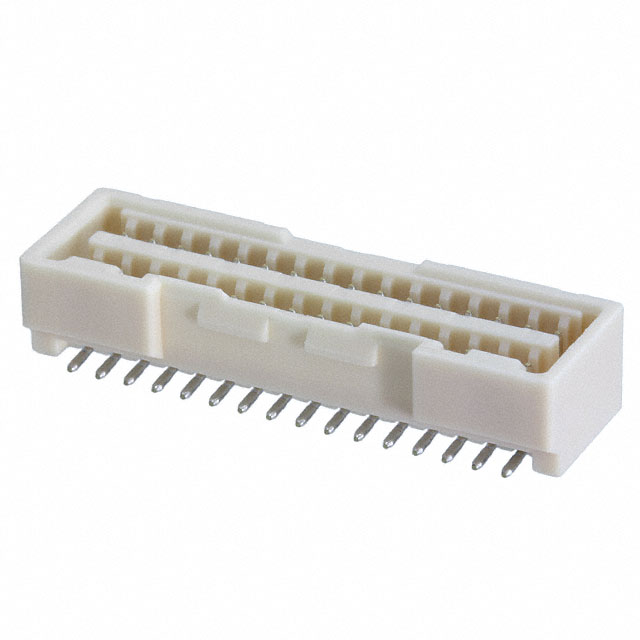

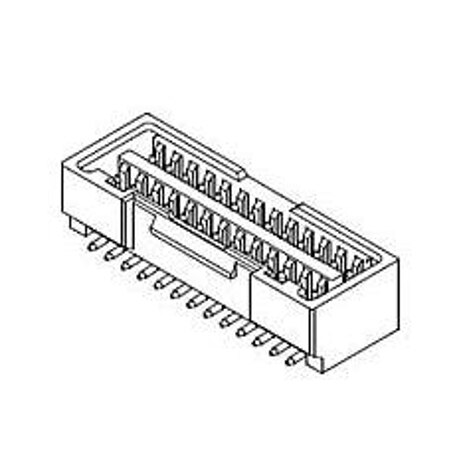

Molex 5041873270	7.95 mm	All	Solder	Brass	Latch Lock	Header	Shrouded - 4 Wall	4.8 mm	0.189 in	Male Pin	Tin	UL94 V-0	39.4 µin	1 µm	Natural	Square	2	Surface Mount		Glass Filled Nylon Polyamide (PA)	0.049 in	1.25 mm	Board to Cable/Wire

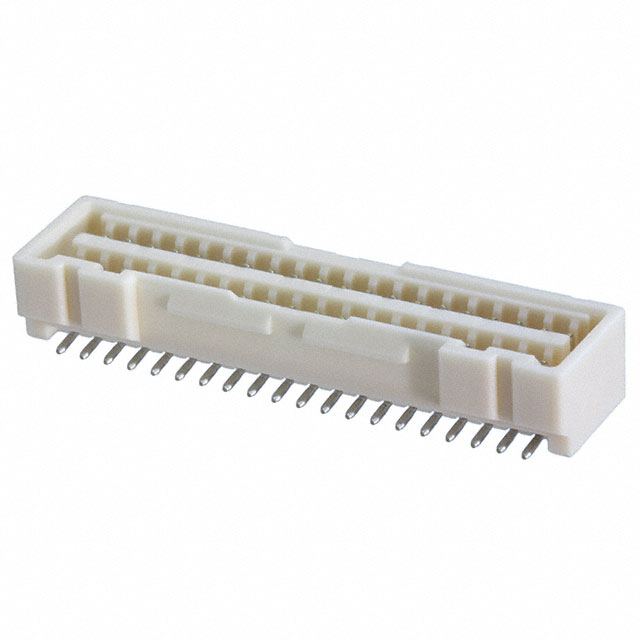

Molex 5041874070	7.95 mm	All	Solder	Brass	Latch Lock	Header	Shrouded - 4 Wall	4.8 mm	0.189 in	Male Pin	Tin	UL94 V-0	39.4 µin	1 µm	Natural	Square	2	Surface Mount		Glass Filled Nylon Polyamide (PA)	0.049 in	1.25 mm	Board to Cable/Wire	40
Molex 5041872270		All	Solder	Brass	Latch Lock	Header	Shrouded - 4 Wall	4.8 mm	0.189 in	Male Pin	Tin	UL94 V-0	39.4 µin	1 µm	Natural	Square	2	Surface Mount		Glass Filled Nylon Polyamide (PA)	0.049 in	1.25 mm	Board to Cable/Wire	22
Molex 5041872870	7.95 mm	All	Solder	Brass	Latch Lock	Header	Shrouded - 4 Wall	4.8 mm	0.189 in	Male Pin	Tin	UL94 V-0	39.4 µin	1 µm	Natural	Square	2	Surface Mount		Glass Filled Nylon Polyamide (PA)	0.049 in	1.25 mm	Board to Cable/Wire	28

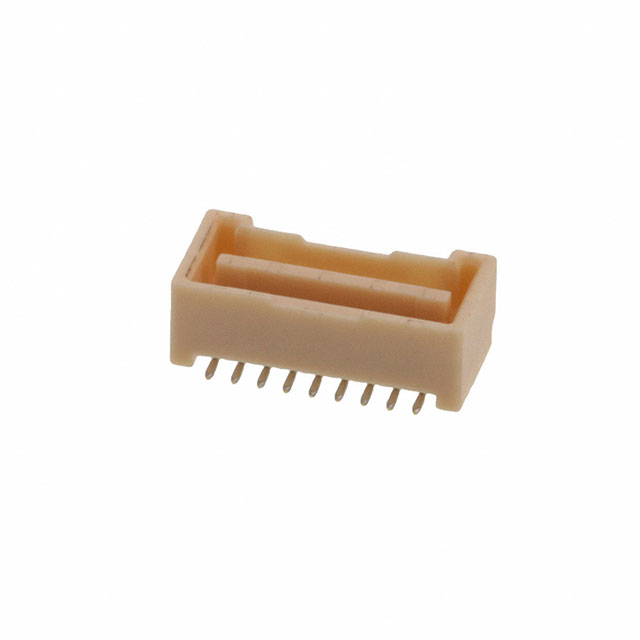

Molex 5041871870	7.95 mm	All	Solder	Brass	Latch Lock	Header	Shrouded - 4 Wall	4.8 mm	0.189 in	Male Pin	Tin	UL94 V-0	39.4 µin	1 µm	Natural	Square	2	Surface Mount		Glass Filled Nylon Polyamide (PA)	0.049 in	1.25 mm	Board to Cable/Wire	18
