1825286 Series

Catalog

SW ROCKER DIP SPST 0.025A 24V

Part	Number of Positions	Contact Material	Circuit	Washable	Body Material	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Electrical Life	Contact Finish	Features	Termination Style	Actuator Type	Actuator Level	Current Rating (Amps)	Pitch [x]	Pitch	Pitch [x]	Mechanical Life	Voltage Rating	Height Above Board	Height Above Board	Length	Length
TE Connectivity Raychem Cable Protection 1825286-4	4	Copper Alloy	SPST		Polyphenylene Sulfide (PPS)	-30 ░C	85 °C	Surface Mount	1000 Cycles	Gold	Tape Seal	Gull Wing	Rocker	Flush Recessed	25 mA	0.1 in	Full	2.54 mm	1000 Cycles	24 VDC	0.309 in	7.85 mm

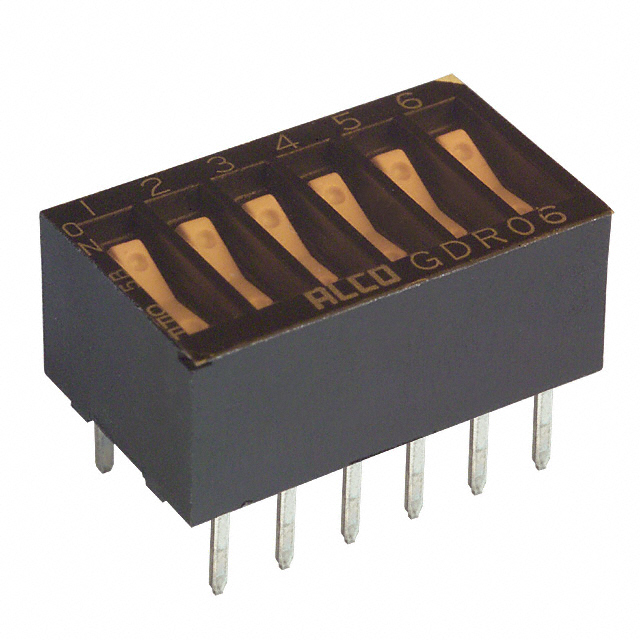

TE Connectivity Raychem Cable Protection 1825286-5	6	Copper Alloy	SPST		Polyphenylene Sulfide (PPS)	-30 ░C	85 °C	Through Hole	1000 Cycles	Gold	Tape Seal	PC Pin	Rocker	Flush Recessed	25 mA	0.1 in	Full	2.54 mm	1000 Cycles	24 VDC	0.27 in	6.85 mm	16.21 mm	0.638 in
