LERTDUWS Series

Catalog

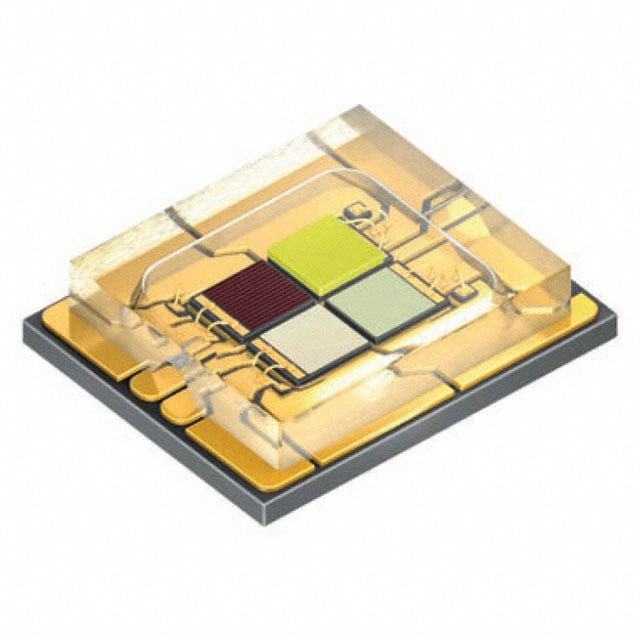

LED OSTAR RGBW 625/525/453NM SMD

Part	Wavelength	Current - Max	Current - Test [custom]	Current - Test [custom]	Current - Test [custom]	Current - Test [custom]	Color	Voltage - Forward (Vf) (Typ)	Lumens/Watt @ Current - Test	Package / Case	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Mounting Type	Size / Dimension	Size / Dimension	Temperature - Test	Supplier Device Package	Thermal Resistance of Package	Current - Max [Max]	Height - Seated (Max)	Height - Seated (Max) [Max]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Viewing Angle	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]
ams-OSRAM USA INC. LE RTDUW S2WN-KBLA-1+MANA-P+AXAZ-P+MBNB-CQ	453 nm 525 nm 625 nm	2.5 A 3 A 3 A 3 A	1 A	1 A	1 A	1 A	Blue Green Red White	2.35 V 3 V 3 V 3.6 V	49 lm/W 74 lm/W 126 lm/W	8-SMD No Lead Exposed Pad	1.22 mm	0.048 in	Surface Mount	0.184 in 0.226 in	4.68 mm 5.75 mm	25 °C	SMD
ams-OSRAM USA INC. LE RTDUWS2W-JB-1+KBLA-34+4U1V-3+LB-CQ-XX	453 nm 527 nm 625 nm						Blue Green Red White			8-SMD Module			Surface Mount			25 °C	8-SMD	1.8 °C/W	1 A	1.23 mm	0.048 in	3.45 V	3.45 V	3.6 V	2.5 V	120 °	0.184 "	4.68 mm	5.75 mm	0.226 in
