178139 Series

Catalog

(3-178139-3) DYNAMIC 3200 HDR H 6P ASSY

Part	Contact Length - Post [x]	Contact Length - Post [x]	Number of Rows	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Type	Contact Type	Material Flammability Rating	Contact Finish - Post	Applications	Insulation Material	Number of Positions	Connector Type	Insulation Height	Insulation Height	Termination	Fastening Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Style	Shrouding	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Insulation Color	Pitch - Mating	Pitch - Mating	Number of Positions Loaded	Voltage Rating	Contact Shape	Contact Finish - Mating

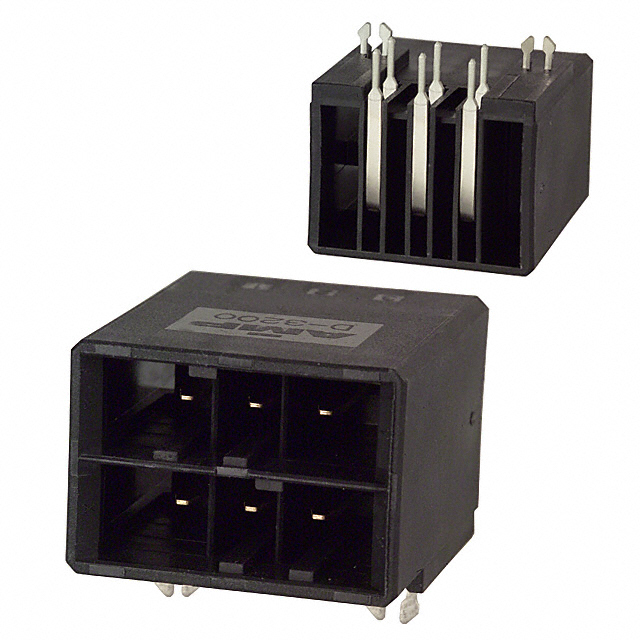

TE Connectivity Raychem Cable Protection 3-178139-3	0.15 in	3.81 mm	2	30 Áin	0.76 Ám	Through Hole Right Angle	Tab	UL94 V-0	Tin	General Purpose Industrial	Glass Filled Polyester Thermoplastic	6	Header	0.668 "	16.97 mm	Solder	Detent Lock	7.62 mm	0.3 in	Board to Board Cable	Shrouded - 4 Wall	105 ░C	-55 °C	Copper Alloy	Black	5.08 mm	0.2 in	All	600 V	Rectangular	Gold

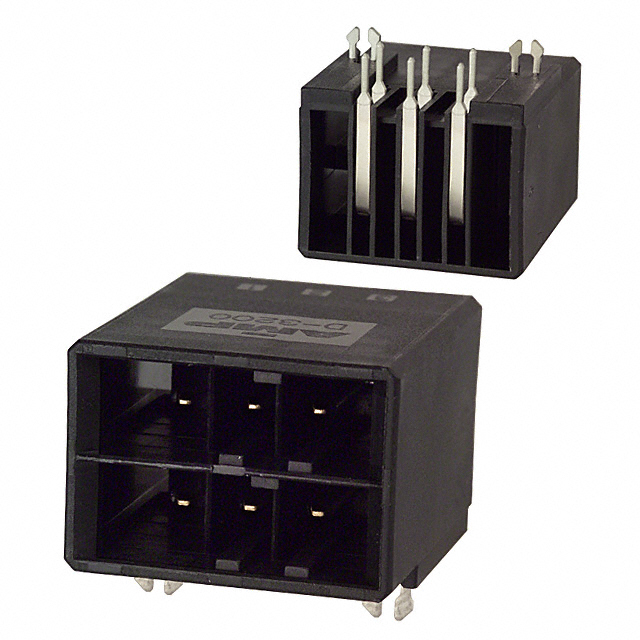

TE Connectivity Raychem Cable Protection 1-178139-3	0.15 in	3.81 mm	2	30 Áin	0.76 Ám	Through Hole Right Angle	Tab	UL94 V-0	Tin	General Purpose Industrial	Glass Filled Polyester Thermoplastic	6	Header	0.668 "	16.97 mm	Solder	Detent Lock	7.62 mm	0.3 in	Board to Board Cable	Shrouded - 4 Wall	105 ░C	-55 °C	Copper Alloy	Black	5.08 mm	0.2 in	All	600 V	Rectangular	Gold PdNi +Gold
