TRF371125 Series

0.7 - 4.0 GHz Wide Bandwidth Integrated Direct Down Conversion Receiver

Catalog

0.7 - 4.0 GHz Wide Bandwidth Integrated Direct Down Conversion Receiver

Part	Function	P1dB	Noise Figure	Voltage - Supply [Min]	Voltage - Supply [Max]	Current - Supply	Package / Case	LO Frequency [Max]	LO Frequency [Min]	Gain	Mounting Type	Supplier Device Package	RF Frequency [Min]	RF Frequency [Max]	For Use With/Related Products	Frequency [Max]	Frequency [Min]	Supplied Contents
Texas Instruments TRF371125IRGZT	Amplifier Demodulator	3 dBV	13.5 dB	4.5 V	5.5 V	360 mA	48-VFQFN Exposed Pad	4 GHz	700 MHz	40 dBi	Surface Mount	48-VQFN (7x7)	700 MHz	4 GHz

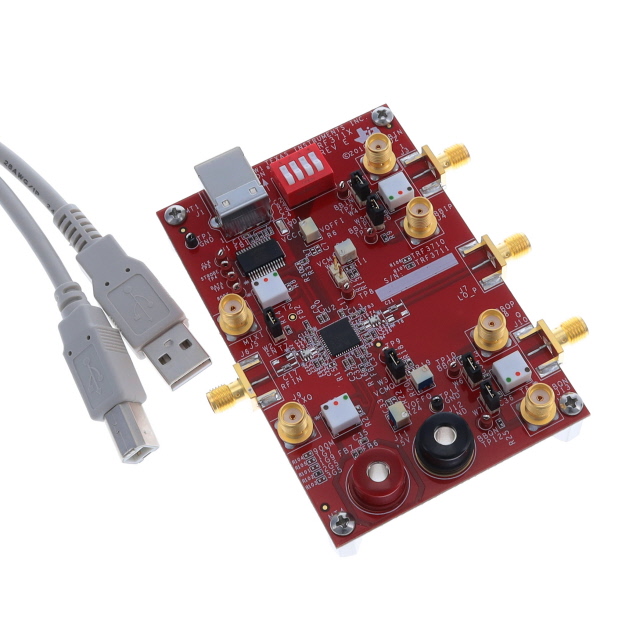

Texas Instruments TRF371125EVM															TRF371125	4 GHz	700 MHz	Board(s) Cable(s)

Catalog

0.7 - 4.0 GHz Wide Bandwidth Integrated Direct Down Conversion Receiver

Key Features

• Frequency Range: 700 MHz to 4000 MHzIntegrated Baseband Programmable-Gain AmplifierOn-Chip Programmable Baseband FilterHigh Out-of-Band IP3: 24 dBm at 2400 MHzHigh Out-of-Band IP2: 60 dBm at 2400 MHzHardware and Software Power DownThree-Wire Serial InterfaceSingle Supply: 4.5-V to 5.5-V OperationSilicon Germanium TechnologyAPPLICATIONSMulticarrier Wireless InfrastructureWiMAXHigh-Linearity Direct-Downconversion ReceiverLTE (Long Term Evolution)All trademarks are the property of their respective owners.Frequency Range: 700 MHz to 4000 MHzIntegrated Baseband Programmable-Gain AmplifierOn-Chip Programmable Baseband FilterHigh Out-of-Band IP3: 24 dBm at 2400 MHzHigh Out-of-Band IP2: 60 dBm at 2400 MHzHardware and Software Power DownThree-Wire Serial InterfaceSingle Supply: 4.5-V to 5.5-V OperationSilicon Germanium TechnologyAPPLICATIONSMulticarrier Wireless InfrastructureWiMAXHigh-Linearity Direct-Downconversion ReceiverLTE (Long Term Evolution)All trademarks are the property of their respective owners.

Description

The TRF371125 is a highly linear and integrated direct-conversion quadrature demodulator. The TRF371125 integrates balanced I and Q mixers, LO buffers, and phase splitters to convert an RF signal directly to I and Q baseband. The on-chip programmable-gain amplifiers allow adjustment of the output signal level without the need for external variable-gain (attenuator) devices. The TRF371125 integrates programmable baseband low-pass filters that attenuate nearby interference, eliminating the need for an external baseband filter. Housed in a 7-mm × 7-mm QFN package, the TRF371125 provides the smallest and most integrated receiver solution available for high-performance equipment. The TRF371125 is a highly linear and integrated direct-conversion quadrature demodulator. The TRF371125 integrates balanced I and Q mixers, LO buffers, and phase splitters to convert an RF signal directly to I and Q baseband. The on-chip programmable-gain amplifiers allow adjustment of the output signal level without the need for external variable-gain (attenuator) devices. The TRF371125 integrates programmable baseband low-pass filters that attenuate nearby interference, eliminating the need for an external baseband filter. Housed in a 7-mm × 7-mm QFN package, the TRF371125 provides the smallest and most integrated receiver solution available for high-performance equipment.
