7924A Series
Manufacturer: Belden Inc.
Beta
⌘K

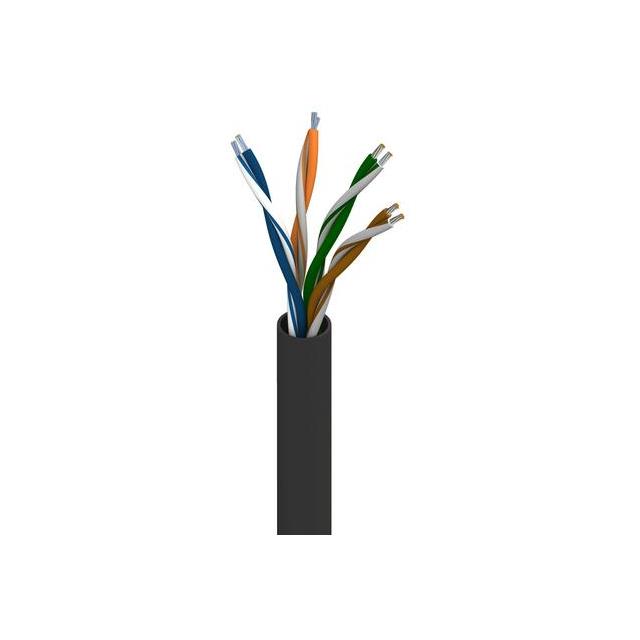

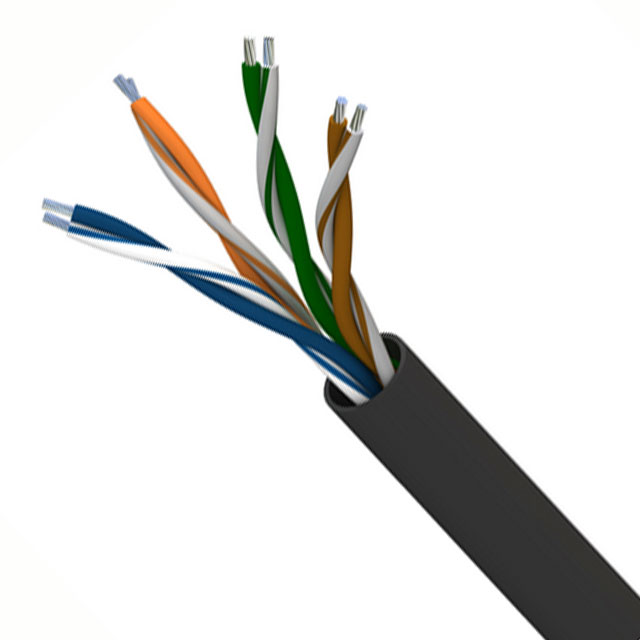

CABLE CAT5E 8CON 24AWG BLK
| Part | Jacket Color | Conductor Material | Wire Gauge | Number of Conductors | Voltage | Features | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Material | Usage | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Operating Temperature [Min] | Operating Temperature [Max] | Conductor Insulation | Conductor Insulation | Cable Type | Ratings | Length | Length | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Black | Copper Tinned | 24 AWG | 8 | 300 VDC | Oil Resistant UV Resistant | 7 | 32 AWG | Poly-Vinyl Chloride (PVC) | Industrial Network | 0.03 in | 0.762 mm | -40 C | 75 ░C | Polyolefin | PO | Multi-Pair Cat5e | UL Style CMR | ||||
Belden Inc. | Teal | Copper Tinned | 24 AWG | 8 | 300 VDC | Oil Resistant UV Resistant | 7 | 32 AWG | Poly-Vinyl Chloride (PVC) | Industrial Network | 0.03 in | 0.762 mm | -40 C | 75 ░C | Polyolefin | PO | Multi-Pair Cat5e | UL Style CMR | 304.8 m | 1000 ft | ||
Belden Inc. | Black | Copper Tinned | 24 AWG | 8 | 300 VDC | Oil Resistant UV Resistant | 7 | 32 AWG | Poly-Vinyl Chloride (PVC) | Industrial Network | 0.03 in | 0.762 mm | -40 C | 75 ░C | Polyolefin | PO | Multi-Pair Cat5e | UL Style CMR | 2000 ft | 609.6 m | ||
 Belden Inc. | Red | Copper Tinned | 24 AWG | 8 | 300 VDC | Oil Resistant UV Resistant | 7 | 32 AWG | Poly-Vinyl Chloride (PVC) | Industrial Network | 0.03 in | 0.762 mm | -40 C | 75 ░C | Polyolefin | PO | Multi-Pair Cat5e | UL Style CMR | 304.8 m | 1000 ft | ||
Belden Inc. | Blue | Copper Tinned | 24 AWG | 8 | 300 VDC | Oil Resistant UV Resistant | 7 | 32 AWG | Poly-Vinyl Chloride (PVC) | Industrial Network | 0.03 in | 0.762 mm | -40 C | 75 ░C | Polyolefin | PO | Multi-Pair Cat5e | UL Style CMR | 304.8 m | 1000 ft | ||
Belden Inc. | Black | Copper Tinned | 24 AWG | 8 | Oil Resistant UV Resistant | 7 | 32 AWG | Poly-Vinyl Chloride (PVC) | Network | 0.03 in | 0.762 mm | -40 C | 75 ░C | Polyolefin | PO | Multi-Pair Cat5 | 15.24 m 152.4 m 304.8 m | 50 ft 500 ft 1000 ft | 100 ft | 30.5 m |
