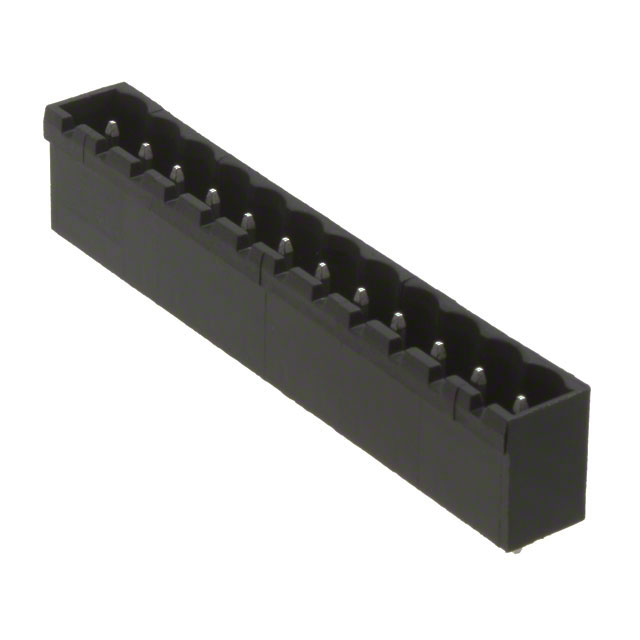

TERM BLOCK HDR 21POS VERT 5.08MM
| Part | Insulation Height | Insulation Height | Termination Style | Color | Operating Temperature [Min] | Operating Temperature [Max] | Number of Levels | Number of Positions | Contact Tail Length | Contact Tail Length | Voltage - UL | Mounting Type | Material Flammability Rating | Contact Mating Finish | Pitch [x] | Pitch [x] | Header Orientation | Type | Contact Material | Positions Per Level |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Molex | 0.472 in | 12 mm | Solder | Black | -40 °C | 105 ░C | 1 | 21 | 0.15 in | 3.81 mm | 300 V | Through Hole | UL94 V-0 | Tin | 0.2 in | 5.08 mm | Vertical | Header Male Pins Shrouded (2 Side) | Brass | 21 |
 Molex | 0.472 in | 12 mm | Solder | Black | -40 °C | 105 ░C | 1 | 12 | 0.13 in | 3.3 mm | 300 V | Through Hole | UL94 V-0 | Tin | 0.2 in | 5.08 mm | Vertical | Header Male Pins Shrouded (4 Side) | Brass | 12 |
 Molex | 0.472 in | 12 mm | Solder | Black | -40 °C | 105 ░C | 1 | 11 | 0.13 in | 3.3 mm | 300 V | Through Hole | UL94 V-0 | Tin | 0.2 in | 5.08 mm | Vertical | Header Male Pins Shrouded (4 Side) | Brass | 11 |
Molex | 0.472 in | 12 mm | Solder | Black | -40 °C | 140 °C | 1 | 6 | 0.13 in | 3.3 mm | 300 V | Through Hole | UL94 V-0 | Gold | 0.2 in | 5.08 mm | Vertical | Header Male Pins Shrouded (4 Side) | Brass | 6 |
Molex | 0.472 in | 12 mm | Solder | Black | -40 °C | 105 ░C | 1 | 0.13 in | 3.3 mm | 300 V | Through Hole | UL94 V-0 | Tin | 0.2 in | 5.08 mm | Vertical | Header Male Pins Shrouded (4 Side) | Brass | 17 | |
Molex | 0.472 in | 12 mm | Solder | Black | -40 °C | 105 ░C | 1 | 20 | 0.13 in | 3.3 mm | 300 V | Through Hole | UL94 V-0 | Tin | 0.2 in | 5.08 mm | Vertical | Header Male Pins Shrouded (4 Side) | Brass | 20 |
Molex | 0.472 in | 12 mm | Solder | Green | -40 °C | 105 ░C | 1 | 14 | 0.13 in | 3.3 mm | 300 V | Through Hole | UL94 V-0 | Gold | 0.2 in | 5.08 mm | Vertical | Header Male Pins Shrouded (4 Side) | Brass | 14 |
Molex | 0.472 in | 12 mm | Solder | Black | -40 °C | 105 ░C | 1 | 8 | 0.15 in | 3.81 mm | 300 V | Through Hole | UL94 V-0 | Gold | 0.2 in | 5.08 mm | Vertical | Header Male Pins Shrouded (2 Side) | Brass | 8 |
Molex | 0.472 in | 12 mm | Solder | Green | -40 °C | 105 ░C | 1 | 24 | 0.15 in | 3.81 mm | 300 V | Through Hole | UL94 V-0 | Tin | 0.2 in | 5.08 mm | Vertical | Header Male Pins Shrouded (2 Side) | Brass | |
Molex | 0.472 in | 12 mm | Solder | Black | -40 °C | 105 ░C | 1 | 10 | 0.15 in | 3.81 mm | 300 V | Through Hole | UL94 V-0 | Gold | 0.2 in | 5.08 mm | Vertical | Header Male Pins Shrouded (2 Side) | Brass | 10 |
