CFM500 Series

Manufacturer: Cincon Electronics Co. LTD

Catalog

AC/DC CONVERTER 12V 250W

Part	Efficiency	Standard Number	Voltage - Isolation	Type	Operating Temperature [Max]	Operating Temperature [Min]	Approval Agency	Power (Watts)	Power (Watts)	Current - Output 1	Applications	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Features	Number of Outputs	Mounting Type	Voltage - Output 1	Voltage - Input [Min]	Voltage - Input [Max]

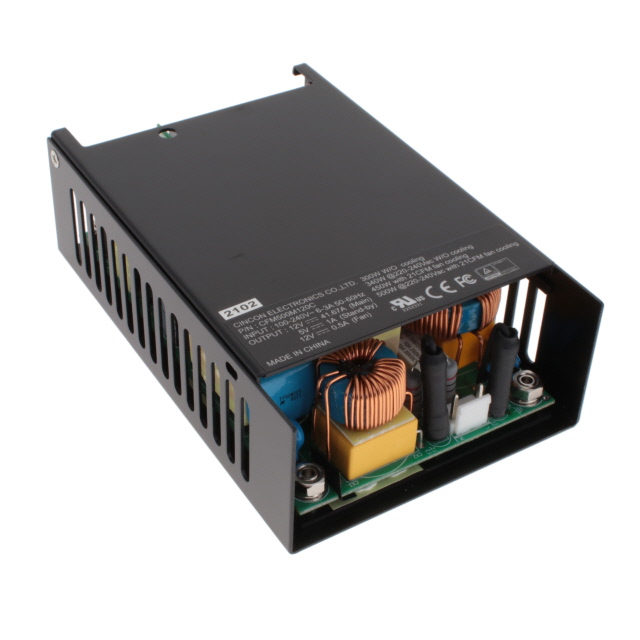

Cincon Electronics Co. LTD CFM500M120C	91.5 %	60335-1 60601-1	4000 V	Enclosed	85 °C	-30 °C	ANSI/AAMI ES IEC	500 W	250 W	20.83 A	Household Appliances Medical	5.35 in	1.67 in	42.5 mm	3.43 in	87 mm	136 mm	Adjustable Output PFC Remote On/Off Remote Sense Standby Output Universal Input	1	Chassis Mount	12 V

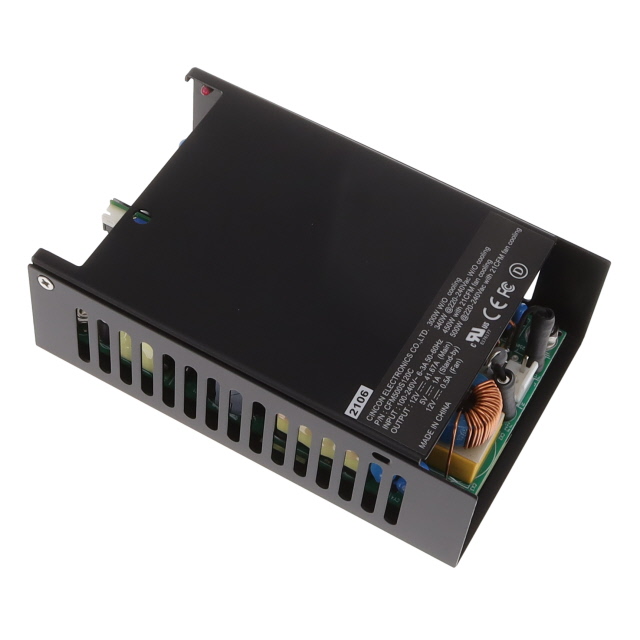

Cincon Electronics Co. LTD CFM500S120C	91.5 %	60335-1 62368-1	4000 V	Enclosed	85 °C	-40 °C	CE cURus D-Mark FCC	500 W	330 W	27.5 A	Household Appliances ITE (Commercial)	5.35 in	1.67 in	42.5 mm	3.43 in	87 mm	136 mm	Adjustable Output Baseplate PFC Remote On/Off Standby Output Universal Input	1	Chassis Mount	12 V	80 VAC	264 VAC

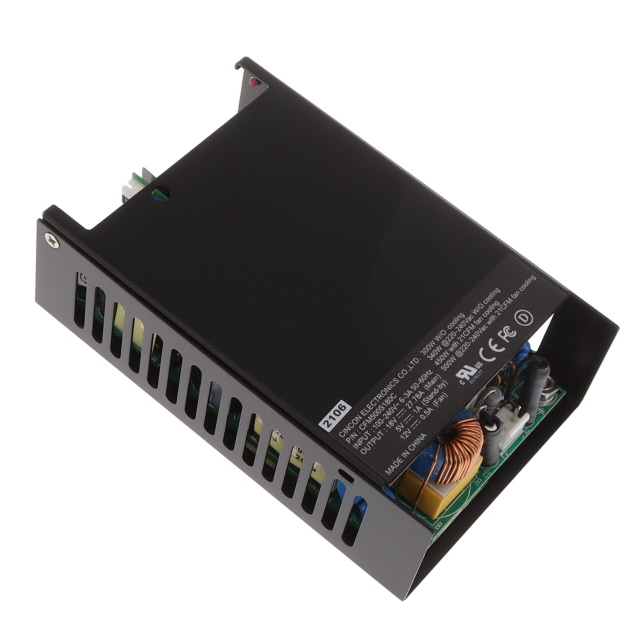

Cincon Electronics Co. LTD CFM500S180C	92.5 %	60335-1 62368-1	4000 V	Enclosed	85 °C	-40 °C	CE cURus D-Mark FCC	500 W	330 W	18.33 A	Household Appliances ITE (Commercial)	5.35 in	1.67 in	42.5 mm	3.43 in	87 mm	136 mm	Adjustable Output Baseplate PFC Remote On/Off Standby Output Universal Input	1	Chassis Mount	18 V	80 VAC	264 VAC
Cincon Electronics Co. LTD CFM500M180C		60335-1 60601-1	4000 V	Enclosed	85 °C	-30 °C	ANSI/AAMI ES IEC				Household Appliances Medical	5.35 in	1.67 in	42.5 mm	3.43 in	87 mm	136 mm	Adjustable Output PFC Remote On/Off Remote Sense Standby Output Universal Input	1	Chassis Mount	18 V
Cincon Electronics Co. LTD CFM500S120	91.5 %	60335-1 62368-1	4000 V	Open Frame	85 °C	-40 °C	CE cURus D-Mark FCC	500 W	300 W	25 A	Household Appliances ITE (Commercial)	5 "	1.54 in	39.1 mm	3 "	76.2 mm	127 mm	Adjustable Output Baseplate PFC Remote On/Off Standby Output Universal Input	1	Chassis Mount	12 V	80 VAC	264 VAC

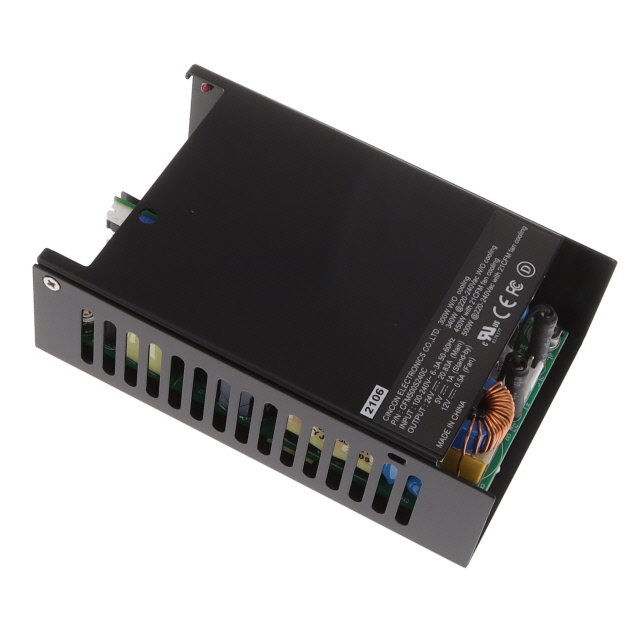

Cincon Electronics Co. LTD CFM500S240C	93 %	60335-1 62368-1	4000 V	Enclosed	85 °C	-40 °C	CE cURus D-Mark FCC	500 W	410 W	17.08 A	Household Appliances ITE (Commercial)	5.35 in	1.67 in	42.5 mm	3.43 in	87 mm	136 mm	Adjustable Output Baseplate PFC Remote On/Off Standby Output Universal Input	1	Chassis Mount	24 V	80 VAC	264 VAC
Cincon Electronics Co. LTD CFM500M180		60335-1 60601-1	4000 V	Open Frame	85 °C	-30 °C	ANSI/AAMI ES IEC				Household Appliances Medical	5 "	1.54 in	39.1 mm	3 "	76.2 mm	127 mm	Adjustable Output PFC Remote On/Off Remote Sense Standby Output Universal Input	1	Chassis Mount	18 V

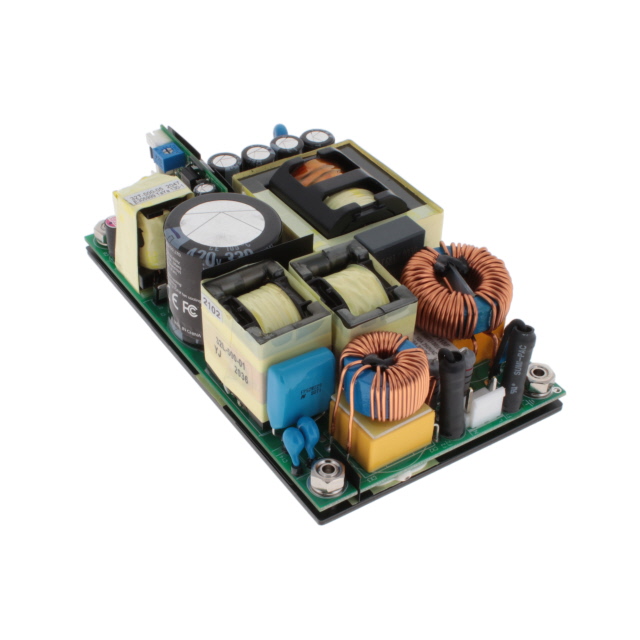

Cincon Electronics Co. LTD CFM500M240	93 %	60335-1 60601-1	4000 V	Open Frame	85 °C	-30 °C	ANSI/AAMI ES IEC		320 W 500 W	13.33 A	Household Appliances Medical	5 "	1.54 in	39.1 mm	3 "	76.2 mm	127 mm	Adjustable Output PFC Remote On/Off Remote Sense Standby Output Universal Input	1	Chassis Mount	24 V

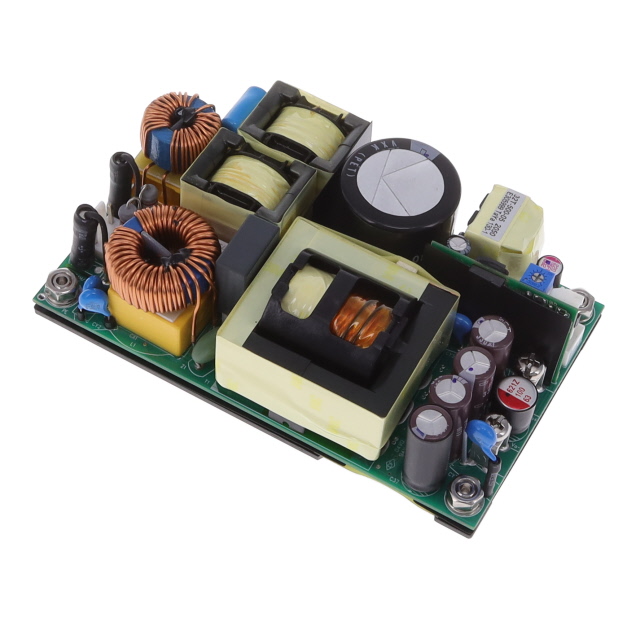

Cincon Electronics Co. LTD CFM500S480	94 %	60335-1 62368-1	4000 V	Open Frame	85 °C	-40 °C	CE cURus D-Mark FCC	500 W	380 W	7.92 A	Household Appliances ITE (Commercial)	5 "	1.54 in	39.1 mm	3 "	76.2 mm	127 mm	Adjustable Output Baseplate PFC Remote On/Off Standby Output Universal Input	1	Chassis Mount	48 V	80 VAC	264 VAC

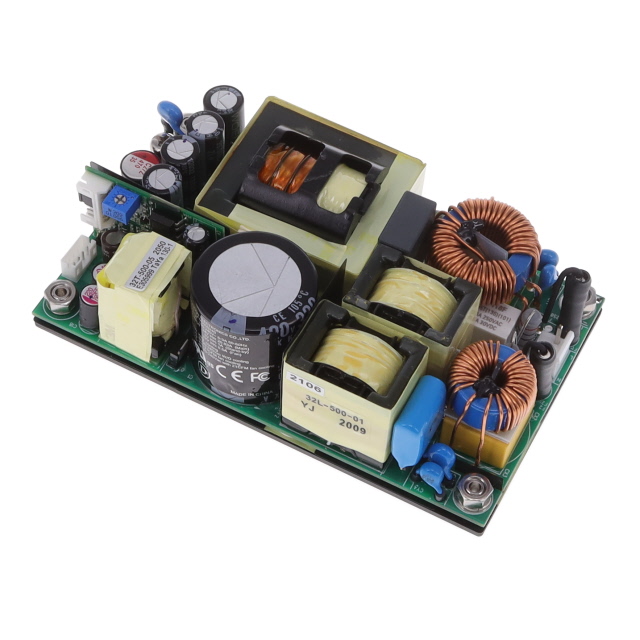

Cincon Electronics Co. LTD CFM500S240	93 %	60335-1 62368-1	4000 V	Open Frame	85 °C	-40 °C	CE cURus D-Mark FCC	500 W	380 W	15.83 A	Household Appliances ITE (Commercial)	5 "	1.54 in	39.1 mm	3 "	76.2 mm	127 mm	Adjustable Output Baseplate PFC Remote On/Off Standby Output Universal Input	1	Chassis Mount	24 V	80 VAC	264 VAC
