H21A Series

Catalog

SENSOR OPT SLOT PHOTOTRAN PC PIN

Part	Voltage - Collector Emitter Breakdown (Max) [Max]	Package / Case	Sensing Distance	Sensing Distance	Output Configuration	Mounting Type	Type	Response Time	Sensing Method	Current - Collector (Ic) (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Current - DC Forward (If) (Max)	Voltage - Collector Emitter Breakdown (Max)

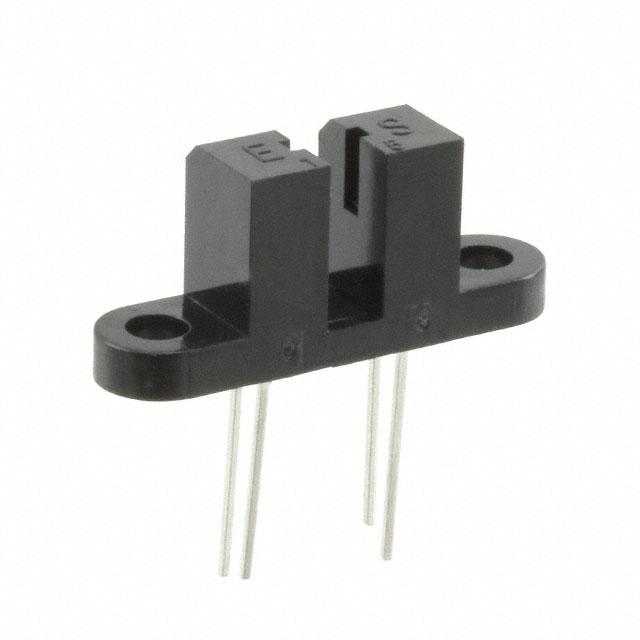

ON Semiconductor H21A1	30 V	PC Pins Slotted	3 mm	0.118 in	Phototransistor	Through Hole Flange	Unamplified	8 µs 150 µs	Through-Beam	20 mA	100 °C	-55 °C	50 mA
ON Semiconductor H21A6		PC Pins Slotted	3 mm	0.118 in	Phototransistor	Through Hole Flange	Unamplified	8 µs 50 µs	Through-Beam	20 mA	100 °C	-55 °C	50 mA	55 V
ON Semiconductor H21A3	30 V	PC Pins Slotted	3 mm	0.118 in	Phototransistor	Through Hole Flange	Unamplified	8 µs 150 µs	Through-Beam	20 mA	100 °C	-55 °C	50 mA
ON Semiconductor H21A2	30 V	PC Pins Slotted	3 mm	0.118 in	Phototransistor	Through Hole Flange	Unamplified	8 µs 150 µs	Through-Beam	20 mA	100 °C	-55 °C	50 mA
ON Semiconductor H21A4		PC Pins Slotted	3 mm	0.118 in	Phototransistor	Through Hole Flange	Unamplified	8 µs 50 µs	Through-Beam	20 mA	100 °C	-55 °C	50 mA	55 V
