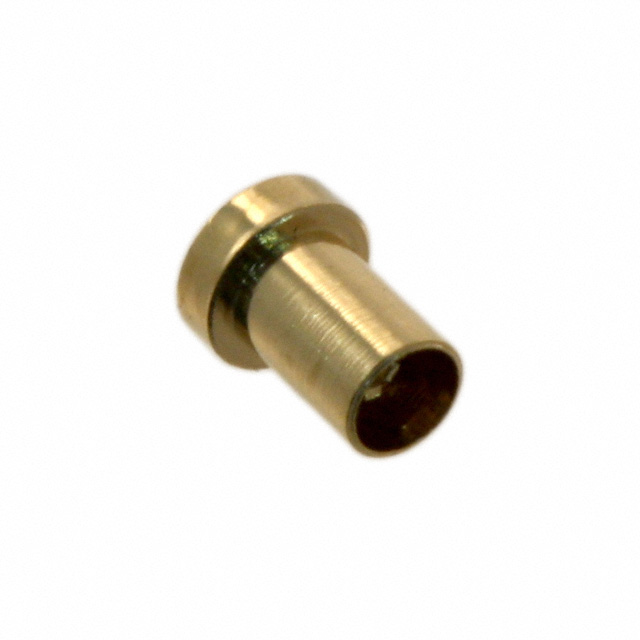

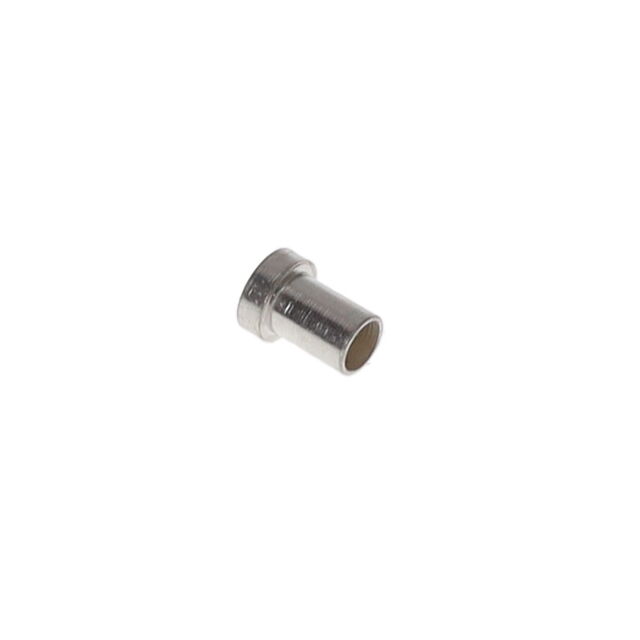

0305-1 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN PIN RCPT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Socket Depth	Socket Depth	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Tail Type	Mounting Hole Diameter [diameter]	Mounting Hole Diameter	Contact Finish	Flange Diameter [diameter]	Flange Diameter [diameter]	Accepts Square Pin Size	Accepts Square Pin Size	Length - Overall	Length - Overall [x]	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Termination	Contact Material	Contact Finish Thickness	Contact Finish Thickness
Mill-Max Manufacturing Corp. 0305-1-15-15-47-14-10-0	-55 C	125 °C	3.94 mm	0.155 in	0.64 mm	0.037 in	0.94 mm	0.025 in	No Tail	0.061 "	1.55 mm	Gold	0.076 in	1.93 mm	0.025 in	0.64 mm	2.67 mm	0.105 in	0.051 in	1.3 mm	Solder	Beryllium Copper	0.25 Ám	10 Áin
Mill-Max Manufacturing Corp. 0305-1-15-80-47-27-10-0	-55 C	125 °C	3.94 mm	0.155 in	0.64 mm	0.037 in	0.94 mm	0.025 in	No Tail	0.061 "	1.55 mm	Gold	0.076 in	1.93 mm	0.025 in	0.64 mm	2.67 mm	0.105 in	0.051 in	1.3 mm	Solder	Beryllium Copper	0.76 Ám	30 Áin
Mill-Max Manufacturing Corp. 0305-1-15-80-47-14-10-0	-55 C	125 °C	3.94 mm	0.155 in	0.64 mm	0.037 in	0.94 mm	0.025 in	No Tail	0.061 "	1.55 mm	Gold	0.076 in	1.93 mm	0.025 in	0.64 mm	2.67 mm	0.105 in	0.051 in	1.3 mm	Solder	Beryllium Copper	0.25 Ám	10 Áin
Mill-Max Manufacturing Corp. 0305-1-15-01-47-14-10-0	-55 C	125 °C	2.67 mm	0.105 in	0.64 mm	0.037 in	0.94 mm	0.025 in	No Tail	0.061 "	1.55 mm	Gold	0.076 in	1.93 mm	0.025 in	0.64 mm	2.67 mm	0.105 in	0.051 in	1.3 mm	Solder	Beryllium Copper	0.25 Ám	10 Áin
Mill-Max Manufacturing Corp. 0305-1-15-15-47-27-10-0	-55 C	125 °C	2.67 mm	0.105 in	0.64 mm	0.037 in	0.94 mm	0.025 in	No Tail	0.061 "	1.55 mm	Gold	0.076 in	1.93 mm	0.025 in	0.64 mm	2.67 mm	0.105 in	0.051 in	1.3 mm	Solder	Beryllium Copper	0.76 Ám	30 Áin
Mill-Max Manufacturing Corp. 0305-1-15-01-47-01-10-0	-55 C	125 °C	2.67 mm	0.105 in	0.64 mm	0.037 in	0.94 mm	0.025 in	No Tail	0.061 "	1.55 mm	Tin-Lead	0.076 in	1.93 mm	0.025 in	0.64 mm	2.67 mm	0.105 in	0.051 in	1.3 mm	Solder	Beryllium Copper	5.08 Ám	200 Áin
