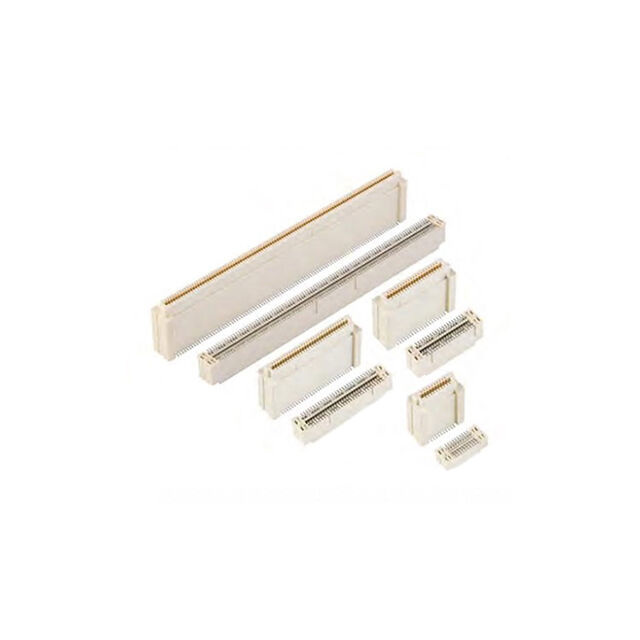

61082 Series

Catalog

CONN RCPT 100POS SMD GOLD

...

Part	Pitch [x]	Pitch [x]	Number of Rows	Number of Positions	Height Above Board	Height Above Board	Mounting Type	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Mated Stacking Heights	Height Above Board	Features	Height Above Board [z]	Height Above Board [z]
Amphenol ICC (FCI) 61082-103622LF	0.8 mm	0.031 in	2	100	0.461 in	11.7 mm	Surface Mount	Gold	4 Áin	0.1 Ám	Receptacle Outer Shroud Contacts	13 mm 14 mm 15 mm 16 mm
Amphenol ICC (FCI) 61082-101602LF	0.8 mm	0.031 in	2	100	3.7 mm		Surface Mount	Gold	4 Áin	0.1 Ám	Receptacle Outer Shroud Contacts	5 mm 6 mm 7 mm 8 mm	0.146 in	Board Guide
Amphenol ICC (FCI) 61082-142009LF	0.8 mm	0.031 in	2	140			Surface Mount	Gold	8 çin	0.203 çm	Receptacle Outer Shroud Contacts	9 mm 10 mm 11 mm 12 mm		Board Guide	0.303 in	7.7 mm

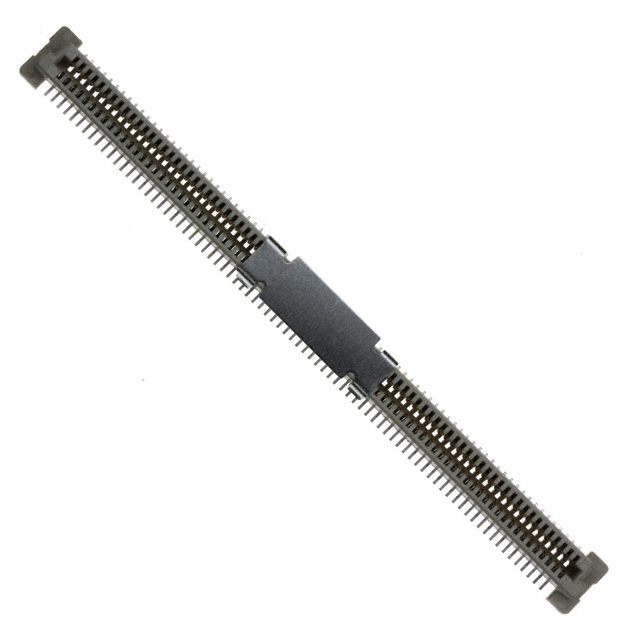

Amphenol ICC (FCI) 61082-161402LF	0.8 mm	0.031 in	2	160	3.7 mm		Surface Mount	Gold	8 çin	0.203 çm	Receptacle Outer Shroud Contacts	5 mm 6 mm 7 mm 8 mm	0.146 in	Board Guide

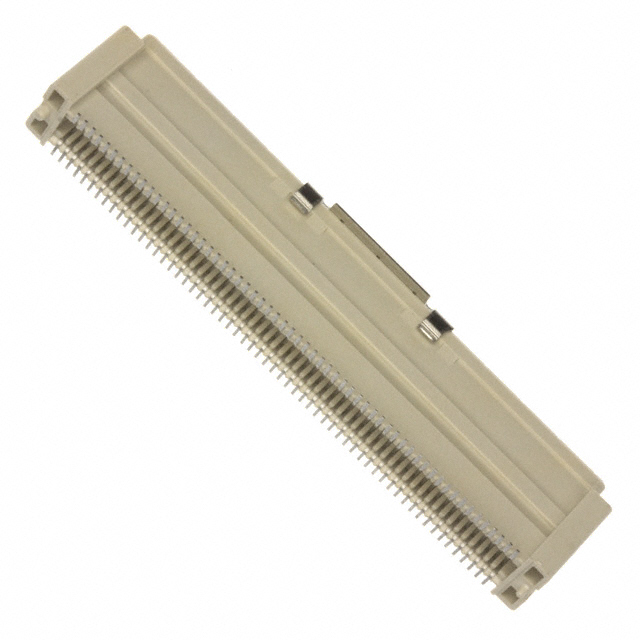

Amphenol ICC (FCI) 61082-123402LF	0.8 mm	0.031 in	2	120	0.461 in	11.7 mm	Surface Mount	Gold	8 çin	0.203 çm	Receptacle Outer Shroud Contacts	13 mm 14 mm 15 mm 16 mm		Board Guide
Amphenol ICC (FCI) 61082-061502LF	0.8 mm	0.031 in	2	60	3.7 mm		Surface Mount	Gold	15 µin	0.38 µm	Receptacle Outer Shroud Contacts	5 mm 6 mm 7 mm 8 mm	0.146 in	Board Guide
Amphenol ICC (FCI) 61082-064506LF	0.8 mm	0.031 in	2	60			Surface Mount	Gold	15 µin	0.38 µm	Receptacle Outer Shroud Contacts	17 mm 18 mm 19 mm 20 mm		Board Guide
Amphenol ICC (FCI) 61082-103506LF	0.8 mm	0.031 in	2	100	0.461 in	11.7 mm	Surface Mount	Gold	15 µin	0.38 µm	Receptacle Outer Shroud Contacts	13 mm 14 mm 15 mm 16 mm		Board Guide
Amphenol ICC (FCI) 61082-042606LF	0.8 mm	0.031 in	2	40			Surface Mount	Gold	4 Áin	0.1 Ám	Receptacle Outer Shroud Contacts	9 mm 10 mm 11 mm 12 mm		Board Guide	0.303 in	7.7 mm
Amphenol ICC (FCI) 61082-044606LF	0.8 mm	0.031 in	2	40			Surface Mount	Gold	4 Áin	0.1 Ám	Receptacle Outer Shroud Contacts	17 mm 18 mm 19 mm 20 mm		Board Guide
