TR9CE9200 Series
Manufacturer: GlobTek, Inc.
Beta
⌘K

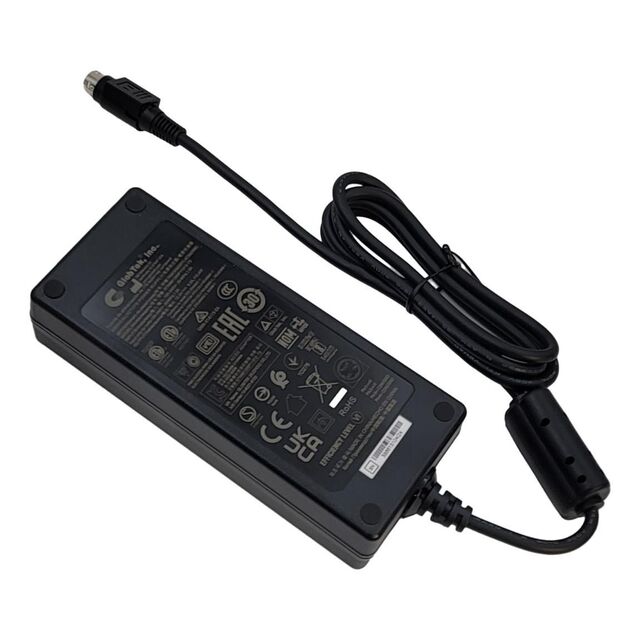

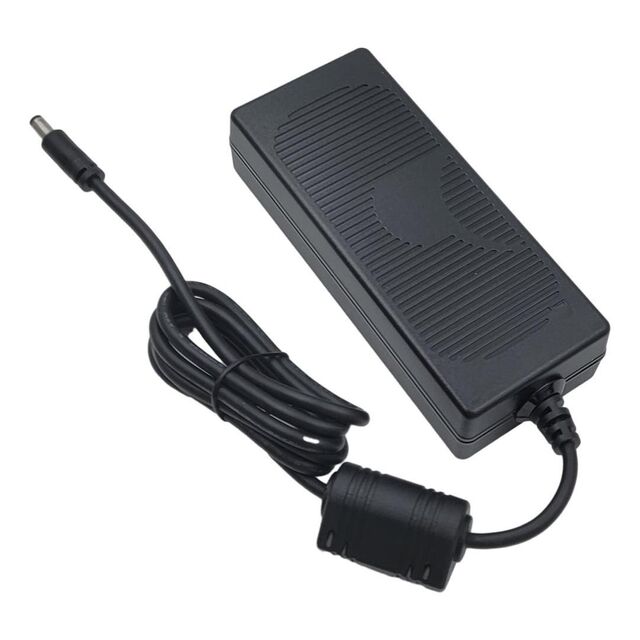

AC/DC DESKTOP ADAPTER 12V 110W
| Part | No Load Power Consumption | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Applications | Output Connector [diameter] | Output Connector | Output Connector [x] | Operating Temperature [Min] | Operating Temperature [Max] | Efficiency | Input Type | Voltage - Input [Max] | Voltage - Input [Min] | Current - Output (Max) [Max] | Voltage - Output | Region Utilized | Cord Length | Cord Length | Power (Watts) | Standard Number | Approval Agency | Input Connector | Form | Polarization |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 GlobTek, Inc. | 150 mW | 34 mm | 1.34 " | 5.88 " | 149.3 mm | 2.47 " | 62.8 mm | Household Appliances ITE (Commercial) Medical | 2.5 mm 5.5 mm | Barrel Plug | 11 mm | -20 ░C | 40 °C | Level VI | Cord (Sold Separately) | 264 VAC | 90 VAC | 9.2 A | 12 V | International | 1.2 m | 47.2 in | 110 W | 60335-1 60601-1-11 60601-1-2 60950-1 61347-1 62368-1 | BSMI CB CCC CE cETLus EAC ETL PSE S-Mark UkrSEPRO VCCI | IEC 320-C14 | Desktop (Class I) | Positive Center |
 GlobTek, Inc. | 150 mW | 34 mm | 1.34 " | 5.88 " | 149.3 mm | 2.47 " | 62.8 mm | Household Appliances ITE (Commercial) Medical | Power DIN 4 Pin | -10 °C | 40 °C | CoC Tier 2 Level VI | Cord (Sold Separately) | 264 VAC | 90 VAC | 9.2 A | 12 V | International | 1.2 m | 47.2 in | 110 W | 60335-1 60601-1-11 60601-1-2 60950-1 61347-1 62368-1 | BSMI CB CCC CE cETLus EAC ETL PSE S-Mark UkrSEPRO VCCI | IEC 320-C14 | Desktop (Class I) | Positive Center |
