109P0405 Series

Catalog

FAN AXIAL 40X20MM BALL 5VDC WIRE

Part	Current Rating (Amps)	Material - Frame	Material - Blade	Air Flow	Air Flow	Voltage Range [Max]	Voltage Range [Min]	Air Flow	Fan Type	Noise	Static Pressure	Static Pressure	Weight	Weight	Bearing Type	Features	Power (Watts)	Voltage - Rated	Approval Agency	Operating Temperature [Min]	Operating Temperature [Max]	Width [y]	Termination	RPM	Size / Dimension [x]	Size / Dimension [z]	Weight [custom]	Weight [custom]	Lifetime @ Temp.	Width [x]	Operating Temperature [Max]	Operating Temperature [Min]
Sanyo Denki America Inc. 109P0405F601	0.25 A	Plastic	Plastic	0.182 m³/min 6.5 CFM	0.182 mł/min	5.5 V	4.5 V	6.5 CFM	Tubeaxial	28 dB	0.181 in H2O	45.1 Pa	45.81 g	0.101 lb	Ball	Speed Sensor (Tach)	1.25 W	5 V	CSA TUV UL	-20 ░C	70 °C	20 mm	3 Wire Leads	6500 RPM	40 mm	40 mm
Sanyo Denki America Inc. 109P0405M7D01	0.21 A	Plastic	Plastic	0.148 m³/min		5.5 V	4.5 V	5.3 CFM	Tubeaxial	24 dB	0.213 in H2O	53 Pa			Ball	Locked Rotor Sensor	1.05 W	5 V	CSA TUV UL	-20 ░C	70 °C	15 mm	3 Wire Leads	6500 RPM	40 mm	40 mm	32.21 g	0.071 lb
Sanyo Denki America Inc. 109P0405H9D01		Plastic	Plastic	0.148 m³/min		5.5 V	4.5 V	5.3 CFM	Tubeaxial	25 dB(A)	0.165 in H2O	41.1 Pa	19.05 g	0.042 lb	Ball	Locked Rotor Sensor	0.8 W	5 V	CSA TUV UL	-10 °C	60 °C	10 mm	3 Wire Leads	6200 RPM	40 mm	40 mm			40000 Hrs

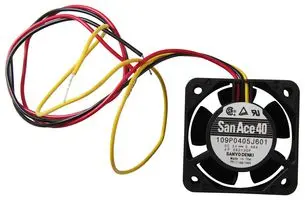

Sanyo Denki America Inc. 109P0405J601	460 mA	Plastic	Plastic	0.277 m³/min		5.5 V	4.5 V	9.9 CFM	Tubeaxial	39 dB(A)	0.396 in H2O	98.6 Pa	45.81 g	0.101 lb	Ball	Speed Sensor (Tach)	2.3 W	5 V	CSA TUV UL	-20 ░C	70 °C	20 mm	3 Wire Leads	9800 RPM	40 mm	40 mm			40000 Hrs
Sanyo Denki America Inc. 109P0405F6D01	0.25 A	Plastic	Plastic	0.182 m³/min		5.5 V	4.5 V	6.5 CFM	Tubeaxial	28 dB	0.181 in H2O	45.1 Pa	45.81 g	0.101 lb	Ball	Locked Rotor Sensor	1.25 W	5 V	CSA TUV UL	-20 ░C	70 °C	20 mm	3 Wire Leads	6500 RPM	40 mm	40 mm
Sanyo Denki America Inc. 109P0405F3013	0.28 A	Plastic	Plastic	0.241 mł/min		5.5 V	4.5 V	8.6 CFM	Tubeaxial	30 dB	0.236 in H2O	58.8 Pa	52.16 g	0.115 lb	Ball	Locked Rotor Protection Speed Sensor (Tach)	1.4 W	5 V	CSA TUV UL	-20 ░C	70 °C		3 Wire Leads	6700 RPM	40 mm	40 mm				28 mm
Sanyo Denki America Inc. 109P0405H7D01	0.28 A	Plastic	Plastic	0.179 mł/min		5.5 V	4.5 V	6.4 CFM	Tubeaxial	28 dB	0.303 in H2O	75.5 Pa			Ball	Locked Rotor Sensor	1.4 W	5 V	CSA TUV UL	-20 ░C	60 °C	15 mm	3 Wire Leads	7700 RPM	40 mm	40 mm	32.21 g	0.071 lb			60 °C	-4 °F
Sanyo Denki America Inc. 109P0405M9D01	110 mA	Plastic	Plastic	0.118 m³/min		5.5 V	4.5 V	4.2 CFM	Tubeaxial	21 dB(A)	0.108 in H2O	27 Pa	19.05 g	0.042 lb	Ball	Locked Rotor Sensor	550 mW	5 V	CSA TUV UL	-10 °C	60 °C	10 mm	3 Wire Leads	5000 RPM	40 mm	40 mm			40000 Hrs
Sanyo Denki America Inc. 109P0405H302	0.68 A	Plastic	Plastic	0.316 m³/min		5.5 V	4.5 V	11.3 CFM	Tubeaxial	37 dB	0.236 in H2O	58.8 Pa	52.16 g	0.115 lb	Ball		3.4 W	5 V	CSA TUV UL	-20 ░C	70 °C		2 Wire Leads	8700 RPM	40 mm	40 mm			40000 Hrs	28 mm

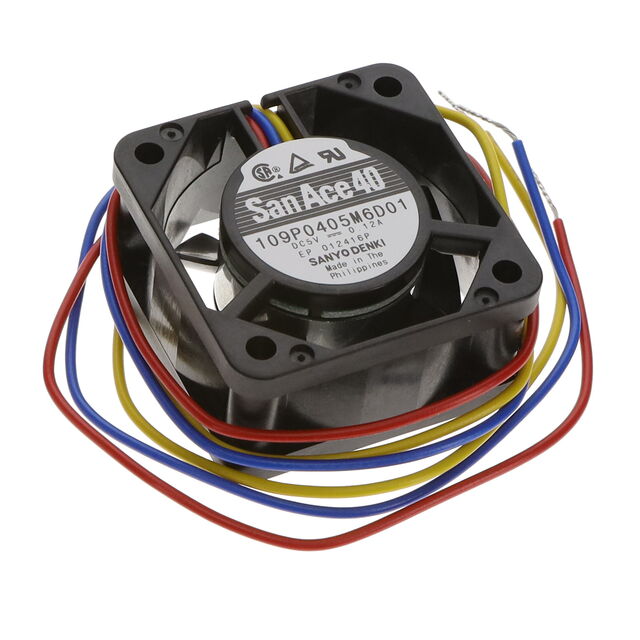

Sanyo Denki America Inc. 109P0405M6D01	120 mA	Plastic	Plastic	0.134 m³/min		5.5 V	4.5 V	4.8 CFM	Tubeaxial	24 dB	0.106 in H2O	26.4 Pa	45.81 g	0.101 lb	Ball	Locked Rotor Sensor	600 mW	5 V	CSA TUV UL	-20 ░C	70 °C	20 mm	3 Wire Leads	5000 RPM	40 mm	40 mm
