1445096 Series

Catalog

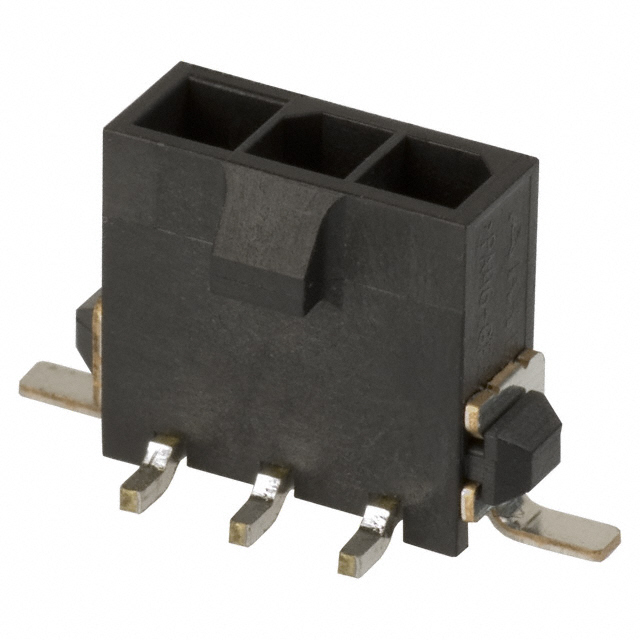

CONN HEADER SMD 3POS 3MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Applications	Insulation Color	Contact Shape	Number of Rows	Pitch - Mating	Pitch - Mating	Insulation Material	Fastening Type	Contact Type	Voltage Rating	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Post	Termination	Shrouding	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Style	Features	Material Flammability Rating	Current Rating (Amps)	Contact Finish - Mating	Number of Positions Loaded	Contact Material	Insulation Height [z]	Insulation Height [z]	Number of Positions
TE Connectivity AMP Connectors 1445096-3	2.54 µm	100 µin	General Purpose	Black	Square	1	3 mm	0.118 in	Nylon Polyamide (PA)	Locking Ramp	Male Pin	250 V	Header	-40 C	105 ░C	Tin-Lead	Solder	Shrouded - 4 Wall	Surface Mount	0.76 Ám	30 Áin	Board to Cable/Wire	Pick and Place Solder Retention	UL94 V-0	Varies by Wire Gauge	Gold	All	Brass	9.25 mm	0.364 in
TE Connectivity AMP Connectors 1445096-6	2.54 µm	100 µin	General Purpose	Black	Square	1	3 mm	0.118 in	Nylon Polyamide (PA)	Locking Ramp	Male Pin	250 V	Header	-40 C	105 ░C	Tin-Lead	Solder	Shrouded - 4 Wall	Surface Mount	0.76 Ám	30 Áin	Board to Cable/Wire	Pick and Place Solder Retention	UL94 V-0	Varies by Wire Gauge	Gold	All	Brass	9.25 mm	0.364 in	6
