EUB0405 Series
Manufacturer: Delta Electronics
Beta
⌘K

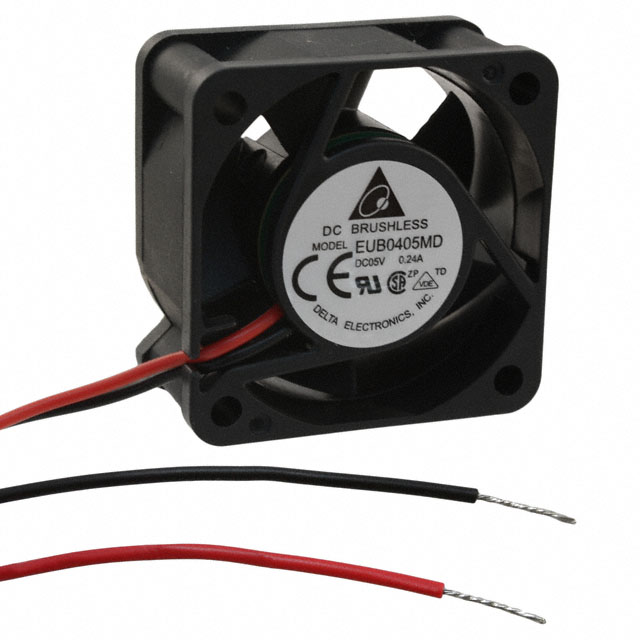

FAN AXIAL 40X20MM 5VDC WIRE
| Part | Material - Frame | Material - Blade | Voltage Range [Max] | Voltage Range [Min] | Current Rating (Amps) | Lifetime @ Temp. | Air Flow | Air Flow | Weight | Weight | Power (Watts) | RPM | Approval Agency | Width [y] | Fan Type | Static Pressure | Static Pressure | Noise | Bearing Type | Voltage - Rated | Operating Temperature [Min] | Operating Temperature [Max] | Size / Dimension [x] | Size / Dimension [z] | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Delta Electronics | Plastic | Plastic | 5.5 V | 4.5 V | 150 mA | 40 °C 50000 Hrs | 0.202 mł/min | 7.2 CFM | 33.11 g | 0.073 lb | 0.75 W | 6300 RPM | CE CSA UL VDE | 20 mm | Tubeaxial | 54.3 Pa | 0.218 in H2O | 24 dB | Superflo | 5 V | -10 °C | 60 °C | 40 mm | 40 mm | 2 Wire Leads |
