717-031 Series
Manufacturer: EDAC Inc.
Beta
⌘K

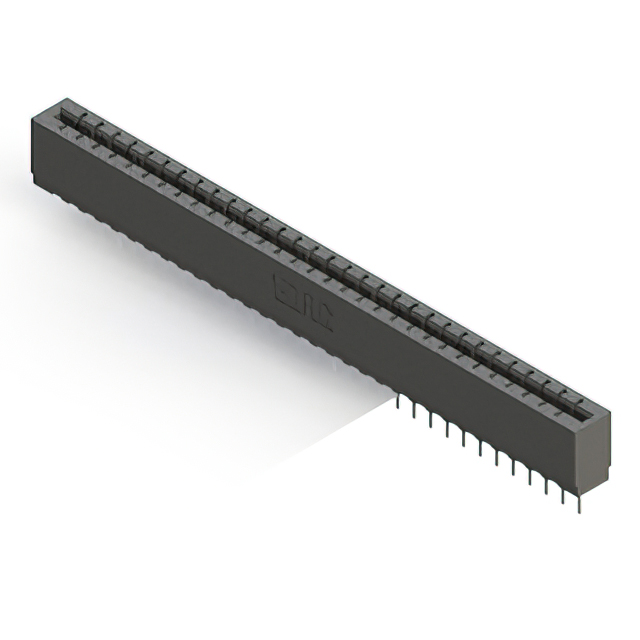

CONN EDGE SGL FMALE 31POS 0.156
| Part | Material - Insulation | Termination Rows | Color | Mounting Type | Gender | Contact Type | Number of Rows | Termination | Number of Positions [custom] | Contact Finish | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Read Out | Card Type | Pitch | Pitch | Number of Positions/Bay/Row [custom] | Contact Finish Thickness | Contact Finish Thickness | Card Thickness [Max] | Card Thickness [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polyester Thermoplastic | 1 | Black | Through Hole | Female | Cantilever | 1 | Press-Fit | 31 | Gold | Copper Alloy | -40 C | 105 ░C | Single | Non Specified - Single Edge | 3.96 mm | 0.156 in | 31 | 30 Áin | 0.76 Ám | 0.07 in 1.78 mm | 0.054 in 1.37 mm |
 EDAC Inc. | Polyester Thermoplastic | 1 | Black | Through Hole | Female | Cantilever | 1 | Press-Fit | 31 | Gold | Copper Alloy | -40 C | 105 ░C | Single | Non Specified - Single Edge | 3.96 mm | 0.156 in | 31 | 30 Áin | 0.76 Ám | 0.07 in 1.78 mm | 0.054 in 1.37 mm |
 EDAC Inc. | Polyester Thermoplastic | 1 | Black | Through Hole | Female | Cantilever | 1 | Press-Fit Wire Wrap | 31 | Gold | Copper Alloy | -40 C | 105 ░C | Single | Non Specified - Single Edge | 3.96 mm | 0.156 in | 31 | 30 Áin | 0.76 Ám | 0.07 in 1.78 mm | 0.054 in 1.37 mm |
 EDAC Inc. | Polyester Thermoplastic | 1 | Black | Through Hole | Female | Cantilever | 1 | Press-Fit Wire Wrap | 31 | Gold | Copper Alloy | -40 C | 105 ░C | Single | Non Specified - Single Edge | 3.96 mm | 0.156 in | 31 | 30 Áin | 0.76 Ám | 0.07 in 1.78 mm | 0.054 in 1.37 mm |
 EDAC Inc. | Polyester Thermoplastic | 1 | Black | Through Hole | Female | Cantilever | 1 | Press-Fit | 31 | Gold | Copper Alloy | -40 C | 105 ░C | Single | Non Specified - Single Edge | 3.96 mm | 0.156 in | 31 | 30 Áin | 0.76 Ám | 0.07 in 1.78 mm | 0.054 in 1.37 mm |
