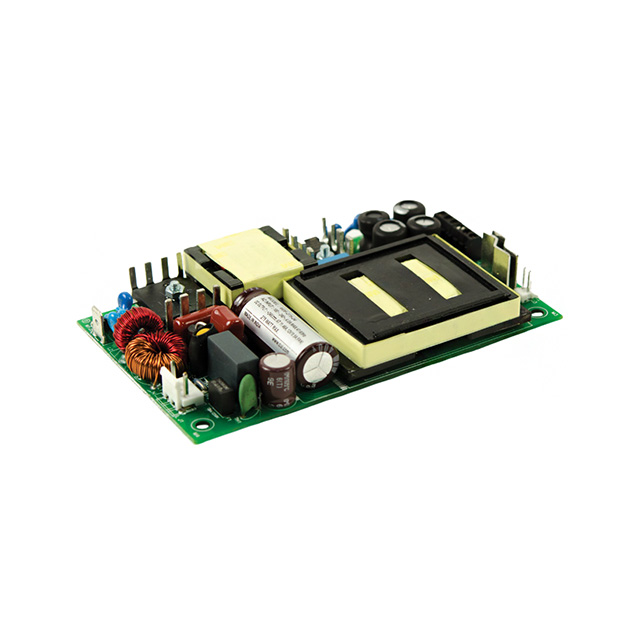

VOF-275 Series
Manufacturer: CUI Inc.
Beta
⌘K
SWITCHING POWER SUPPLIES 275W 58V 4.74A 3X5 OPEN PCB
| Part | Approval Agency | Efficiency | Type | Applications | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Number of Outputs | Features | Mounting Type | Current - Output 1 | Voltage - Input [Min] | Voltage - Input [Max] | Power (Watts) | Standard Number | Voltage - Isolation | Voltage - Output 1 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CUI Inc. | CB Scheme EN FCC IEC SIQ TUV UL | 92 % | Open Frame | ITE (Commercial) | 3 " | 19.1 mm | 0.75 " | 76.2 mm | 127 mm | 5 " | 1 | Adjustable Output PFC Standby Output Universal Input | Chassis Mount | 2.76 A | 80 VAC | 264 VAC | 160 W 275 W | 55024 55032 Class B 60950-1 61000-3-2 61000-3-3 | 3000 V | |
CUI Inc. | CB Scheme EN FCC IEC SIQ TUV UL | 90 % | Open Frame | ITE (Commercial) | 3 " | 19.1 mm | 0.75 " | 76.2 mm | 127 mm | 5 " | 1 | Adjustable Output PFC Standby Output Universal Input | Chassis Mount | 6.67 A | 80 VAC | 264 VAC | 160 W 275 W | 55024 55032 Class B 60950-1 61000-3-2 61000-3-3 | 3000 V | 24 V |
 CUI Inc. | CB Scheme EN FCC IEC SIQ TUV UL | 92 % | Open Frame | ITE (Commercial) | 3 " | 19.1 mm | 0.75 " | 76.2 mm | 127 mm | 5 " | 1 | Adjustable Output PFC Standby Output Universal Input | Chassis Mount | 3.33 A | 80 VAC | 264 VAC | 160 W 275 W | 55024 55032 Class B 60950-1 61000-3-2 61000-3-3 | 3000 V | 48 V |
CUI Inc. | CB Scheme EN FCC IEC SIQ TUV UL | 90 % | Open Frame | ITE (Commercial) | 3 " | 19.1 mm | 0.75 " | 76.2 mm | 127 mm | 5 " | 1 | Adjustable Output PFC Standby Output Universal Input | Chassis Mount | 5.33 A | 80 VAC | 264 VAC | 160 W 275 W | 55024 55032 Class B 60950-1 61000-3-2 61000-3-3 | 3000 V | 30 V |
CUI Inc. | CB Scheme EN FCC IEC SIQ TUV UL | 88 % | Open Frame | ITE (Commercial) | 3 " | 19.1 mm | 0.75 " | 76.2 mm | 127 mm | 5 " | 1 | Adjustable Output PFC Standby Output Universal Input | Chassis Mount | 10.67 A | 80 VAC | 264 VAC | 160 W 275 W | 55024 55032 Class B 60950-1 61000-3-2 61000-3-3 | 3000 V | 15 V |
CUI Inc. | CB Scheme EN FCC IEC SIQ TUV UL | 88 % | Open Frame | ITE (Commercial) | 3 " | 19.1 mm | 0.75 " | 76.2 mm | 127 mm | 5 " | 1 | Adjustable Output Standby Output Universal Input | Chassis Mount | 13.33 A | 80 VAC | 264 VAC | 160 W 275 W | 55024 55032 Class B 60950-1 61000-3-2 61000-3-3 | 3000 V | 12 V |
CUI Inc. | CB Scheme EN FCC IEC SIQ TUV UL | 90 % | Open Frame | ITE (Commercial) | 3 " | 19.1 mm | 0.75 " | 76.2 mm | 127 mm | 5 " | 1 | Adjustable Output PFC Standby Output Universal Input | Chassis Mount | 5.33 A | 80 VAC | 264 VAC | 160 W 275 W | 55024 55032 Class B 60950-1 61000-3-2 61000-3-3 | 3000 V | 30 V |
CUI Inc. | CB Scheme EN FCC IEC SIQ TUV UL | 88 % | Open Frame | ITE (Commercial) | 3 " | 19.1 mm | 0.75 " | 76.2 mm | 127 mm | 5 " | 1 | Adjustable Output PFC Standby Output Universal Input | Chassis Mount | 13.33 A | 80 VAC | 264 VAC | 160 W 275 W | 55024 55032 Class B 60950-1 61000-3-2 61000-3-3 | 3000 V | 12 V |
CUI Inc. | CB Scheme EN FCC IEC SIQ TUV UL | 88 % | Open Frame | ITE (Commercial) | 3 " | 19.1 mm | 0.75 " | 76.2 mm | 127 mm | 5 " | 1 | Adjustable Output PFC Standby Output Universal Input | Chassis Mount | 10.67 A | 80 VAC | 264 VAC | 160 W 275 W | 55024 55032 Class B 60950-1 61000-3-2 61000-3-3 | 3000 V | 15 V |
CUI Inc. | CB Scheme EN FCC IEC SIQ TUV UL | 92 % | Open Frame | ITE (Commercial) | 3 " | 19.1 mm | 0.75 " | 76.2 mm | 127 mm | 5 " | 1 | Adjustable Output Standby Output Universal Input | Chassis Mount | 3.33 A | 80 VAC | 264 VAC | 160 W 275 W | 55024 55032 Class B 60950-1 61000-3-2 61000-3-3 | 3000 V | 48 V |
