207608 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

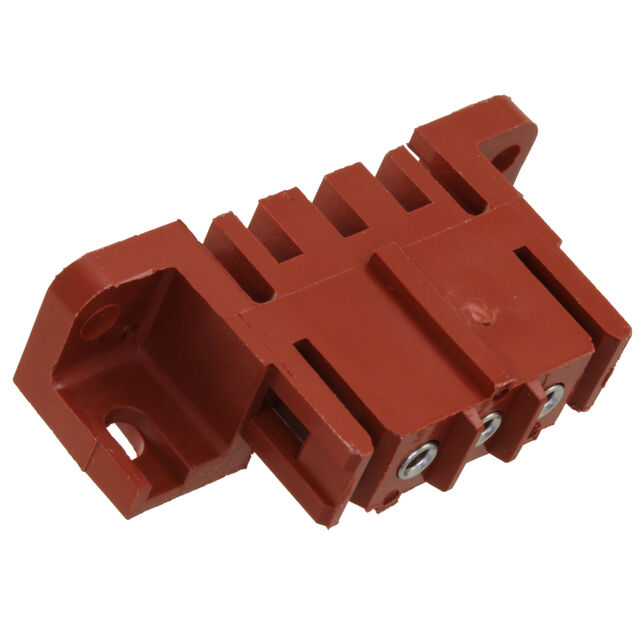

CONN HDR 3POS 0.197 GOLD PCB R/A
| Part | Current Rating (Amps) | Insulation Material | Connector Type | Contact Finish - Mating | Contact Type | Features | Style | Insulation Color | Insulation Height | Insulation Height | Number of Positions Loaded | Pitch - Mating | Pitch - Mating | Material Flammability Rating | Fastening Type | Contact Material | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Voltage Rating | Number of Rows | Termination | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish - Post | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Shape |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 7.5 A | Thermoplastic | Header | Gold | Female Socket | Mounting Flange | Board to Cable/Wire | Red | 0.433 in | 11 mm | All | 5 mm | 0.197 " | UL94 V-0 | Latch Holder | Phosphor Bronze | 150 Áin | 3.81 Ám | 600 V | 1 | Solder | Through Hole Right Angle | 130 °C | -55 °C | Tin | 30 Áin | 0.76 Ám | Circular |
 TE Connectivity Raychem Cable Protection | 7.5 A | Thermoplastic | Header | Female Socket | Mounting Flange | Board to Cable/Wire | Red | 0.433 in | 11 mm | All | 5 mm | 0.197 " | UL94 V-0 | Latch Holder | Phosphor Bronze | 150 Áin | 3.81 Ám | 600 V | 1 | Solder | Through Hole Right Angle | 130 °C | -55 °C | Tin | 150 Áin | 3.81 Ám | Circular |
