ONET4291VA Series

1-Gbps to 4.25-Gbps rate-selectable limiting amplifier

Catalog

1-Gbps to 4.25-Gbps rate-selectable limiting amplifier

Part	Voltage - Supply [Max]	Voltage - Supply [Min]	Current - Supply	Package / Case	Number of Channels	Type	Data Rate	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Current - Bias	Mounting Type	Current - Modulation	Applications	Number of Circuits	-3db Bandwidth	Voltage - Supply Span (Min) [Min]	Voltage - Supply Span (Max) [Max]	Output Type
Texas Instruments ONET4291VARGP	3.6 V	2.9 V	40 mA	20-VFQFN Exposed Pad	1	Laser Diode Driver (Fiber Optic)	4.25 Gbps	20-QFN (4x4)	85 °C	-40 °C	11 mA	Surface Mount	11.5 mA
Texas Instruments ONET4291TAY				Die		Transimpedance Amplifier								Optical Networks
Texas Instruments ONET4291VARGPR	3.6 V	2.9 V	40 mA	20-VFQFN Exposed Pad	1	Laser Diode Driver (Fiber Optic)	4.25 Gbps	20-QFN (4x4)	85 °C	-40 °C	11 mA	Surface Mount	11.5 mA

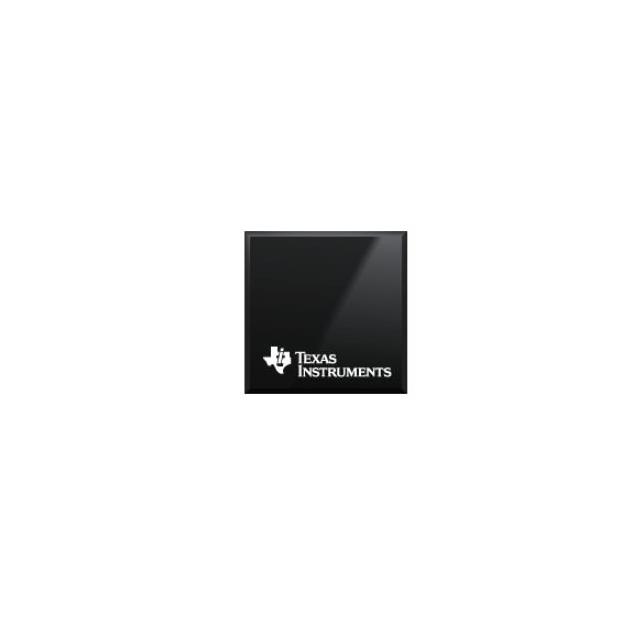

Texas Instruments ONET4291TY						Transimpedance Amplifier		Diesale				Surface Mount		Optical Networks
Texas Instruments ONET4291PARGVT			50 mA	16-VQFN Exposed Pad				16-VQFN (4x4)	85 °C	-40 °C		Surface Mount			1	4.5 GHz	2.9 V	3.6 V	Differential

Catalog

1-Gbps to 4.25-Gbps rate-selectable limiting amplifier

Key Features

• Multirate Operation from 1 Gbps up to 4.25 GbpsLoss-of-Signal Detection (LOS)Two-Wire Digital InterfaceDigitally Selectable LOS ThresholdDigitally Selectable BandwidthDigitally Selectable Output VoltageLow Power ConsumptionInput Offset CancellationCML Data Outputs With On-Chip, 50-Back-Termination to VCCSingle 3.3-V SupplySurface-Mount, Small-Footprint, 4-mm × 4-mm, 16-Terminal QFN PackageAPPLICATIONSMultirate SONET/SDH Transmission Systems4.25-Gbps, 2.125-Gbps, and 1.0625-Gbps Fibre-Channel ReceiversGigabit Ethernet ReceiversMultirate Operation from 1 Gbps up to 4.25 GbpsLoss-of-Signal Detection (LOS)Two-Wire Digital InterfaceDigitally Selectable LOS ThresholdDigitally Selectable BandwidthDigitally Selectable Output VoltageLow Power ConsumptionInput Offset CancellationCML Data Outputs With On-Chip, 50-Back-Termination to VCCSingle 3.3-V SupplySurface-Mount, Small-Footprint, 4-mm × 4-mm, 16-Terminal QFN PackageAPPLICATIONSMultirate SONET/SDH Transmission Systems4.25-Gbps, 2.125-Gbps, and 1.0625-Gbps Fibre-Channel ReceiversGigabit Ethernet Receivers

Description

The ONET4291PA is a versatile, high-speed, rate-selectable limiting amplifier for multiple fiber-optic applications with data rates up to 4.25 Gbps. The device provides a two-wire interface, which allows digital bandwidth selection, digital output amplitude selection, and digital loss of signal threshold adjust. This device provides a gain of about 43 dB, which ensures a fully differential output swing for input signals as low as 5 mVp-p. The ONET4291PA provides loss-of-signal detection with either digital or analog threshold adjust. The part is available in a small-footprint, 4-mm × 4-mm, 16-terminal QFN package. It requires a single 3.3-V supply. This power-efficient, rate-selectable limiting amplifier is characterized for operation from -40°C to 85°C ambient temperature. The ONET4291PA is a versatile, high-speed, rate-selectable limiting amplifier for multiple fiber-optic applications with data rates up to 4.25 Gbps. The device provides a two-wire interface, which allows digital bandwidth selection, digital output amplitude selection, and digital loss of signal threshold adjust. This device provides a gain of about 43 dB, which ensures a fully differential output swing for input signals as low as 5 mVp-p. The ONET4291PA provides loss-of-signal detection with either digital or analog threshold adjust. The part is available in a small-footprint, 4-mm × 4-mm, 16-terminal QFN package. It requires a single 3.3-V supply. This power-efficient, rate-selectable limiting amplifier is characterized for operation from -40°C to 85°C ambient temperature.
