103308 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

CONNECTOR, HEADER, 20 POSITION, 2ROW, 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Type	Style	Shrouding	Contact Material	Contact Length - Mating [x]	Contact Length - Mating [x]	Connector Type	Termination	Material Flammability Rating	Contact Finish - Post	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Features	Insulation Height	Insulation Height	Operating Temperature [Max]	Operating Temperature [Min]	Number of Rows [custom]	Fastening Type	Insulation Color	Number of Positions Loaded	Contact Length - Post	Contact Length - Post	Contact Shape	Pitch - Mating	Pitch - Mating	Mounting Type	Current Rating (Amps)	Number of Positions	Number of Positions [custom]

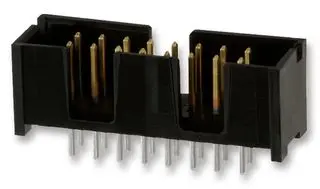

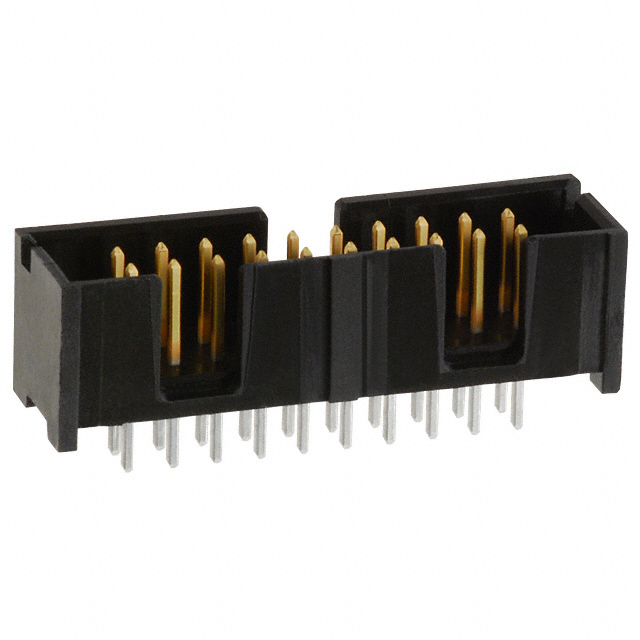

TE Connectivity AMP Connectors 103308-5	2.54 µm	100 µin	Male Pin	Board to Cable/Wire	Shrouded - 4 Wall	Brass	0.24 in	6.1 mm	Header	Solder	UL94 V-0	Tin-Lead	Gold or Gold-Palladium	0.38 µm	15 µin	0.1 in	2.54 mm	Keying Slot	0.388 in	9.86 mm	105 ░C	-65 ░C	2	Push-Pull	Black	All	3.05 mm	0.12 in	Square	0.1 "	2.54 mm	Through Hole	1 A	20

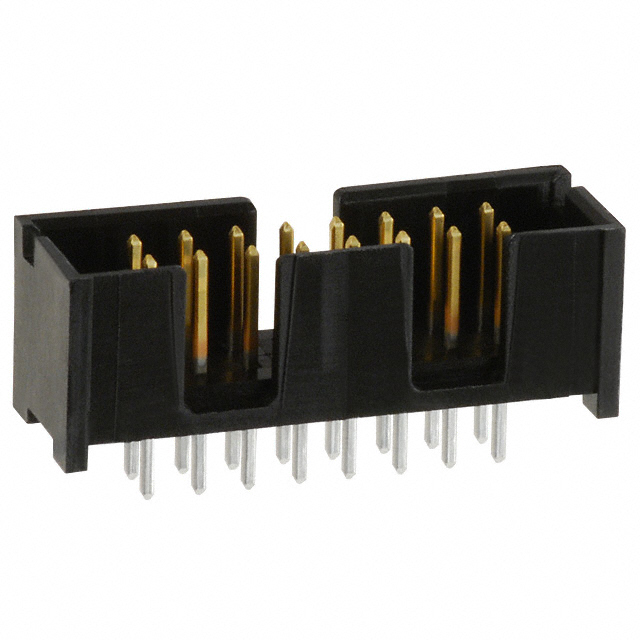

TE Connectivity AMP Connectors 103308-3	2.54 µm	100 µin	Male Pin	Board to Cable/Wire	Shrouded - 4 Wall	Brass	0.24 in	6.1 mm	Header	Solder	UL94 V-0	Tin-Lead	Gold or Gold-Palladium	0.38 µm	15 µin	0.1 in	2.54 mm	Keying Slot	0.388 in	9.86 mm	105 ░C	-65 ░C	2	Push-Pull	Black	All	3.05 mm	0.12 in	Square	0.1 "	2.54 mm	Through Hole	1 A	16
TE Connectivity AMP Connectors 103308-7	2.54 µm	100 µin	Male Pin	Board to Cable/Wire	Shrouded - 4 Wall	Brass	0.24 in	6.1 mm	Header	Solder	UL94 V-0	Tin-Lead	Gold or Gold-Palladium	0.38 µm	15 µin	0.1 in	2.54 mm	Keying Slot	0.388 in	9.86 mm	105 ░C	-65 ░C	2	Push-Pull	Black	All	3.05 mm	0.12 in	Square	0.1 "	2.54 mm	Through Hole	1 A		34
