RIA45 Series
Manufacturer: Endress+Hauser
Beta
⌘K

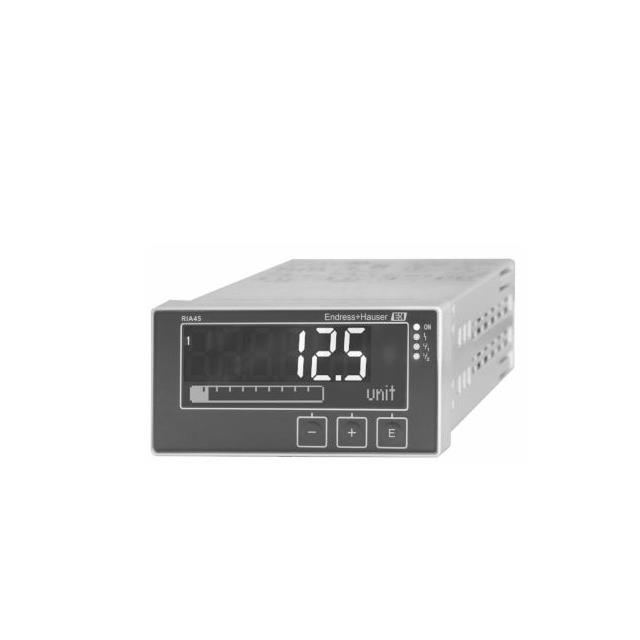

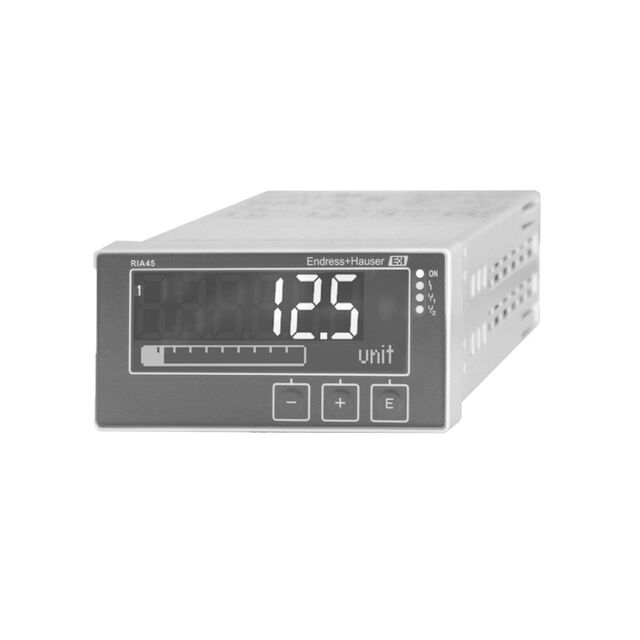

DIGITAL PANEL METERS DISPLAY ATEX II(1)GD [EX IA] IIC PANEL MOUNTING, 48X96MM 1X UNIVERSAL; 1X ANALOG + 2 RELAY
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Termination Style | Display Type | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Ingress Protection | Number of Characters Per Row | Measuring Type | Measuring Range | Voltage - Supply [Min] | Voltage - Supply [Max] | Mounting Type | Output Type | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Endress+Hauser | -20 ░C | 60 °C | Spring Terminal | Backlight Tri Color Characters | 91.95 mm | 44.96 mm | IP65 - Dust Tight Water Resistant NEMA 4 | 5 | Current Process Resistance Thermistor Thermocouple Voltage | Multiple | 20 VAC | 250 VAC | Panel Mount | Analog (2) | Multifunction Meter |
 Endress+Hauser | -20 ░C | 60 °C | Spring Terminal | Backlight Tri Color Characters | 91.95 mm | 44.96 mm | IP65 - Dust Tight Water Resistant NEMA 4 | 5 | Current Process Resistance Thermistor Thermocouple Voltage | Multiple | 24 VAC | 230 VAC | Panel Mount | Analog Relay (2) | Multifunction Meter |
