9260 Series
Manufacturer: Belden Inc.
Beta
⌘K

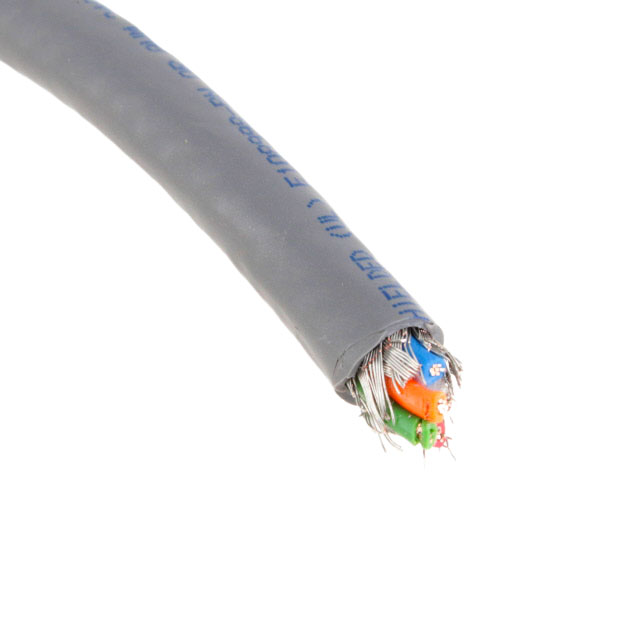

CABLE 6CON 20AWG CHROM SHLD
| Part | Shield Material | Shield Coverage | Ratings | Jacket (Insulation) Material | Length | Length | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Number of Conductors | Wire Gauge | Conductor Strand [custom] | Conductor Strand [custom] | Cable Type | Operating Temperature [Max] | Operating Temperature [Min] | Jacket Color | Voltage | Usage | Conductor Insulation | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Shield Type | Conductor Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Copper Tinned | 85 % | UL Style 2464 | Poly-Vinyl Chloride (PVC) | 152.4 m | 500 ft | 0.305 in | 7.75 mm | 6 | 20 AWG | 28 AWG | 7 | Multi-Conductor | 80 °C | -20 ░C | Chrome | 300 VDC | Audio Control Instrumentation | Poly-Vinyl Chloride (PVC) | 0.813 mm | 0.032 in | Braid | Copper Tinned |
Belden Inc. | Copper Tinned | 85 % | UL Style 2464 | Poly-Vinyl Chloride (PVC) | 304.8 m | 1000 ft | 0.305 in | 7.75 mm | 6 | 20 AWG | 28 AWG | 7 | Multi-Conductor | 80 °C | -20 ░C | Chrome | 300 VDC | Audio Control Instrumentation | Poly-Vinyl Chloride (PVC) | 0.813 mm | 0.032 in | Braid | Copper Tinned |
