2204801 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K
CONN HEADER VERT 8POS 3MM
| Part | Contact Shape | Number of Positions Loaded | Insulation Material | Pitch - Mating | Pitch - Mating | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Mounting Type | Contact Length - Post [x] | Contact Length - Post [x] | Number of Positions | Fastening Type | Number of Rows | Contact Material | Contact Type | Style | Insulation Color | Features | Row Spacing - Mating | Row Spacing - Mating | Voltage Rating | Connector Type | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Insulation Height [z] | Insulation Height [z] | Shrouding |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

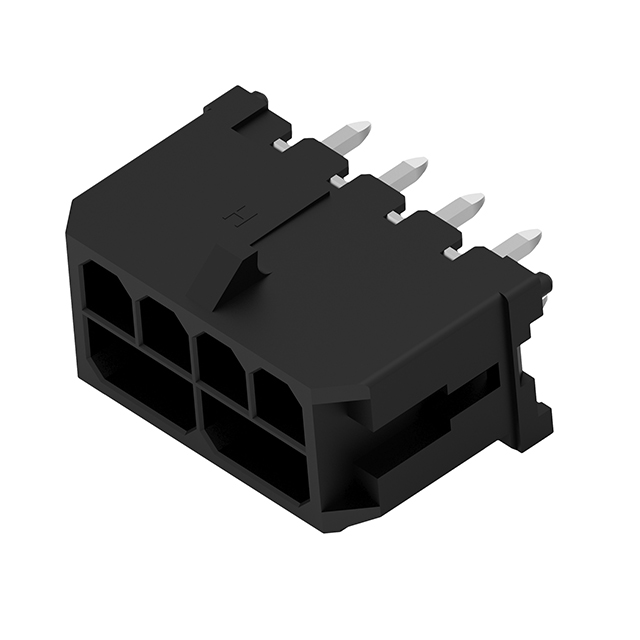

 TE Connectivity Raychem Cable Protection | Square | All | Thermoplastic | 0.118 in | 3 mm | 2.54 çm | 100 çin | Through Hole | 3.18 mm | 0.125 in | 8 | Locking Ramp | 2 | Copper Alloy | Male Pin | Board to Cable/Wire | Black | Board Guide | 3 mm | 0.118 in | 600 V | Header | -40 °C | 105 ░C | Solder | 9.91 mm | 0.39 in | Shrouded - 4 Wall |

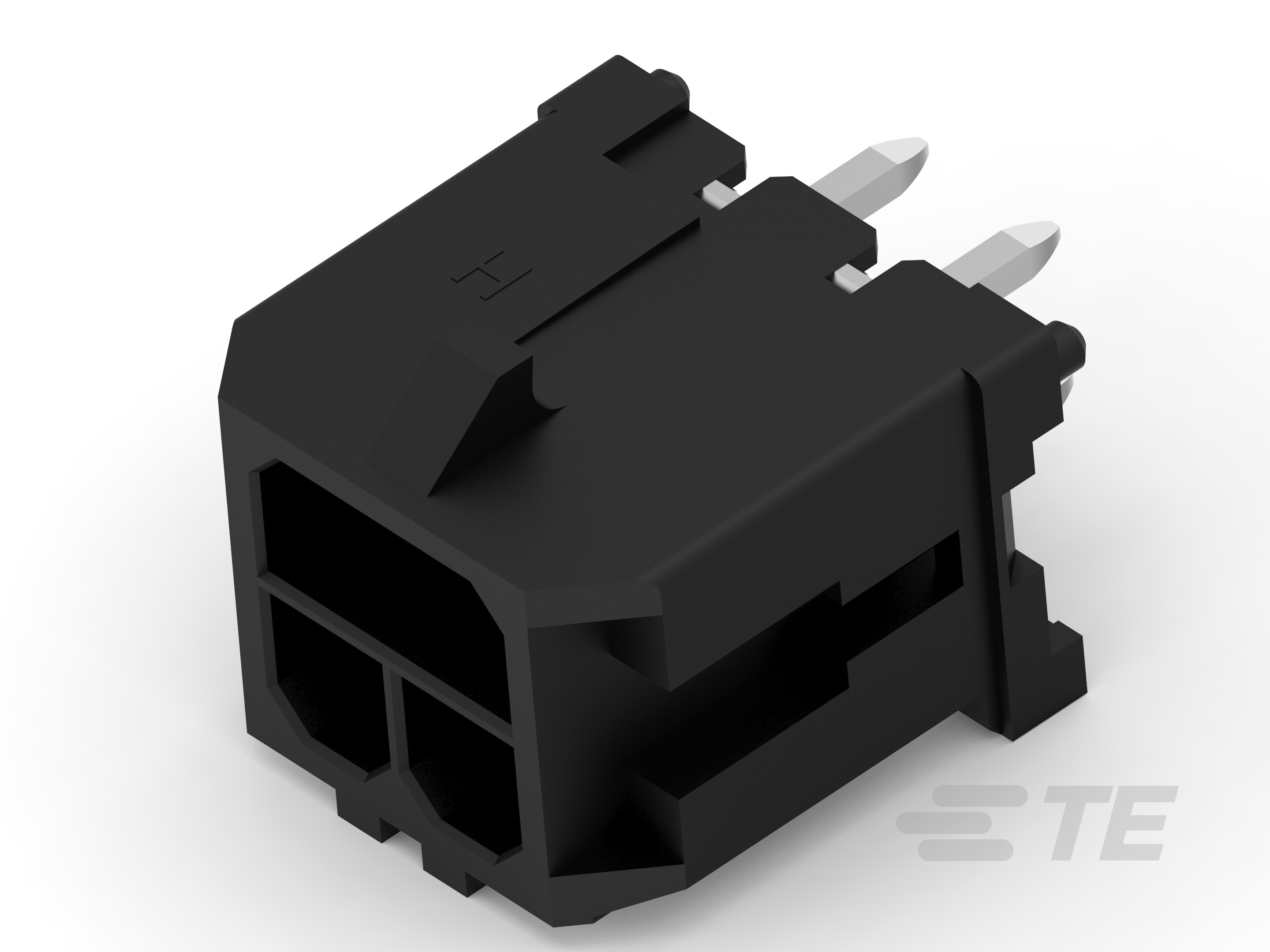

 TE Connectivity Raychem Cable Protection | Square | All | Thermoplastic | 0.118 in | 3 mm | 2.54 çm | 100 çin | Through Hole | 3.18 mm | 0.125 in | 4 | Locking Ramp | 2 | Copper Alloy | Male Pin | Board to Cable/Wire | Black | Board Guide | 3 mm | 0.118 in | 600 V | Header | -40 °C | 105 ░C | Solder | 9.91 mm | 0.39 in | Shrouded - 4 Wall |
