MAHC0001ZXJB Series

HOLDER, MAXI INLINE W COVER BLACK 150MM

Catalog

HOLDER, MAXI INLINE W COVER BLACK 150MM

Part	Termination Style	Mounting Type	Fuse Type	Fuse Size [y]	Fuse Size [x]	Fuse Size [y]	Fuse Size [x]	Fuseholder Type	Voltage	Number of Circuits	Current Rating (Amps)	For Use With/Related Products
LITTELFUSE MAHC0001ZXJB	Wire Leads	Free Hanging (In-Line)	Blade	0.374 "	29.5 mm	9.5 mm	1.161 "	Holder	32 V	1	60 A	Maxi®

Catalog

HOLDER, MAXI INLINE W COVER BLACK 150MM

Description

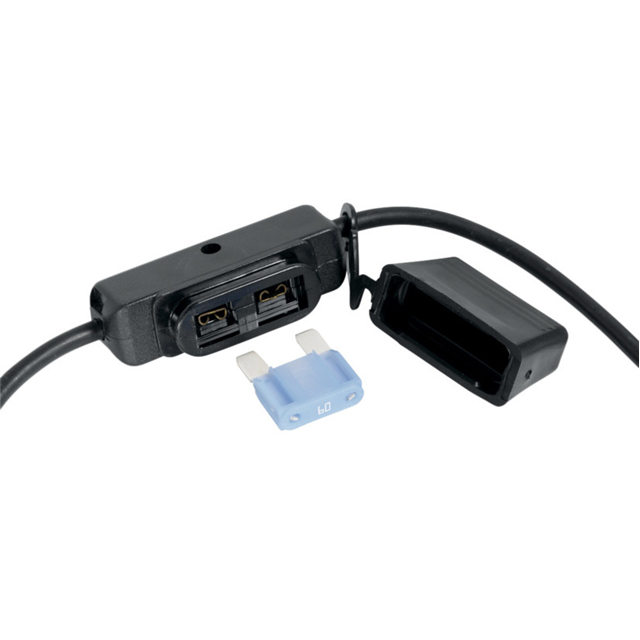

The MAXI® MAH Series 32V In-Line Blade Fuse Holder with 6 Gauge Leads is an easy-to-install bulkhead fuse holder that's ideal for protecting air conditioner, high-amp audio, heater blower motor, and air compressor circuits. The tethered fuse holder cover protects an installed MAXI® blade-style fuse up to 60 amps (sold separately) against harsh underhood conditions, while the center hole in the housing makes it simple to mount the fuse holder to a bulkhead. This MAXI® MAH Series in-line fuse holder (MAHC0001ZXJB) comes with 5.9" (150mm) 6 AWG black UL-3288 leads.
