T21 Series

Catalog

POT 10K OHM 1/4W CARBON LINEAR

Part	Size - Body [diameter]	Size - Body [diameter]	Actuator Type	Temperature Coefficient	Power (Watts)	Power (Watts)	Actuator Length [x]	Actuator Length [x]	Number of Gangs	Taper	Rotation	Tolerance	Bushing Thread	Bushing Thread	Adjustment Type	Number of Turns	Termination Style	Built in Switch	Actuator Diameter [diameter]	Actuator Diameter [diameter]	Resistive Material	Mounting Type	Resistance (Ohms)	Resistance (Ohms)

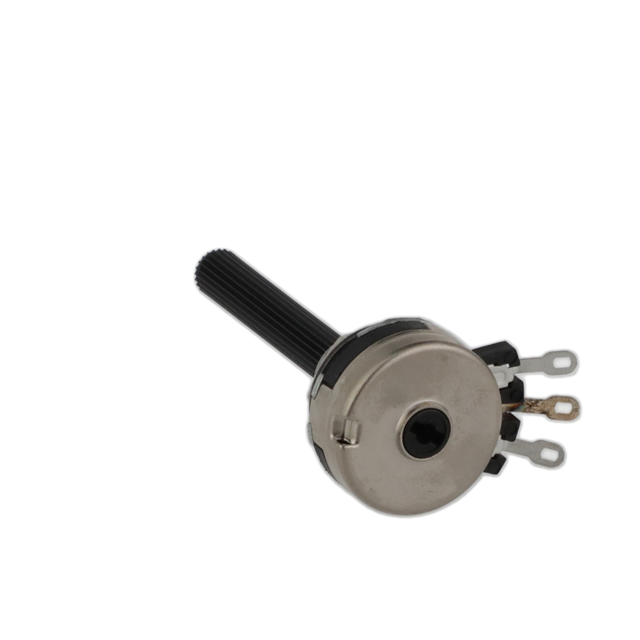

Amphenol Piher Sensing Systems T21YC-P0607-103A2020-TA	21.5 mm	0.846 "	Knurled	300 ppm/°C	0.25 W	0.25 W	1.772 in	45 mm	1	Linear	310 °	20 %	M10	0.75	User Defined	1	Solder Lug	None	6 mm	0.236 in	Carbon	Panel Mount	10k

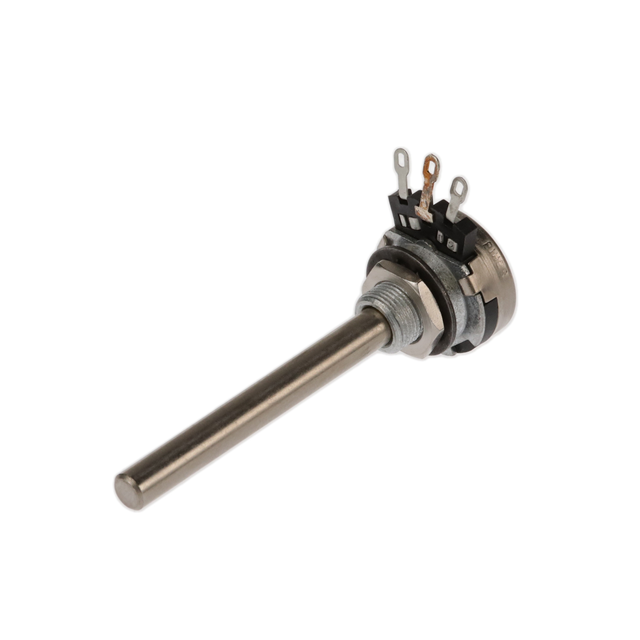

Amphenol Piher Sensing Systems T21AC-M0607-103A2020-TA	21.5 mm	0.846 "	Round	300 ppm/°C	0.25 W	0.25 W	2.362 in	60 mm	1	Linear	310 °	20 %	M10	0.75	User Defined	1	Solder Lug	None	6 mm	0.236 in	Carbon	Panel Mount	10k

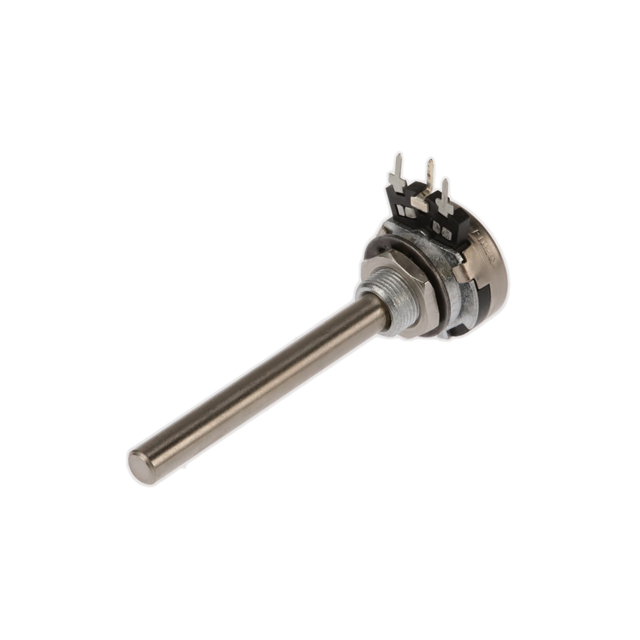

Amphenol Piher Sensing Systems T21AH-M0607-103A2020-TA	21.5 mm	0.846 "	Round	300 ppm/°C	0.25 W	0.25 W	2.362 in	60 mm	1	Linear	310 °	20 %	M10	0.75	Side Adjustment	1	PC Pins	None	6 mm	0.236 in	Carbon	Panel Mount	10k

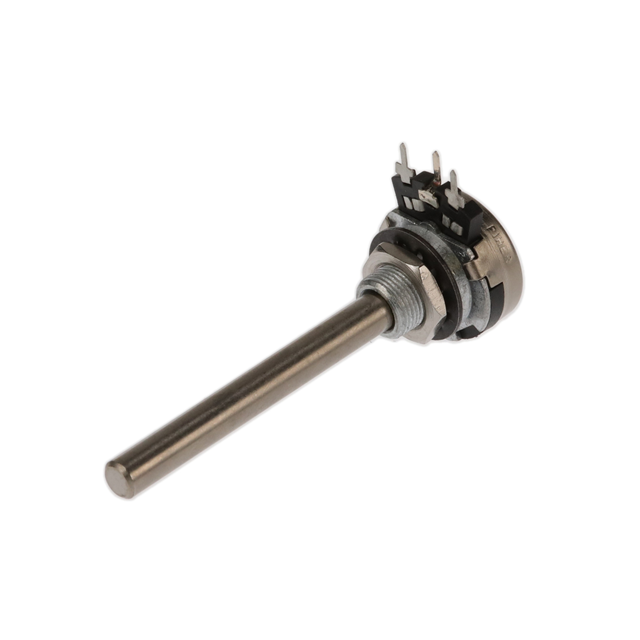

Amphenol Piher Sensing Systems T21AH-M0607-502A2020-TA	21.5 mm	0.846 "	Round	300 ppm/°C	0.25 W	0.25 W	2.362 in	60 mm	1	Linear	310 °	20 %	M10	0.75	Side Adjustment	1	PC Pins	None	6 mm	0.236 in	Carbon	Panel Mount		5 kOhms
