8643 Series
Manufacturer: Belden Inc.
Beta
⌘K

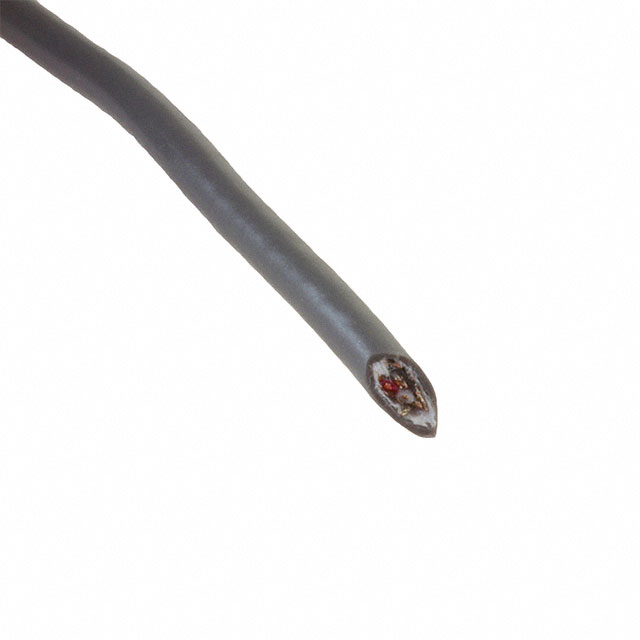

CABLE 3CON 30AWG CHROM SHLD 100'
| Part | Shield Coverage | Shield Material | Shield Type | Wire Gauge | Length [x] | Length [x] | Jacket Color | Conductor Material | Conductor Insulation | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Operating Temperature [Min] | Operating Temperature [Max] | Cable Type | Jacket (Insulation) Material | Usage | Number of Conductors | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 95 % | Copper Tinned | Braid | 30 AWG | 100 ft | 30.5 m | Chrome | Copper Tinned | Polypropylene (PP) | 38 | 7 | 0.014 in | 0.356 mm | 2.44 mm | 0.096 " | -20 ░C | 105 ░C | Multi-Conductor | Poly-Vinyl Chloride (PVC) | Audio Control Instrumentation | 3 | ||
Belden Inc. | 95 % | Copper Tinned | Braid | 30 AWG | Chrome | Copper Tinned | Polypropylene (PP) | 38 | 7 | 0.014 in | 0.356 mm | 2.44 mm | 0.096 " | -20 ░C | 105 ░C | Multi-Conductor | Poly-Vinyl Chloride (PVC) | Audio Control Instrumentation | 3 | 76.2 m | 250 ft |
