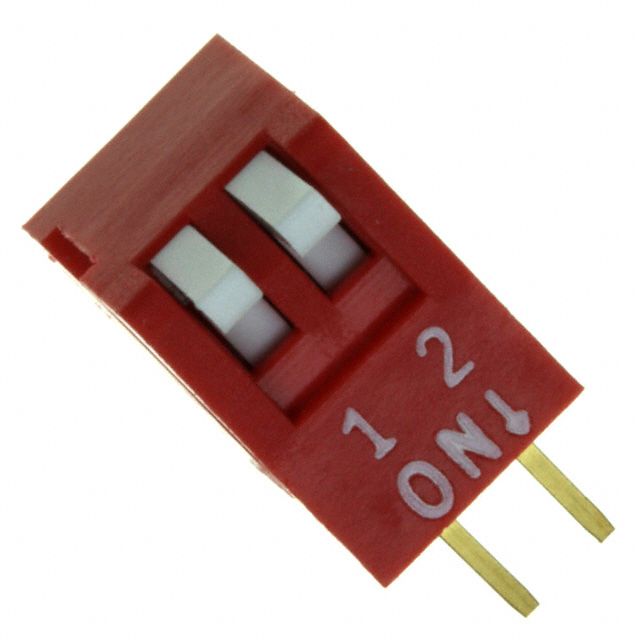

KAP1102 Series
Manufacturer: E-Switch
Beta
⌘K
SWITCH PIANO DIP SPST 0.025A 24V
| Part | Mechanical Life | Electrical Life | Body Material | Length [x] | Length [x] | Actuator Type | Termination Style | Height Above Board | Height Above Board | Contact Material | Contact Finish | Washable | Actuator Level | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions | Pitch | Pitch | Voltage Rating | Mounting Type | Current Rating (Amps) | Circuit |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 E-Switch | 2000 Cycles | 2000 Steps | Polybutylene Terephthalate (PBT) Glass Filled | 6.63 mm | 0.261 in | Piano | PC Pin | 10.2 mm | 0.402 in | Phosphor Bronze | Gold | Raised | 85 °C | -40 C | 2 | 2.54 mm | 0.1 " | 24 VDC | Right Angle Through Hole | 25 mA | SPST |
