13F-641 Series
Manufacturer: Yuan Dean
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K

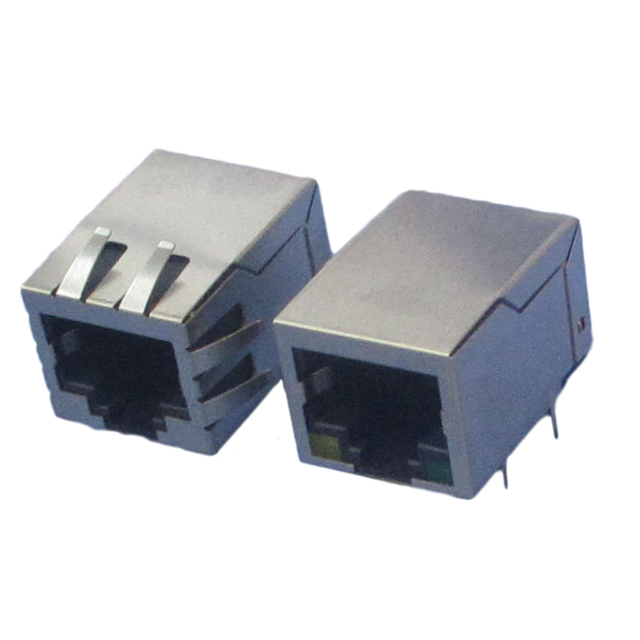

CONN RJ45 JACK W/MAG
| Part | Contact Finish | Height Above Board | LED Color | Orientation Angle | Orientation Direction | Number of Cores per Jack | Tab Direction | Shielding | Termination | Connector Type | Number of Rows | Mounting Type | Number of Ports | Features | Contact Material | Applications | Operating Temperature (Max) | Operating Temperature (Min) | Shield Material | Contact Finish Thickness | Housing Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Yuan Dean | Gold | 0.545 in | Green - Green | 90 ° | Right | 4 | Down | EMI Finger Shielded | Solder | Jack | 1 | Through Hole | 1 | Solder Retention | Phosphor Bronze | 10/100 Base-T AutoMDIX | 70 °C | 0 °C | Brass Nickel Coated | 6 µin | Glass Filled Nylon PA Polyamide |
